Related Manuals for Oontz Angle 3 Pro
Summary of Contents for Oontz Angle 3 Pro

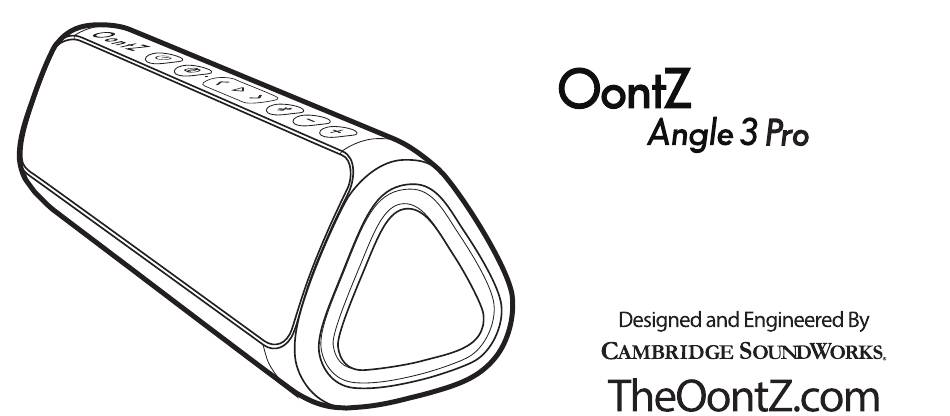

- Page 1 User Guide The Waterproof Bluetooth Speaker Incredible Sound, Powerful Volume, 100 Foot Wireless Bluetooth Range OontZ App for the OontZ Angle 3 Pro Control the OontZ Angle 3 Pro Advanced Features from your iPhone or Smartphone...
- Page 2 In the Package User Guide USB Type C Charging Cable 3.5mm Stereo Audio Cable...
-
Page 3: Table Of Contents
7 - 10 IPX7 Water Resistance Talk to Siri To Play with Non-Bluetooth Devices Use a 3.5mm Stereo Audio Cable OontZ Wireless Dual Stereo - Connect Two OontZ Angle 3 Pro Speakers Together 14 - 18 The OontZ App 19 - 27... -
Page 4: Buttons, Built-In Mic, Lights, And Connectors
Buttons & Built-in Mic Bluetooth Built-in Mic Play/Pause Volume Up (Dual Function) Power For use with Siri Volume Down Source Track Track Switch between Forward Back Aux In and Bluetooth Important - The volume control on your device and the speaker work independently of each other. To play the speaker at the loudest volume, set the volume on your device to maximum and raise the volume on the speaker to maximum. - Page 5 - Lit Green when connected to OontZ app on iPhone or Smartphone - With a second OontZ Angle 3 Pro speaker (sold separately) you can wirelessly connect both speakers together to play with OontZ Wireless Dual Stereo. - For OontZ Wireless Dual Stereo instructions please see page 14.
- Page 6 Connectors Connectors under the Rubber Flap USB Type C - To access the connectors open the Charging rubber flap AUX IN Jack Connector - Pull the tab from the top, it is a snug fit as part of the waterproofing Closing Rubber Flap - Align the Rubber Flap directly over the connector bay.
-
Page 7: Battery Features And Charging The Battery
Power Saving Feature - When playing from battery power the OontZ Angle 3 Pro will turn off after 30 minutes of not playing audio to conserve the battery charge. * - When plugged into a charging source the OontZ Angle 3 Pro will remain on until you turn the power off. - Page 8 Charging Time - Up to 3 hours to fully charge a low battery. Important: When the OontZ Angle 3 Pro is plugged in to a charging source with the USB Type C Charging Cable, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock.
-
Page 9: Turning On And Off
- Press and Release the Power Button - Solid Blue your device has will turn Red for 3 seconds then - Power Button Light connected with the OontZ Angle 3 turn off Pro and is ready to play - Bluetooth Button Light... - Page 10 3 seconds. - The Blue Light will begin flashing and the OontZ Angle 3 Pro is ready for the next device to pair and connect. *Exception: certain devices may not automatically reconnect. When connected to an Amazon Echo device it will not automatically reconnect.
-
Page 11: Pair & Connect With Your Device
- The Bluetooth Button Light will turn solid blue and there will be a quiet chime - You can now play your audio wirelessly to your OontZ Angle 3 Pro Note: Your Smartphone or Tablet instructions may vary Important - The volume control on your device and the speaker work independently of each other. To play the speaker at the loudest volume, set the volume on your device to maximum and raise the volume on the speaker to maximum. - Page 12 - Select the 'OontZ_Angle 3 Pro xxx' (xxx: 3 characters unique to your speaker) when it appears in the list of 'Available Speakers' - Alexa will announce: "Connected to OontZ_Angle 3 Pro xxx" To connect the next time, turn on the OontZ Angle 3 Pro and say "Alexa, connect my speaker" or "Alexa, pair" Page 9...
- Page 13 - or say "Alexa, disconnect my speaker" and the OontZ Angle 3 Pro will automatically turn off after 30 minutes. - When you want to connect and play to the speaker again turn on the OontZ Angle 3 Pro and say "Alexa, connect my speaker"...
-
Page 14: Ipx7 Water Resistance
Perfect for taking to the lake, the beach, listening by the pool, listening in the shower IPX7 means the OontZ Angle 3 Pro is WaterProof and can handle water spray or being splashed and can handle being partially or fully submerged in water up to a maximum of 3 feet deep, for up to a maximum of 30 minutes The rubber flap needs to be closed for the speaker to be waterproof and dustproof. -
Page 15: Talk To Siri
OontZ Angle 3 Pro - Wait for about two seconds until you hear a "chime" - After the "chime" talk to Siri through the mic on the OontZ Angle 3 Pro - The response from Siri will then play through the... -
Page 16: To Play With Non-Bluetooth Devices Use A 3.5Mm Stereo Audio Cable
- You are now ready to play. Important: The Bluetooth on the OontZ Angle 3 Pro is disabled when the Source Button is pressed. To switch back to Bluetooth press the Source Button and the OontZ Angle 3 Pro allows the last device it was connected to automatically reconnect with the speaker and that device is within range. -
Page 17: Oontz Wireless Dual Stereo - Connect Two Oontz Angle 3 Pro Speakers Together
OontZ Wireless Dual Stereo - Connect two OontZ Angle 3 Pro speakers together Play your music wirelessly through both speakers up to 100 feet apart Bluetooth Left Channel - Right Channel for playing music for stereo separation Audio Cable for playing the... - Page 18 Connecting two OontZ Angle 3 Pro speakers together for Left Channel - Right Channel You can also us the OontZ app to connect two OontZ Angle 3 Pro speakers together - See page 22 for instructions on using the OontZ app –...
- Page 19 Two OontZ Angle 3 Pro Speakers connected for Left Channel - Right Channel Play Control Speaker Second Speaker Left Channel - Right Channel Lit White Lit Blue Lit White Blue Light OFF – Use the buttons on the Play Control Speaker for play/pause, track back, track forward, answer and end phone calls.
- Page 20 Changing to Dual Stereo from Left Channel - Right Channel Use Dual Stereo when placing the two speakers in different areas, and both speakers will play in full stereo. – To set both speakers for Dual Stereo they must first be connected together for Left Channel - Right Channel (see page 15). –...
- Page 21 Playing the audio from a video in OontZ Wireless Dual Stereo –To play the audio from a video or TV in OontZ Wireless Dual Stereo you will need to connect the Play Control Speaker to your device or TV using a the 3.5mm Stereo Audio Cable, allowing the audio and video to play in sync with each other. If the Play Control Speaker is connected over Bluetooth to your device or TV there will be a delay in the audio playback from a video.
-
Page 22: The Oontz App
EQ - Adjust the Treble and Bass levels Volume Control - With two OontZ Angle 3 Pro speakers in OontZ Wireless Dual Stereo sync the volume to control both speakers together or independently control the volume on each OontZ Angle 3 Pro speaker... - Page 23 OontZ Angle 3 Pro icon is Grey - Press the Grey speaker icon on the app to enable the OontZ app with the OontZ Angle 3 Pro - The OontZ app will be enabled with your OontZ Angle 3 Pro in a few seconds...
- Page 24 Using the OontZ app for EQ and Volume Control Select the Menu in the upper left hand corner of the app - Select ‘EQ’ from the menu to access the speaker Equalizer screen - Select ‘Volume Control’ from the menu to access the Volume Control screen...
- Page 25 Blue. This speaker will serve as the Play Control Speaker. – Enable the OontZ app with the OontZ Angle 3 Pro speaker. When the OontZ app is enabled the Play/Pause button Light on the OontZ Angle 3 Pro will be lit solid Green.
- Page 26 Playing the audio from a video in OontZ Wireless Dual Stereo – To play the audio from a video or TV in OontZ Wireless Dual Stereo you will need to connect the Play Control Speaker to your device or TV using a the 3.5mm Stereo Audio Cable, allowing the audio and video to play in sync with each other. If the Play Control Speaker is connected over Bluetooth to your device or TV there will be a delay in the audio playback from a video.
- Page 27 Using the OontZ app for OontZ Wireless Dual Stereo Use Dual Stereo when placing the two Use Left Channel - Right Channel for speakers in different areas, and both incredible left and right stereo seperation. speakers will play in full stereo.
- Page 28 ‘Audio Source’ from the menu. Press “Bluetooth” to change the audio Press “Aux In” to change the audio source for the OontZ Angle 3 Pro to source for the OontZ Angle 3 Pro to Bluetooth. The last device connected...
- Page 29 Speaker screen Menu screen - Speaker icon is Blue - the OontZ app is already enabled with this speaker - Speaker icon is Grey - press and the OontZ app will be enabled with this speaker. The Play/Pause Button Light on the OontZ Angle 3 Pro will be lit solid Green to indicate the OontZ app is enabled with this speaker.
- Page 30 ‘Support’ from the menu to access the Support screen. Press ‘User Guide’ to display the The firmware version of the OontZ Angle 3 Pro is latest version of the online user shown under ‘Current Firmware Version’.
-
Page 31: Reset Function
Reset Function Step 1: Remove the USB Type C Charging Cable and 3.5mm Stereo Audio cable, if connected. Step 2: With the OontZ Angle 3 Pro on, press the Power button and Volume together and release. The speaker will then turn off. -
Page 32: Contacting Customer Support
Customer Support If you have a question about your OontZ Angle 3 Pro or experience an issue with the speaker, our Customer Support Team wants to assist you. For online troubleshooting tips please visit: TheOontZ.com/troubleshooting and select the OontZ Angle 3 Pro For latest version of this manual please visit: TheOontZ.com/pages/manuals... -
Page 33: Safety And Precautions
Safety and Precautions When the OontZ Angle 3 Pro speaker is plugged in to a charging source with the USB Type C Charging Cable, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock. - Page 34 Safety and Precautions (continued) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 36 • Listen All Day with Playtime up to 8 hours • Pairs with a single button to one or two OontZ Angle 3 Pro speakers • Perfect For Any Activity Available at TheOontZ.com...
Need help?
Do you have a question about the Angle 3 Pro and is the answer not in the manual?
Questions and answers
the volume will not increase enough to hear although the battery is fully charged
The volume on the OontZ Angle 3 Pro may not be increasing enough to hear because the USB Power Bank is in use. When the speaker is using power from a USB Power Bank, it reduces volume to preserve the remaining battery.
This answer is automatically generated
Trouble getting connected to IPhone. Will connect for a moment and then blue light goes off and on my phone says Not Connected. Please help
To fix the connection issue between your OontZ Angle 3 Pro and iPhone, follow these steps:
1. Move Closer – Ensure your iPhone is within 100 unobstructed feet of the speaker.
2. Pair and Connect Again – If there is still an issue, move your iPhone closer to the speaker and try pairing it again.
3. Use the OontZ App – Turn on your OontZ Angle 3 Pro, launch the OontZ app, and follow these steps:
- Open the Menu and select ‘Speakers’.
- If the speaker icon is grey, press it to enable the app.
- Wait a few seconds until the icon turns blue and the Play/Pause Button Light turns solid green.
If these steps do not resolve the issue, try disconnecting and reconnecting the speaker.
This answer is automatically generated
we have a Bose Solo II in use with a 2017 Samsung smart tv. Can we use the Oontz angle pro at the same time
The OontZ Angle 3 Pro Soundbar can only be connected to one Bluetooth device at a time. Therefore, it cannot be used simultaneously with both a Bose Solo II and a 2017 Samsung smart TV via Bluetooth.
This answer is automatically generated
Google Play says Oontz App will not work with Pixel 7a. Soluton?
