Summary of Contents for Oontz ANGLE 3 PLUS

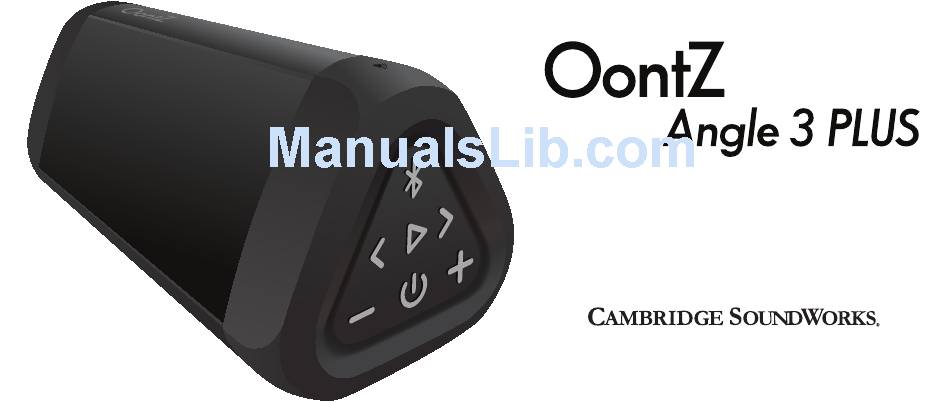

- Page 1 Ultra-Portable Bluetooth Speaker Quick Start Guide Designed and Engineered By TheOontZ.com...
-
Page 2: Table Of Contents
10 - 11 Playing From Non-Bluetooth Audio Source Devices Using the 3.5mm Audio Cable IPX5 Water Resistant Wireless Hands Free Personal Speakerphone Troubleshooting 15 - 19 Resetting Your OontZ Angle 3 PLUS Customer Support Safety and Precautions 21 - 22... -
Page 3: In The Package
In the Package Quick Start Guide Micro USB Charging Cable 3.5mm Audio Cable Note: The Micro USB Charging Cable and the 3.5mm Audio Cable are packed below the cardboard insert in the box. Slide out the cardboard insert to locate the cables. Page 1... -
Page 4: Play Controls
Note: - Make sure the volume level is set high on your audio source device. The volume on the OontZ Angle 3 PLUS and your audio source device both need to be set to the highest level for the loudest volume. The volume controls on your audio source device and the speaker work independently of each other. -
Page 5: Lights And Connectors
Lights and Connectors Red Light when charging: - slowly flashing Red charging - solid Red fully charged Built-in Mic for Speakerphone Rubber Flap pull gently from the top Blue Light when speaker is on: AUX IN Jack - flashing Blue speaker is in pairing mode located under rubber flap - solid Blue speaker is connected Micro USB Charging Connector... -
Page 6: Charging The Battery
Charging the Battery Red Light when charging: - slowly flashing Red indicates battery is charging The rechargeable battery comes with a partial charge and the - solid Red indicates battery is fully charged speaker is ready to play. For maximum playtime, To charge the battery: fully charge the battery. -
Page 7: Charging The Battery
Insert the larger end of the Micro USB charging cable into either a USB wall charger for a Smartphone or iPhone (a USB wall charger that is 5V 1.0A up to 5V 2.4A maximum) or a USB port on your laptop/computer to charge the OontZ Angle 3 PLUS battery. Page 5... -
Page 8: Battery Features
Battery Features You can play the OontZ Angle 3 PLUS while it is charging. Power Saving Feature - When playing from battery power the OontZ Low Charge Remaining Angle 3 PLUS will turn off after 15 minutes of not When the battery charge has less playing audio to conserve the battery charge. -
Page 9: Turning On And Off
Turning On and Off Turn ON Blue Light Press and Release the Power Button - Blue Light will turn on Flashing Blue indicates the speaker is on and in pairing mode Solid Blue indicates the speaker is on and connected to a source device and ready to play Turn OFF Press and Hold Down the Power Button Power Button... - Page 10 Pair & Connect -- Step 1 - Make sure your OontZ Angle 3 PLUS battery has a sufficient charge, it is not able to connect when the charge is too low - Your audio source device needs to be within 33 unobstructed feet of the OontZ Angle 3 PLUS Turn ON your OontZ Angle 3 PLUS The Blue Light will turn on.
-
Page 11: Pair & Connect -- Step 2
Note: Your Smartphone or Tablet instructions may vary Important: Make sure the volume level is set high on your audio source device. The volume on the OontZ Angle 3 PLUS and your audio source device both need to be set to the highest level for the loudest volume. The volume controls on your audio source device and the speaker work independently of each other. -
Page 12: From Your Amazon Echo Dot
- Select your Amazon Echo Dot under ‘Devices’ by pressing it - Press ‘Bluetooth’ - Press ‘Pair a New Device’. In a few seconds the ‘OontZ Angle 3 PLUS’ will appear in the list of ‘Available Speakers’ - Select ‘OontZ Angle 3 PLUS ‘... - Page 13 Amazon Echo Dot, without having the battery becoming drained. Or, 2) Turning the OontZ Angle 3 PLUS off when you are done listening. You can turn the OontZ Angle 3 PLUS off...
-
Page 14: Playing From Non-Bluetooth Audio Source Devices Using The 3.5Mm Audio Cable
You are now ready to play. Note: The Bluetooth on the OontZ Angle 3 PLUS is disabled when the 3.5mm audio cable is connected to the speaker. You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth audio source device. -
Page 15: Ipx5 Water Resistant
IPX5 rating - The OontZ Angle 3 PLUS can resist gentle water spray & splash but cannot be partially or fully submerged or left in a wet environment for an extended period of time, any of which could cause unrepairable damage to the speaker Note: The rubber flap needs to be closed to keep the speaker water resistant. -
Page 16: Wireless Hands Free Personal Speakerphone
Wireless Hands Free Personal Speakerphone The Wireless Hands Free Personal Speakerphone feature works for calls with Smartphones and iPhones only, connected over Bluetooth. Bluetooth Button To answer an Incoming Call / To End a Call (Dual Function) Press and Release the Bluetooth Button To Reject an Incoming Call Press and Hold Down the... -
Page 17: Troubleshooting
• Your source device may be out of range. Move it closer to within 30 unobstructed feet of your speaker. • Check the Blue Light to make sure it is flashing. If it is solid blue the OontZ Angle 3 PLUS is already connected to another source device. The OontZ Angle 3 PLUS can be connected to one source device at a time. - Page 18 -- For iPhone, iPad, iPod • Turn off the OontZ Angle 3 PLUS speaker. Go to the Bluetooth device list on your iPhone, iPad or iPod and check if the OontZ Angle 3 PLUS is listed. If it listed press the icon next to the OontZ Angle 3 PLUS and then forget this device, twice. Restart your iPhone, iPad or iPod. Next reset the OontZ Angle 3 PLUS, following the instructions on page 20.
- Page 19 -- For Windows systems • Turn off the OontZ Angle 3 PLUS speaker. Please go to the Bluetooth device list and if the OontZ Angle 3 PLUS is listed please remove it. With the OontZ Angle 3 PLUS removed or if was not listed, restart your Computer. Next reset the OontZ Angle 3 PLUS, following the instructions on page 20.
- Page 20 No audio playing from the OontZ Angle 3 Plus when connected with the 3.5mm audio cable • Make sure the 3.5mm audio cable is fully inserted into the OontZ Angle 3 PLUS and Device. Some devices have cases that prevent a proper fit and need to be removed to connect.
-
Page 21: Troubleshooting
If you're having trouble trying to connect your Amazon Echo Dot to your OontZ Angle 3 PLUS • Make sure that the OontZ Angle 3 PLUS is not connected to any other audio source device. If the blue light is solid you will need to disconnect the currently paired audio source device (see page 8) •... -
Page 22: Resetting Your Oontz Angle 3 Plus
Resetting Your OontZ Angle 3 PLUS Step 1: Remove the Micro USB charging cable and 3.5mm Audio cable, if connected Step 2: Press and Release the Power Button Step 3: Insert either a toothpick or straightened paper clip into the AUX IN jack until it makes contact with the micro switch. -
Page 23: Customer Support
Customer Support If you have any issues with your OontZ Angle 3 PLUS, we want to assist you. Please contact us by visiting: TheOontZ.com/support and fill out our customer support form. Safety and Precautions 1. Follow all instructions – All operating and use instructions should be followed. - Page 24 Safety and Precautions (continued) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
