Summary of Contents for Oontz Angle 3 Shower Plus Edition

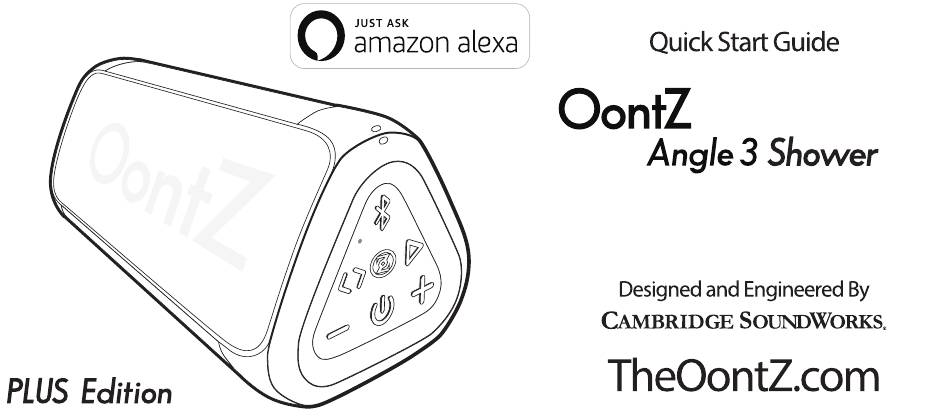

- Page 1 Waterproof Portable Bluetooth Speaker...
- Page 2 In the Package Quick-Start Guide Micro USB Charging Cable Lanyard Note: The cable and lanyard are packed below the insert in the box. Slide out the insert to locate them.
-
Page 3: Table Of Contents
Turning On and Off Pair & Connect with Your Device 9 - 10 Using the OontZ app for Alexa 11-14 Using the OontZ app for Speaker Updates 15-16 Amazon Alexa App IPX7 Water Resistance Talk to Siri Wireless Hands Free Personal Speakerphone To Play with Non-Bluetooth Devices Use a 3.5mm Stereo Audio Cable... -
Page 4: Buttons, Lights, Connectors And Built-In Mic
Buttons Press-to-Talk Press and Release to Bluetooth (Dual Function) activate Alexa Play/Pause Track Forward and Track Back Press and Release to go to the next Press and Release to Pause/Play track. Hold for 1 second and Release to go to previous track Volume Up Volume Down Power... - Page 5 Lights Blue Light lit when speaker is on: - Flashing Blue speaker is in Bluetooth pairing mode - Solid Blue speaker is connected - Blue Light will turn to Solid Green when a 3.5mm audio cable is plugged into the AUX IN Jack Red Light lit when charging: - Slowly flashing Red battery is charging...
- Page 6 Connectors & Built-in Mic Built-in Mic for Alexa, Siri and Speakerphone AUX IN Jack Micro USB Charging Connector Rubber Flap IMPORTANT: - covers connectors The rubber flap needs to be closed before - pull gently from the top to access the speaker is exposed to water.
-
Page 7: Attaching The Lanyard
Attaching the Lanyard - Slide the smaller lanyard - Slide the larger lanyard loop - Pull the larger lanyard loop loop through one of the through the smaller lanyard loop completely through the lanyard attachment holes at that has passed though the other smaller lanyard loop to fasten the top of the speaker attachment hole... -
Page 8: Battery Features And Charging The Battery
* - When the battery charge has less than 15% - When plugged into a charging source the OontZ Angle 3 Shower - Plus remaining the Red Light will begin flashing rapidly. Edition will remain on until you turn the power off. - Page 9 (see illustrations on page 7). Charging Time: - Up to 5 hours to fully charge Important: When the OontZ Angle 3 Shower - PLUS Edition speaker is a low battery. plugged in to a charging source with the Micro USB charging cable, never Page 6 use the speaker in the shower, bath, or near water, to prevent risk of electric shock.
- Page 10 Insert the larger end of the Micro USB charging cable into a USB wall charger for a Smartphone or iPhone (USB wall charger* that is 5V 1.0A up to 5V 2.4A maximum), or a USB port on your laptop/computer to charge the OontZ Angle 3 Shower - PLUS Edition battery. Page 7 Only use a USB wall charger that is UL listed.
-
Page 11: Turning On And Off
Power Button - Flashing Blue The speaker is in pairing mode - Solid Blue Your device has connected with the OontZ Angle 3 Shower - PLUS Edition and is ready to Red Light will turn play on for 3 seconds and then turn off... - Page 12 - To disconnect the current device, press and hold down the Bluetooth button for 5 seconds. - The Blue Light will begin flashing and the OontZ Angle 3 Shower - PLUS Edition is ready for the next device to pair and connect.
-
Page 13: Pair & Connect With Your Device
- The Blue Light will turn solid blue and there will be a quiet chime - You can now play your audio wirelessly to your - You can now play your audio wirelessly to your OontZ Angle 3 Shower - OontZ Angle 3 Shower - PLUS Edition... -
Page 14: Using The Oontz App For Alexa
Using the OontZ App for Alexa To Talk to Amazon Alexa Download the OontZ App from the Apple App Store® or Google Play ™ Store 1) Open the Apple App Store® or Google Play™ Store on your iPhone or Smartphone running the Android operating system. - Page 15 To enable the OontZ app with your OontZ Angle 3 Shower - PLUS Edition - Turn on your OontZ Angle 3 Shower - PLUS Edition speaker and connect to the device with the OontZ app installed. (For Pair and Connect instructions please...
- Page 16 Using the OontZ App for Alexa 4) Select ‘Amazon Alexa Login’ and follow the instructions in the app. Page 13...
- Page 17 - Then just press and release the button and talk to Alexa. Alexa will respond instantly. Use Alexa to play your music on the OontZ Angle 3 Shower - PLUS Edition, adjust the volume of your music, check the weather and much more.
-
Page 18: Using The Oontz App For Speaker Updates
Select ‘Device Information’ from the menu to check the version of the current firmware version on the OontZ Angle 3 Shower - PLUS Edition and whether there is a new version available. - Page 19 Using the OontZ app for Speaker Updates Before Starting the Update - Connect the OontZ Angle 3 Shower - PLUS Edition to a Power Source. Insert the small end of the Micro USB charging cable into the OontZ Angle 3 Shower - PLUS Edition charging port and insert the larger end of the Micro USB charging cable into a USB wall charger.
-
Page 20: Amazon Alexa App
3) Launch the Amazon Alexa app and follow the instructions in the Amazon Alexa app. • Connect to music services like Amazon Music, Pandora, Spotify, TuneIn, and iHeartRadio. Choose a song or playlist and listen on your OontZ Angle 3 Shower - PLUS Edition. • Discover and enable recommended Alexa skills •... -
Page 21: Ipx7 Water Resistance
Perfect for taking to the beach and listening by the pool IPX7 means the OontZ Angle 3 Shower - PLUS Edition is WaterProof and can handle water spray from the shower or being splashed and can handle being partially or fully submerged in water up to a maximum of 3 feet deep, for up to a maximum of 30 minutes The rubber flap needs to be closed for the speaker to be waterproof and dustproof. -
Page 22: Talk To Siri Wireless Hands Free Personal Speakerphone
- Wait for about two seconds until you hear a "chime" - You can use your Smartphone or iPhone to switch between using - After the "chime" talk to Siri through the mic on the OontZ Hands Free Speakerphone and your phone. -
Page 23: To Play With Non-Bluetooth Devices Use A 3.5Mm Stereo Audio Cable
- Make sure both ends of the cable are fully inserted TheOontZ.com/accessories - You are now ready to play. Important: The Bluetooth on the OontZ Angle 3 Shower - PLUS Edition is disabled when a 3.5mm stereo audio cable is connected to the speaker. Important Notes: - The Alexa function will only work when connected over Bluetooth to your iPhone or Smartphone running the Android operating system. -
Page 24: Reset Function
Reset Function Step 1: Remove the Micro USB charging cable and 3.5mm Audio cable, if connected. Step 2: With the OontZ Angle 3 Shower - PLUS Edition off press and hold down the Power button for 8 seconds, then release. -
Page 25: Contacting Customer Support
Customer Support If you have a question about your OontZ Angle 3 Shower - PLUS Edition or experience an issue with the speaker, our Customer Support Team wants to assist you. For online troubleshooting tips please visit: TheOontZ.com/troubleshooting and select the OontZ Angle 3 Shower - PLUS Edition... -
Page 26: Safety And Precautions
Safety and Precautions When the OontZ Angle 3 Shower - PLUS Edition speaker is plugged in to a charging source with the Micro USB charging cable, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock. - Page 27 Safety and Precautions (continued) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 28 • Includes a durable aluminum carabiner for • Superior Sound with Deep Bass easily attaching to backpacks, luggage, • Perfect for strapping an OontZ Portable • Noise Cancellation of Background Noise laptop bags, coolers, camera bags, purses, Bluetooth Speaker to bicycles, scooters, •...
