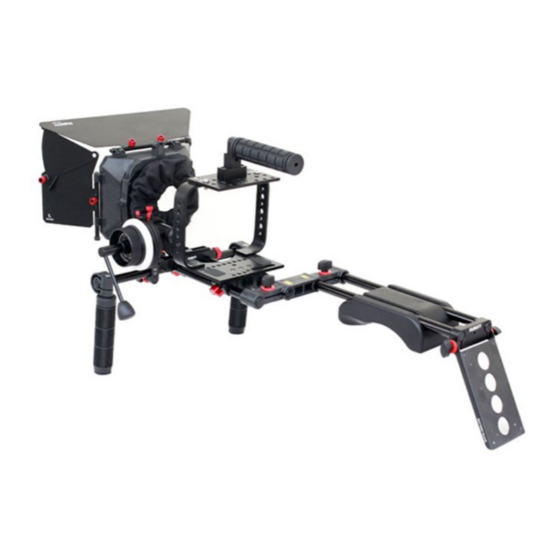

Filmcity FC-05 Instruction Manual

Adventure rig kit
Hide thumbs Also See for FC-05:

Advertisement

Table of Contents

1

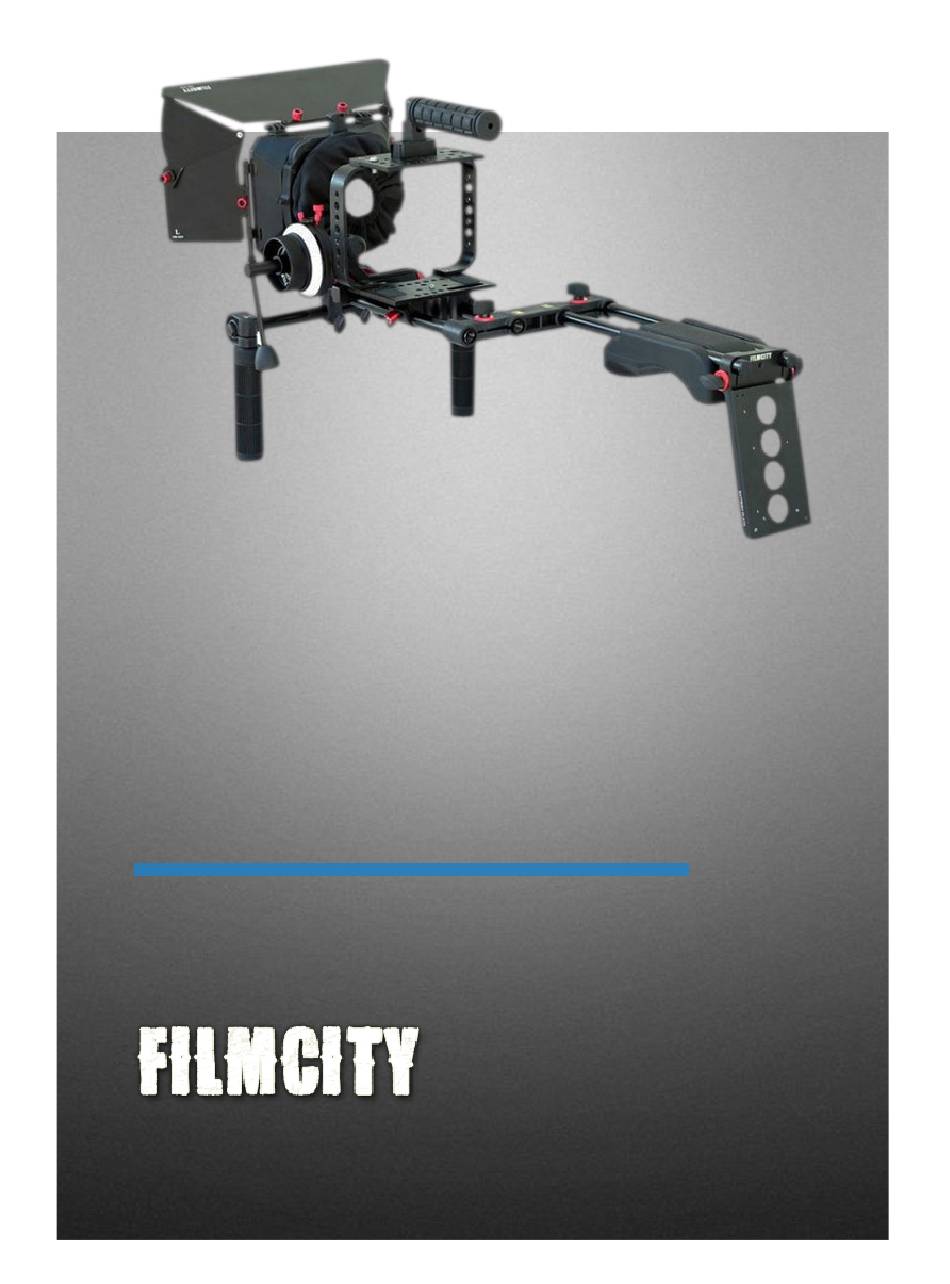

Adventure Rig Kit
(FC-05)
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FC-05 and is the answer not in the manual?

Questions and answers

Related Manuals for Filmcity FC-05

Summary of Contents for Filmcity FC-05

  • Page 1 Adventure Rig Kit (FC-05) Instruction Manual...
  • Page 2 At Filmcity, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
  • Page 3 Welcome To Filmcity! Dear Client, On behalf of all the people that work so hard to provide you with the most up-to-date, flexible and cost-efficient production gear, we would like to welcome you into the Filmcity family. By purchasing your Adventure Rig Kit, you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do.
  • Page 4 Introduction Having a precise system in your backpack gives you the chance to generate amazing shots with visual effects wherever you go. The Robust camera cage for blackmagic cinema camera with top handle allows endless accessory mounting options and cutting edge shoulder pad incorporates multi adjustments for comfortable filming experience with increased stability.
  • Page 5 Assembling  Insert camera into the Cage and tighten top and bottom screws for security.  Attach Quick Release Plate of your tripod head to the bottom of Cage and tighten it with help of screw driver.  Now mount Cage onto any standard tripod and secure it.
  • Page 6  Attach Top Handle onto the top of Cage and tighten the screws.  Now insert two 300mm female rods to camera Cage Base and tighten the knobs properly to secure them.  Then attach Straight Bracket towards one end of rods and secure it properly with the help of provided knob.
  • Page 7  Now insert the other two 300mm female threaded rods into Straight bracket and tighten knob to secure them properly.  Then attach Shoulder Pad and Battery Plate to the rods and tighten them appropriately.  Now attach two 100mm male rods at the front to extend it for mounting your handles and other accessories.
  • Page 8  Attach Gear Ring to camera lens and tighten properly  Then insert Follow Focus to front of rods and secure properly with the help of provided knob.  Now attach Matte Box to the front of rods, align knicker with lens barrel and tighten the knot.
  • Page 9  Then attach Z-Bracket to the front of Matte Box and secure properly with the help of provided knob.  Now slide-in one 300mm female rod through it in order to attach Handles and tighten knobs to secure the adapters and rod properly. ...
  • Page 10 YOUR FILMCITY ADVENTURE RIG KIT ALL DRESSED UP AND READY TO GO! WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
