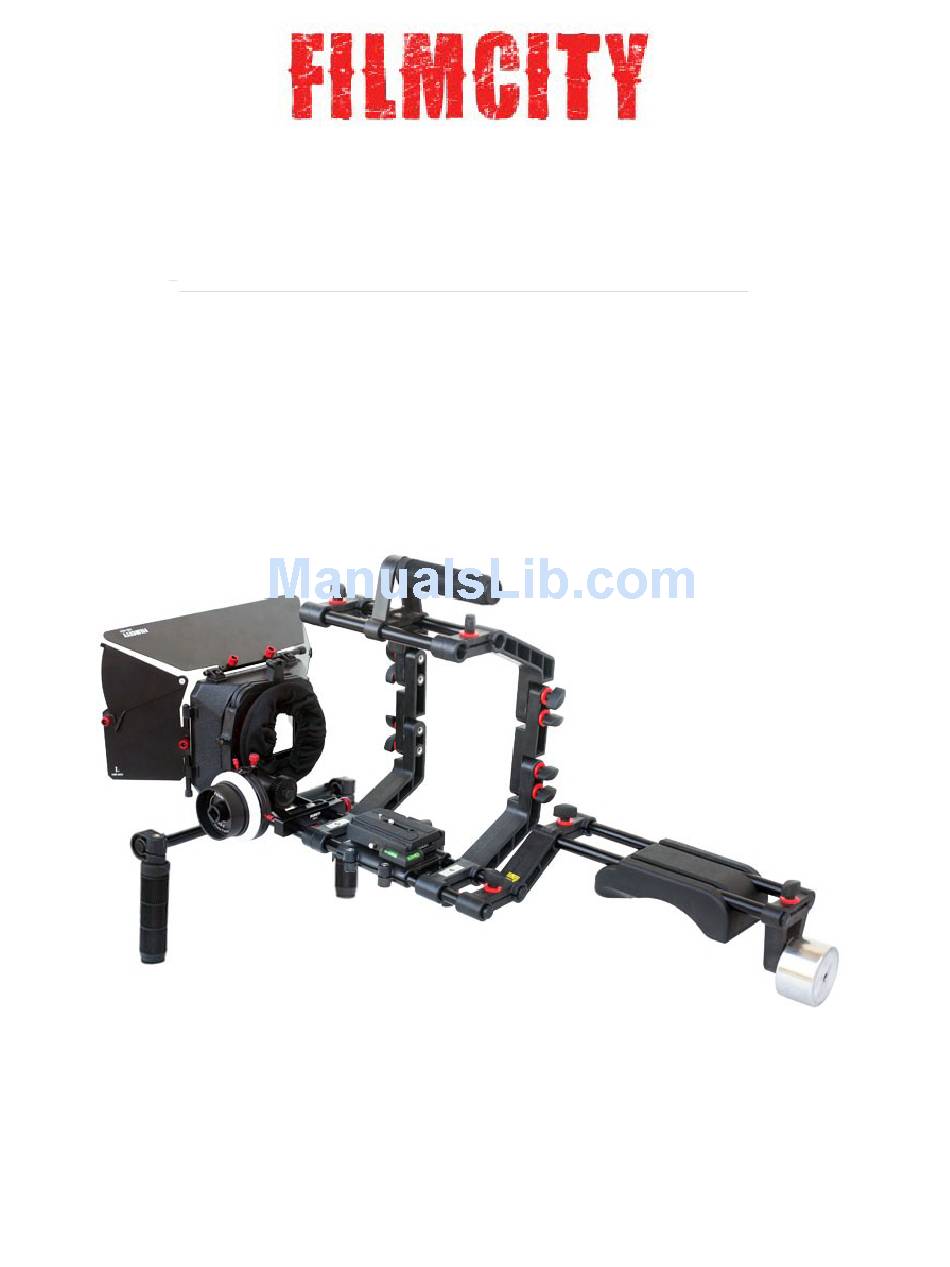

  • Page 1 DSLR Camera Cage Shoulder Rig Kit I N S T R U C T I O N M A N U A L All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
  • Page 2 Filmcity SHOULDER RIG KIT INTRODUCTION Our Filmcity Shoulder Rig kit meets and exceeds the requirement of DSLR users by providing professional look and production value at an affordable price. IN THE BOX Please inspect the contents of your shipped package to ensure you have received all that is pic- tured and listed below.
  • Page 3 Filmcity SHOULDER RIG KIT ASSEMBLING YOUR MB-600 MATTE BOX  Insert the french flag in to the matte box and tighten the screws. Using the same approach, insert the side flags into the (big) slots provided in the hinges and secure with the screws.
  • Page 4 Filmcity SHOULDER RIG KIT ASSEMBLING YOUR SHOULDER RIG KIT  Insert the 300mm female threaded rods into the camera base with quick release tighten the bolt with the help of provided allen key to secure it properly.  Now attach the quick release of your fluid head with the camera base with quick release and tighten the bolt with screw driver.
  • Page 5 Filmcity SHOULDER RIG KIT MOUNTING THE CAMERA  Loosen the ratchet knob and remove the quick release plate by pressing the quick release pin.  Attach the camera on quick release plate and tighten the bolt with screw driver. ...
  • Page 6 Filmcity SHOULDER RIG KIT  Attach both the brackets with rods and tighten the knobs to secure it properly.  Insert the 2x200mm female threaded rods into cage brackets on the top . Then attach the top handle with 200mm rods and tighten the knobs to secure it properly.
  • Page 7 Filmcity SHOULDER RIG KIT  Now insert the 300mm male threaded rods into the straight bracket and tighten the knob to secure properly.  Attach the shoulder pad and counterweight into the rods and secure it properly with the help of provided knob.
  • Page 8 Filmcity SHOULDER RIG KIT Note: If you have purchased (FC-03) kit, follow the below steps as well: ATTACHING THE FOLLOW FOCUS  Attach gear ring to camera lens and tighten properly. Insert HS-2 follow focus to front of rods and secure it properly with the help of provided knob.
  • Page 9 Filmcity SHOULDER RIG KIT  Attach the front handle bracket clamps with bracket, attach it with the rods and secure it properly with the help of allen key. Note: The front handle bracket clamps are the ones with allen bolts.
  • Page 10 Filmcity SHOULDER RIG KIT  Insert the handle clamp into the rods and screw the handle into the handle clamp. Note: The front handle bracket clamps are the ones without allen bolts  Insert the matte box in front side of rods barrel properly and tighten the knot.

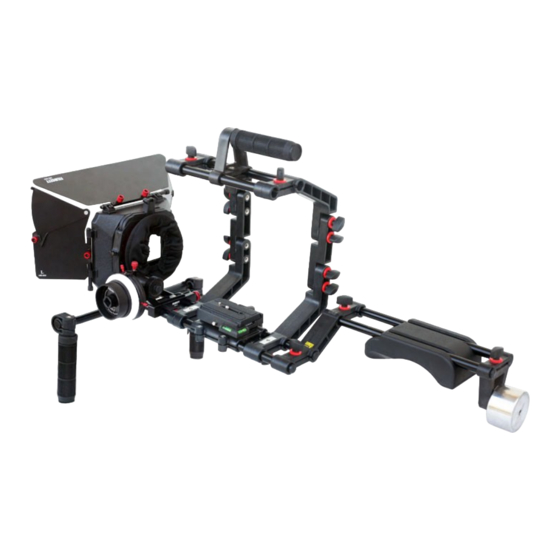

  • Page 11 Filmcity SHOULDER RIG KIT YOUR FILMCITY DSLR CAMERA CAGE SHOULDER RIG KIT ALL DRESSED UP AND GOOD TO GO Shown with optional accessories WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
