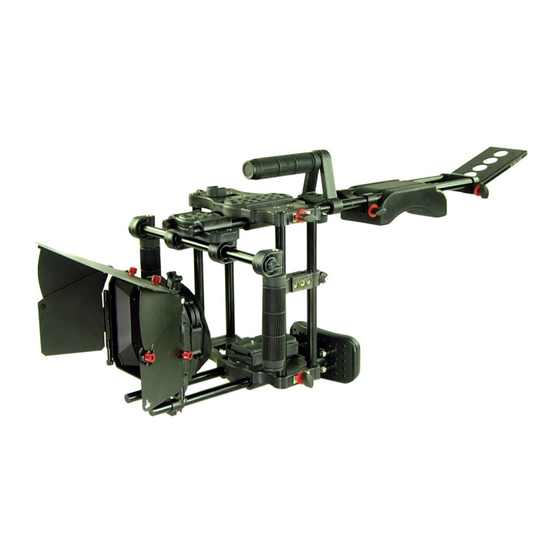

FILMCITY Belly Cruzer-DSLR Steady Camera Rig (FC-BC-DSR-P) Belly Cruzer DSLR Steady Camera Rig FC-BC-DSR-P I N S T R U C T I O N M A N U A L All rights reserved No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the publisher.
Page 2
FILMCITY Belly Cruzer-DSLR Steady Camera Rig (FC-BC-DSR-P) I N T R O D U C T I O N Our FILMCITY Belly Cruzer-DSLR Steady Camera Rig (FC-BC-DSR) meets and exceeds the requirement of DSLR users by providing professional look production value at an affordable price.
Page 3
FILMCITY Belly Cruzer-DSLR Steady Camera Rig (FC-BC-DSR-P) A S S E M B L I N G YO U R B E L LY C R U Z E R - D S L R C A M E R A R I G ...
Page 4
FILMCITY Belly Cruzer-DSLR Steady Camera Rig (FC-BC-DSR-P) A S S E M B L I N G YO U R F C - B C - D S R R I G Insert the 300mm female threaded rod into the camera base and tighten with allen key.
Page 5
FILMCITY Belly Cruzer-DSLR Steady Camera Rig (FC-BC-DSR-P) Now loosen the knob and press the pin to release the quick release plate . Attach the camera with quick release plate and tighten the bolt to secure properly. Now mount the camera onto the base plate and tighten the knob to secure it.
Page 6
FILMCITY Belly Cruzer-DSLR Steady Camera Rig (FC-BC-DSR-P) Screw-in 100mm male rods to extend the height of cage. Attach the accessory mounting bracket and tighten with the allen key. Attach the cage top plate and tighten with the knob.
Page 7
FILMCITY Belly Cruzer-DSLR Steady Camera Rig (FC-BC-DSR-P) Attach the belly to the rods and tighten with the knob to secure it. Now Loosen the top plate with the help of allen key and insert the 300mm female rods.
Page 8
FILMCITY Belly Cruzer-DSLR Steady Camera Rig (FC-BC-DSR-P) Now insert front handle rod into the front bracket and secure it properly with the help of allen key. Screw the handle into the handle clamp and insert the handle into the rod.
Page 9
FILMCITY Belly Cruzer-DSLR Steady Camera Rig (FC-BC-DSR-P) Now attach the top handle and tighten the knob to secure it properly. Attach SR-33A adapter into the rods and tighten with knobs to secure it. Attach the shoulder pad into the rod and Insert battery plate and tighten with the knob to secure it.
FILMCITY Belly Cruzer-DSLR Steady Camera Rig (FC-BC-DSR-P) WARRANTY We offer a limited time warranty for our products. For Mechanical products we provide a 6 month warranty & for electronic products we provide a 3 month warranty from the date of purchase.
