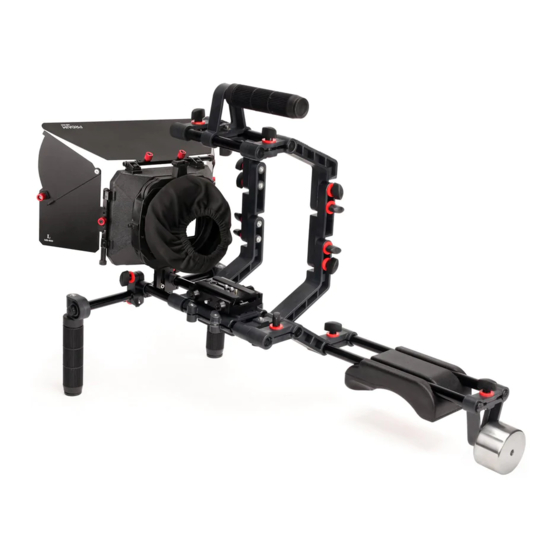

Filmcity FC-02-P Instruction Manual

Power dslr camera cage shoulder rig kit
Hide thumbs

Advertisement

Quick Links

Download this manual

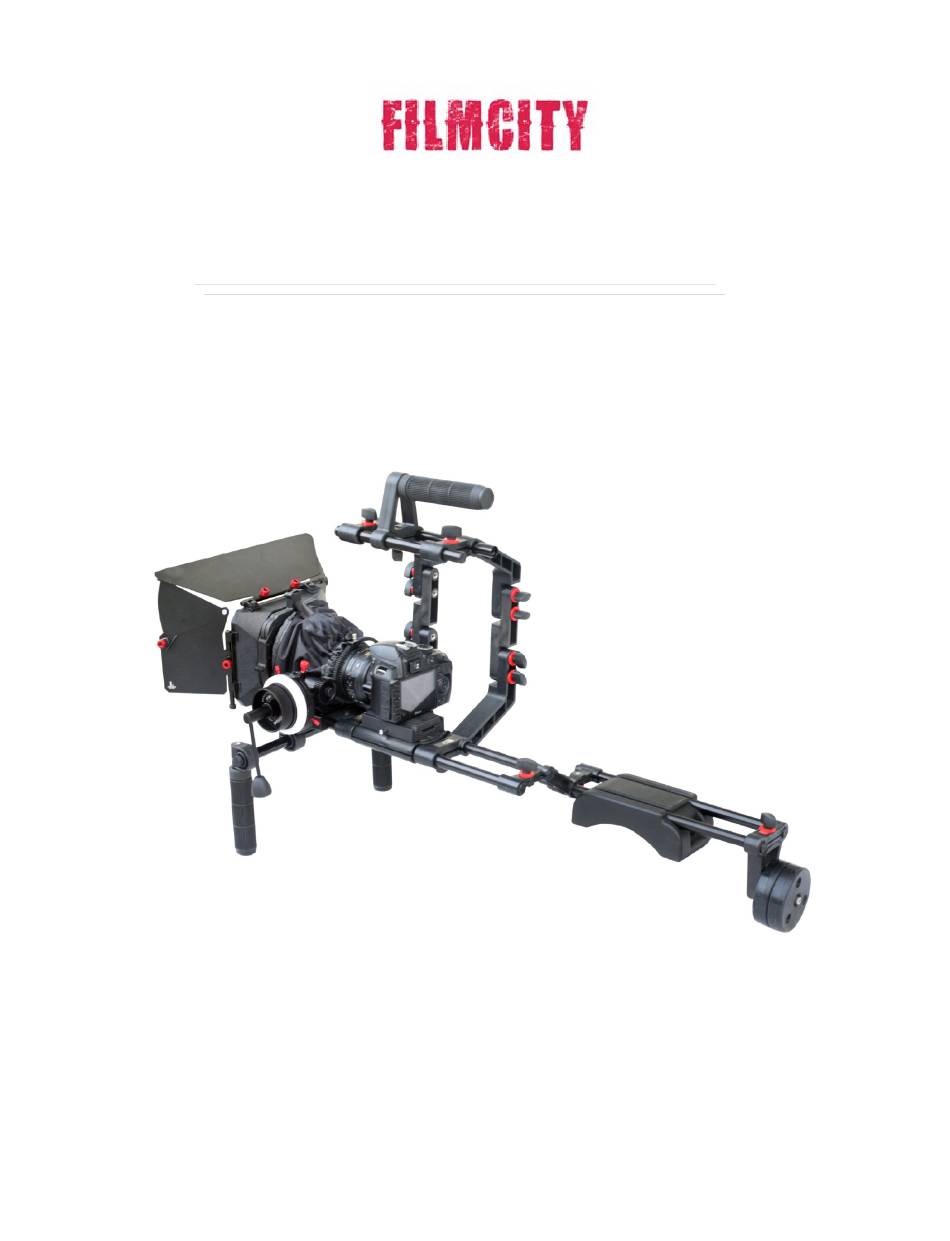

FILMCITY POWER SHOULDER RIG
1
POWER DSLR Camera Cage Shoulder
Rig Kit
I N S T R U C T I O N M A N U A L
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by
the applicable copyright statutes or in writing by the Publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FC-02-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Filmcity FC-02-P

Summary of Contents for Filmcity FC-02-P

  • Page 1 FILMCITY POWER SHOULDER RIG POWER DSLR Camera Cage Shoulder Rig Kit I N S T R U C T I O N M A N U A L All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
  • Page 2 FILMCITY POWER SHOULDER RIG I N T R O D U C T I O N Our Filmcity Shoulder Rig kit meets and exceeds the requirement of DSLR users by providing professional look production value at an affordable price. I N T H E B O X Please inspect the contents of your shipped package to ensure you have received all that is pictured and listed below.
  • Page 3 FILMCITY POWER SHOULDER RIG A S S E M B L I N G YO U R M B - 6 0 0 M AT T E B OX  Insert the french flag in to the matte box and tighten the screws. Using the same approach, insert the side flags into the (big) slots provided in the hinges and secure with the screws.
  • Page 4 FILMCITY POWER SHOULDER RIG  Attach knicker on conversion ring, then screw in the conversion ring on ring holder . A S S E M B L I N G YO U R R I G K I T ...
  • Page 5 FILMCITY POWER SHOULDER RIG  Attach the camera with quick release plate and tighten the bolt to secure properly.  Now mount the camera onto the base plate and tighten the knob to secure it.  Insert the rod into camera base and secure it properly with the help of allen key.
  • Page 6 FILMCITY POWER SHOULDER RIG  Now, attach the rods on the top of cage brackets in order to attach the top handle.  Attach the straight bracket to the end of the rods and secure it properly with the help of provided knob.
  • Page 7 FILMCITY POWER SHOULDER RIG  Attach the 150mm male rods at the front to extend it for mounting your matte box and handles. Note: If you have purchased (FC-03-P) kit, follow the below steps as well:  Attach gear ring to camera lens and tighten the screw.
  • Page 8 FILMCITY POWER SHOULDER RIG  You can attach speed crank to follow focus as per your requirement.  Attach the front handle bracket clamps with bracket, attach it with the rods and secure it properly with the help of allen key.
  • Page 9 FILMCITY POWER SHOULDER RIG  Insert the handle clamp into the rods and screw the handle into the handle clamp. Note: The front handle bracket clamps are the ones without allen bolts  Insert the matte box in front side of rods barrel properly and tighten the knot.

  • Page 10: Warranty

    FILMCITY POWER SHOULDER RIG WARRANTY We offer a limited time warranty for our products. For Mechanical products we provide a 6 month warranty & for electronic products we provide a 3 month warranty from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
