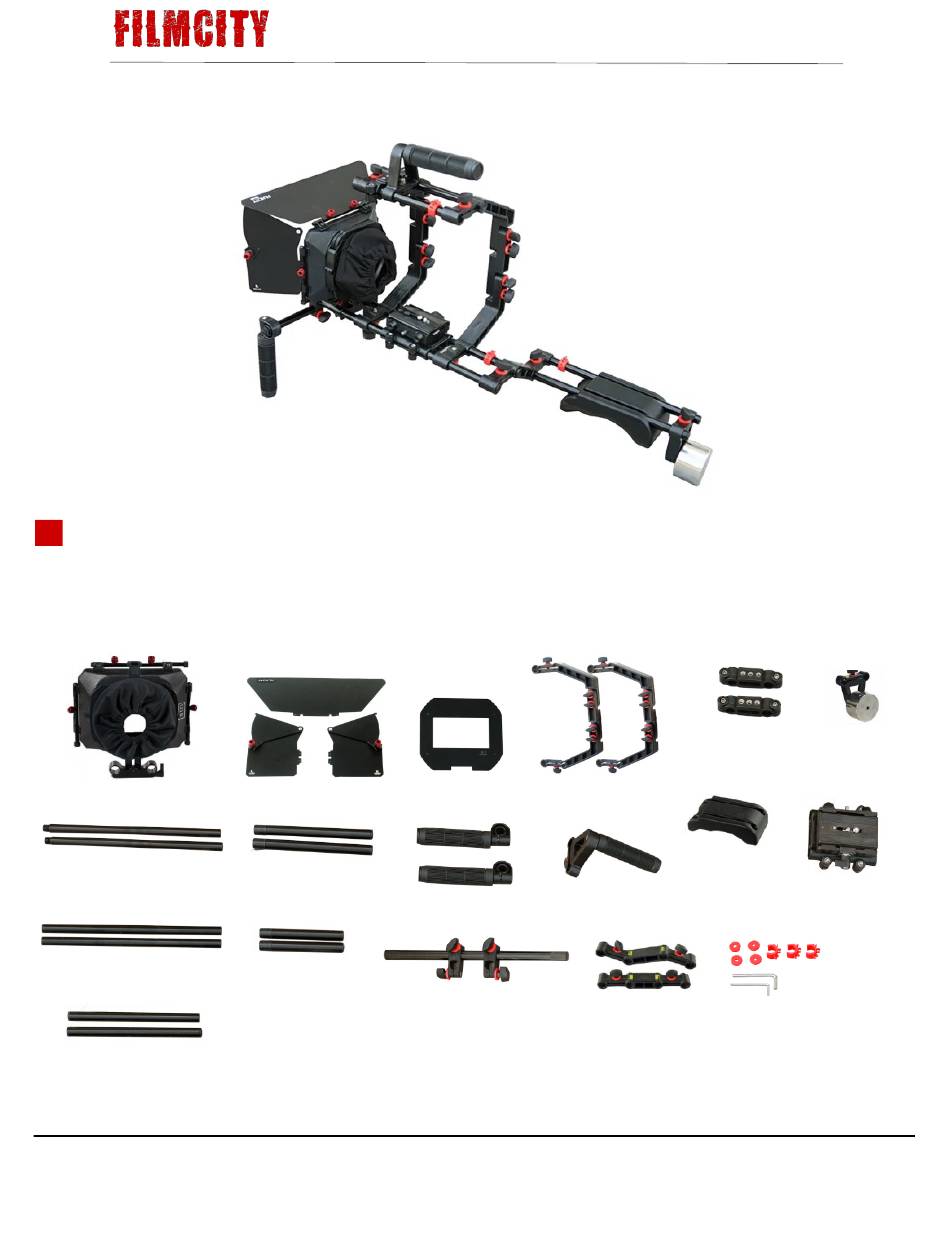

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Matte Box MB-600
2x 300mm Female
threaded Rods
2x 300mm Male
threaded Rods
2x 200mm Female
threaded Rods
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
Camera Cage Shoulder Kit
A s s e m b l y M a n u a l
French and Side Flags
2x 150mm Male
threaded Rods
Front Handle Set
2x 100mm Male
threaded Rods
300mm Rod with Junction
All rights reserved.
statutes or in writing by the Publisher.
16:9 Mask
9" Cage Brackets
Top Handle
Adapters
(FC-02)
Accessory
Mounting Plate
Shoulder Pad
Camera Base with
Straight &
Accessories
Z Brackets
1
Counter
Weight
Quick Release
Advertisement
Table of Contents
Related Manuals for Filmcity FC-02
Summary of Contents for Filmcity FC-02
- Page 1 Camera Cage Shoulder Kit (FC-02) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 MB-600 Matte Box Setup Insert French Flag into Matte Box and tighten the screws. In the same way, insert Side Flags into (big) slots provided and secure with the screws. NOTE: If the French Flag remains loose even after tightening the knob, then slightly tighten the allen bolt as shown.
- Page 3 Camera & Cage Setup Quick Release Ratchet Knob Loosen Ratchet Knob and remove Quick Release Plate by pressing the Quick Release Pin. Fix the quick release plate with camera and tighten bolts using screw driver. Now mount camera with Quick Release Plate on the Camera Base and tighten knob properly to secure it.
- Page 4 Now attach Straight Bracket at the end of Rods and lock it tightly with the help of provided knob. Then insert 300mm male threaded rods into the Straight Bracket and tighten knob to properly lock them. Attach Shoulder Pad and insert Counter weight into the rods.
- Page 5 Finally mount Matte Box to the front of rods, align Knicker with Lens Barrel and tighten its knob. YOUR FILMCITY CAMERA CAGE SHOULDER RIG KIT ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
