Filmcity FC-05 Assembly Instructions

Adventure rig kit

Hide thumbs Also See for FC-05:

Adventure Rig Kit

(FC-05)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Junction Rod

1 x Handle Set

Sleek BMCC Camera

Gear Ring Set

Top Handle

MB-600 Matte Box

Adapters

Cage

5 x 300mm Female

Front Handle

Battery Mounting

Shoulder Pad

HS-2 Follow Focus

Threaded Rods

Bracket Clamps

Plate

2 x 100mm Male

Speed Crank

Tools

threaded Rods

Straight & Z-Bracket

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the FC-05 and is the answer not in the manual?

Page 1 Adventure Rig Kit (FC-05) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Rig Kit Setup  Insert the camera (Not Included) into the cage and tighten the top and bottom screws for security.  Attach the quick release plate of your tripod head to the bottom of the cage and tighten it using a screwdriver. ...
Page 3  Now insert the other two 300mm female threaded rods into the straight bracket and tighten the knob to secure them properly.  Then attach the shoulder pad and the battery plate to the rods and tighten them appropriately.  Now attach two 100mm male rods at the front to extend it for mounting your handles and other accessories.

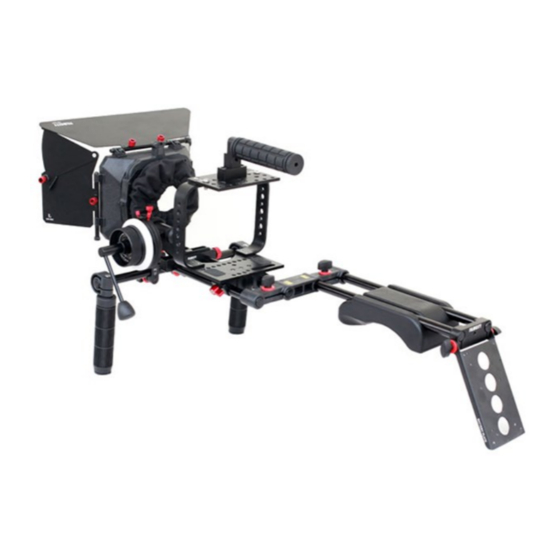

Page 4  Finally, screw both the handles into the handle clamp and insert them into the rod. YOUR FILMCITY ADVENTURE RIG KIT ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
Page 5 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
