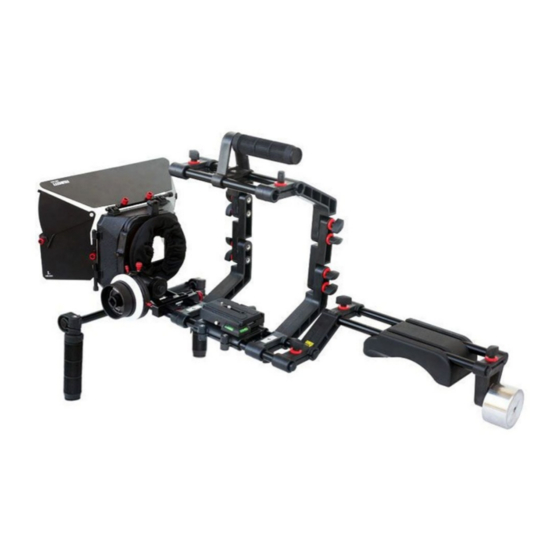

Dslr camera cage shoulder rig kit
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
FILMCITY DSLR Camera Cage Shoulder Rig Kit
1
DSLR Camera Cage Shoulder Rig Kit
(FC-03)
I N S T R U C T I O N M A N U A L
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic,
mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in
writing by the Publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FC-03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Filmcity FC-03

Summary of Contents for Filmcity FC-03

  • Page 1 FILMCITY DSLR Camera Cage Shoulder Rig Kit DSLR Camera Cage Shoulder Rig Kit (FC-03) I N S T R U C T I O N M A N U A L All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
  • Page 2 Shoulder Rig is an essential equipment that helps you keep the camera stabilized while giving you the freedom to follow your subject. The FC-03 Shoulder Rig comes with a Matte Box, a Follow Focus, and Cage Brackets, letting you capture your shots with ease in any situation.
  • Page 3 FILMCITY DSLR Camera Cage Shoulder Rig Kit ASSEMBLING YOUR SHOULDER RIG KIT  Insert the 300mm female threaded rods into the camera base with quick release and tighten the bolt with the help of provided allen key to secure it properly.

  • Page 4: Mounting The Camera

    FILMCITY DSLR Camera Cage Shoulder Rig Kit MOUNTING THE CAMERA  Loosen the ratchet knob and remove the quick release plate by pressing the quick release pin.  Attach the camera on quick release plate and tighten the bolt with screw driver.
  • Page 5 FILMCITY DSLR Camera Cage Shoulder Rig Kit  Attach both the brackets with rods and tighten the knobs to secure it properly.  Insert the 2x200mm female threaded rods into cage brackets on the top .  Attach the top handle with 200mm rods and tighten the knobs to secure it properly.
  • Page 6 FILMCITY DSLR Camera Cage Shoulder Rig Kit  Now insert the 300mm male threaded rods into the straight bracket and tighten the knob to secure properly.  Attach the shoulder pad and counterweight into the rods and secure it properly with the help of provided knob.
  • Page 7 FILMCITY DSLR Camera Cage Shoulder Rig Kit ATTACHING THE FOLLOW FOCUS  Attach gear ring to camera lens and tighten properly. Insert HS-2 follow focus to front of rods and secure it properly with the help of provided knob. NOTE: You can attach speed crank to follow focus as per your requirement.
  • Page 8 Tighten the knobs to secure the adapters and rod properly.  Attach the handles at both sides and tighten the knobs to secure the adapters and rod properly. YOUR FILMCITY DSLR CAMERA CAGE SHOULDER RIG KIT ALL DRESSED UP AND GOOD TO GO (SHOWN WITH OPTIONAL ACCESSORIES)

  • Page 9: Warranty

    FILMCITY DSLR Camera Cage Shoulder Rig Kit WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
