Generator Summary
The Generator Summary can be found at the top of all maintenance screens and provides an overview of the system.
Engine Tab
The Engine tab contains maintenance and instrumentation data gathered from the engine. Above the engine analogue
meters is a row of alarm icons. Each icon can be one of three colors: gray (inactive), yellow (warning) or red (shutdown).
The alarm icons are as follows from left to right: water in fuel, emission filter, engine air inlet temperature, charge
alternator, oil pressure, fuel level, battery voltage, coolant temperature, and ECU lamp.
Note: The content may change depending upon the selected engine and the features supported by the engine.
Generator Tab
The Generator tab contains maintenance and instrumentation data gathered from the generator. Each page highlights
different data gathered by the generator, with the analogue meters changing accordingly. The last two pages will
display the information in the bar graph. The bar graph shows blue for positive and red for negative. For the power
factor bar graph, blue is for lagging pf and red is for leading pf.
Note: The content may change depending upon the selected generator and the features supported by the generator.
33701 C
SITE
Return Delay

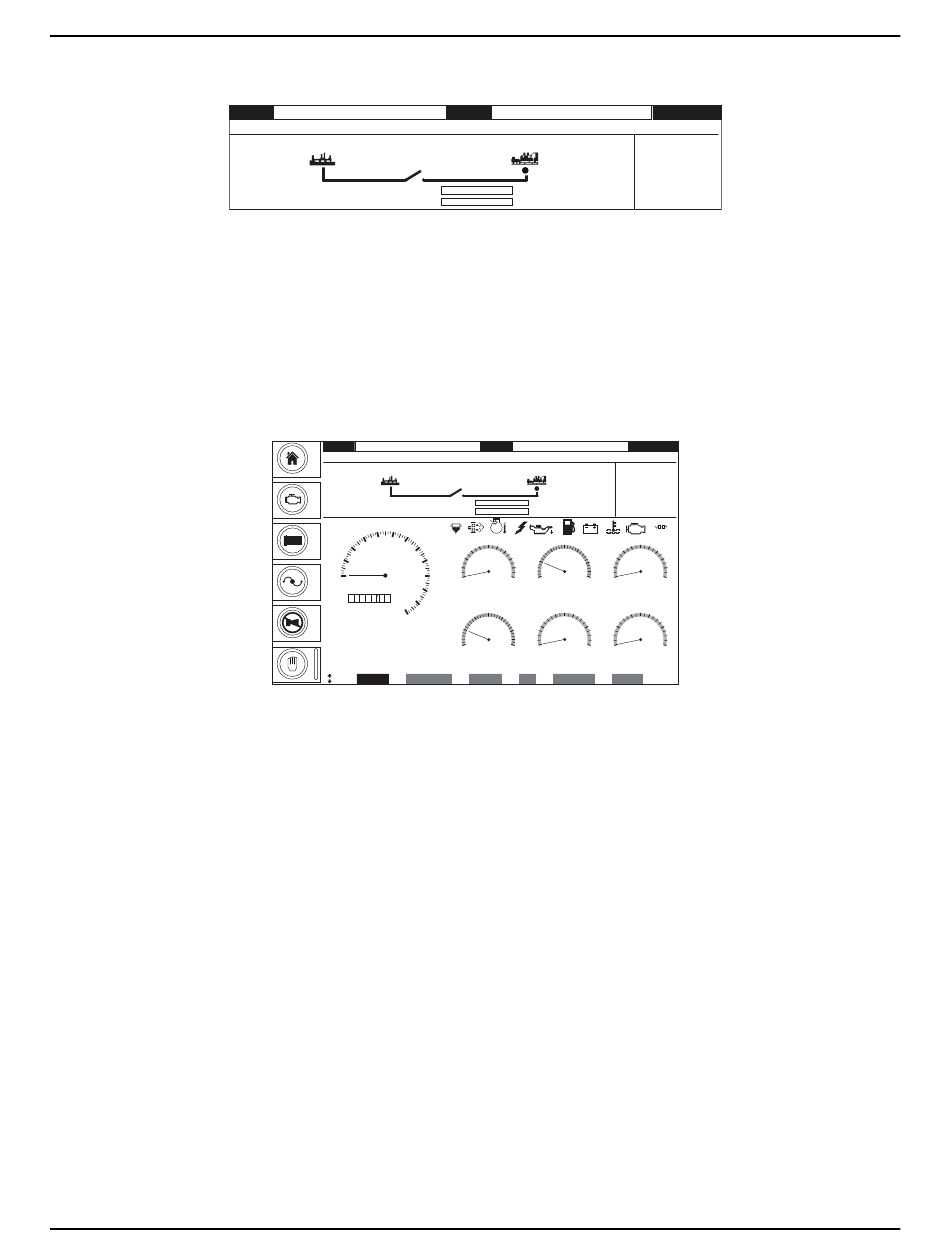

Figure 2-10. Generator Summary Screen
