Control Panel - Generac Power Systems MAGNUM MMG75D Operating Manual

General Information

CONTROL PANEL

14
13
12
11
10
1. Power Zone™ controller
2. 50A circuit breakers (3)
3. 120V GFCI receptacles (2)
4. 20A circuit breakers (2)
5. Remote start terminal block
6. Engine accessory connection (2)
7. 120/240V twist-lock receptacles (3)
10
9 6

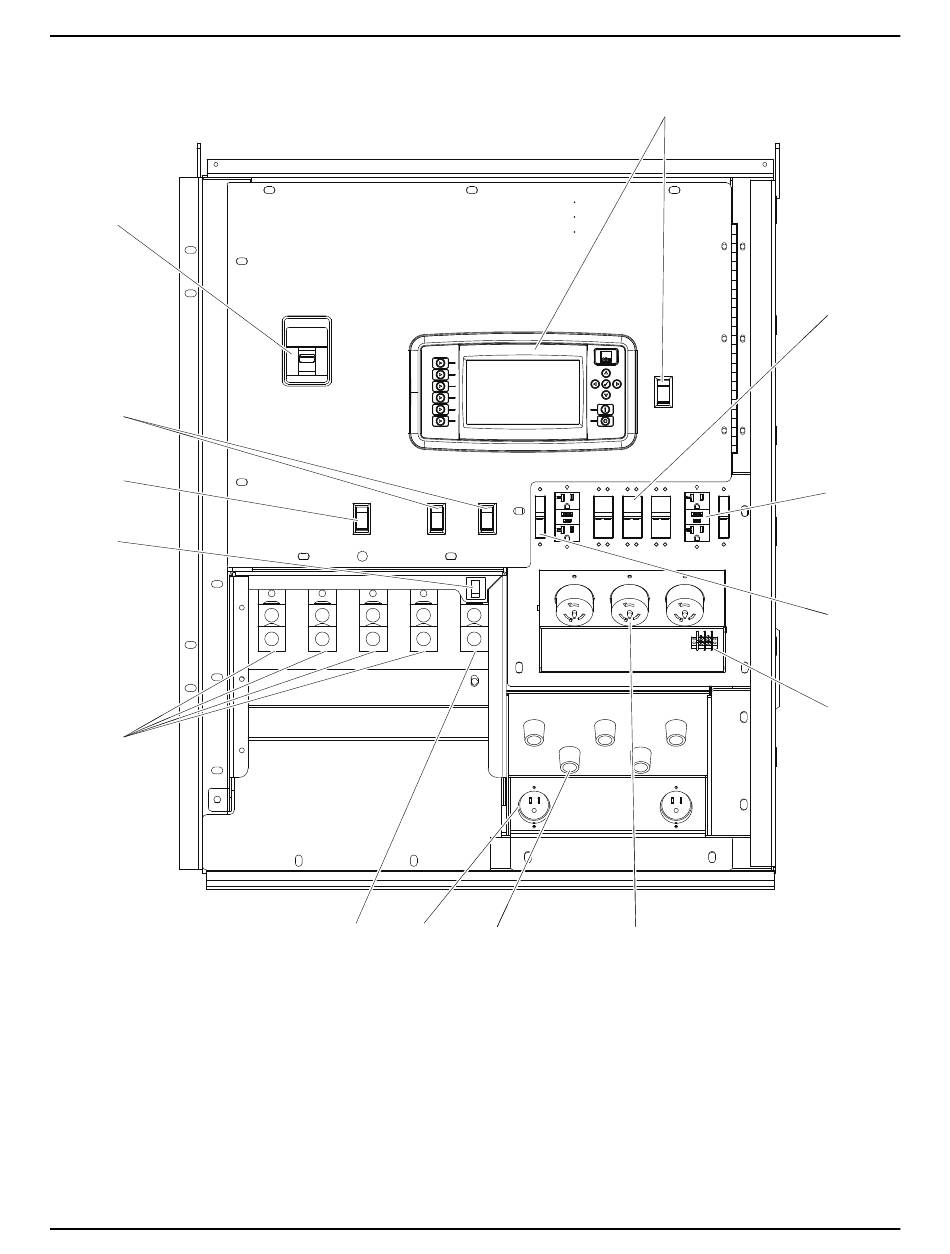

Figure 2-4. Control Panel Component Locations
MMG75D-100D Operating Manual
8 7
8. Cam lock connections (5)
9. Generator ground connection lug
10. Generator output connection lugs (4)
11. Door safety switches (2)
12. Diesel exhaust filter cleaning switch
13. Auxiliary light switches (optional)
14. Main circuit breaker
1
2
3
4
5
01890
33701 C
