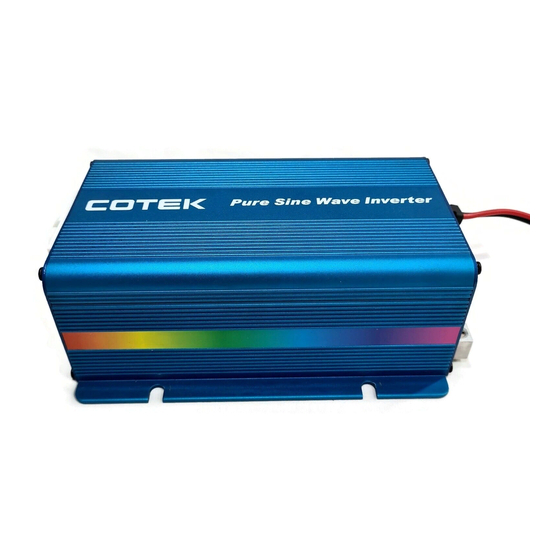

Pure sine wave power inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

S Series
User's Manual
S150/300/500
PURE SINE WAVE
POWER INVERTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cotek S Series

Summary of Contents for Cotek S Series

  • Page 1 S Series User’s Manual S150/300/500 PURE SINE WAVE POWER INVERTER...

  • Page 3: Table Of Contents

    Table of Contents 1. Safety Instructions ............1 1-1. General Safety Precautions ..........1 1-2. Precautions When Working with Batteries ...... 1 2. Functional Characteristics Introduction ....2 2-1. Features ................. 2 2-2. Mechanical Drawing ............2 2-3. S150 Specification ............3 2-4.

  • Page 4: Safety Instructions

    1. Safety Instructions WARNING! Before installing and using the inverter, please read the following safety information carefully. 1-1. General Safety Precautions 1-1-1. Do not expose the inverter to water, mist, snow, or dust. To reduce the risk of hazard, do not cover or obstruct the ventilation shaft.

  • Page 5: Functional Characteristics Introduction

    2. Functional Characteristics Introduction 2-1. Features z Low Frequency transformer design is capable of driving high reactive and capacitive loads z Power ON / OFF remote control (Green Terminal) z Input & output fully isolation z Thermal control fan z Input protection Reverse Polarity (Fuse) / Under Voltage / Over Voltage z Output protection Short Circuit / Overload / Over Temperature Mechanical Drawing...

  • Page 6: S150 Specification

    2-3. S150 Specification Specification Model No. Item S150-112 S150-124 S150-212 S150-224 AC Voltage 100 / 110 / 120 VAC ± 5% 220 / 230 / 240 VAC ± 3% Rated Power 150W Surge Power 200W Waveform Pure Sine Wave (THD < 6.0%) Frequency 50 / 60Hz ±...

  • Page 7: S300 Specification

    2-4. S300 Specification Specification Model No. Item S300-112 S300-124 S300-212 S300-224 AC Voltage 100 / 110 / 120 VAC ± 5% 220 / 230 / 240 VAC ± 3% Rated Power 300W Surge Power 400W Waveform Pure Sine Wave (THD < 6.0%) Frequency 50 / 60Hz ±...

  • Page 8: S500 Specification

    2-5. S500 Specification Specification Model No. Item S500-112 S500-124 S500-212 S500-224 AC Voltage 100/110/115/120 VAC ± 5% 200/220/230/240 VAC ± 3% Rated Power 500W Surge Power 500W~625W(1min) , 625~750W(10s) Waveform Pure Sine Wave (THD < 3.0%) Frequency 50 / 60Hz ± 0.5% Power Factor Allowed cosθ...

  • Page 9: Instructions

    3. Instructions S150, S300 and S500 series are very reliable, portable, and fully protected. These pure sine inverters are used in a wide range of applications such as vehicles, office equipment, home entertainment, electronic appliances, etc. To have the most effective power inverter performance, it must be installed and used properly.
  • Page 10 3-1-2. Main switch and remote port The 3-stage switch is for turning the unit ON/OFF or putting in to the remote mode. 3-1-1-1. Before installing the inverter, make sure the main switch is set to "OFF ". 3-1-1-2. Before using the remote unit, make sure the main switch is set to "REMOTE ".

  • Page 11: Rear Panel Introduction

    LED Status Description Slow Red Blink Intermittently Red Blink Solid Red 3-2. Rear Panel Introduction 3-2. Rear Panel Introduction S150/300 Rear Panel S500 Rear Panel Model S150 / S300 / S500 DC input terminal Ventilation mesh Chassis ground 3-2-1. Input terminals Connect the input terminal to 12v / 24V battery or other 12V / 24V power source.

  • Page 12: Ac Safety Grounding

    (the neutral of the Inverter’s AC output to input safety ground) is not present so that the utility neutral is only connected to ground at your breaker panel, as required. COTEK has tested the following GFCI-properly when connected to the output of the Inverter.

  • Page 13: Installation

    Increasing S500 DC cable size helps improve the situation. COTEK recommends the following cables for optimum inverter performance. (Apply both 110V and 220V versions) Model Wire AWG Inline fuse S500-112 125A S500-124 # 10 S500-212 125A S500-224 # 10 NOTE Batteries are capable of providing very large currents in case of short circuit.

  • Page 14: Troubleshooting

    3-6. DC Input (Outlet sockets available) 4. Troubleshooting WARNING! Do not open or disassemble the inverter. Attempting to service the unit yourself may cause the risk of electrical shock or fire. Problems and Symptoms Possible Cause Solutions No output voltage, the LED glows Red. a.

  • Page 15: Maintenance

    This warranty will be considered void if the unit has been misused, altered, or accidentally damaged. COTEK is not liable for anything that occurs as a result of the user’s fault.
  • Page 16 No.33, Sec. 2, Renhe Rd., Daxi Dist., Taoyuan City 33548, Taiwan Phone +886-3-3891999 FAX +886-3-3802333 http // www.cotek.com.tw 2015.01._A1...
