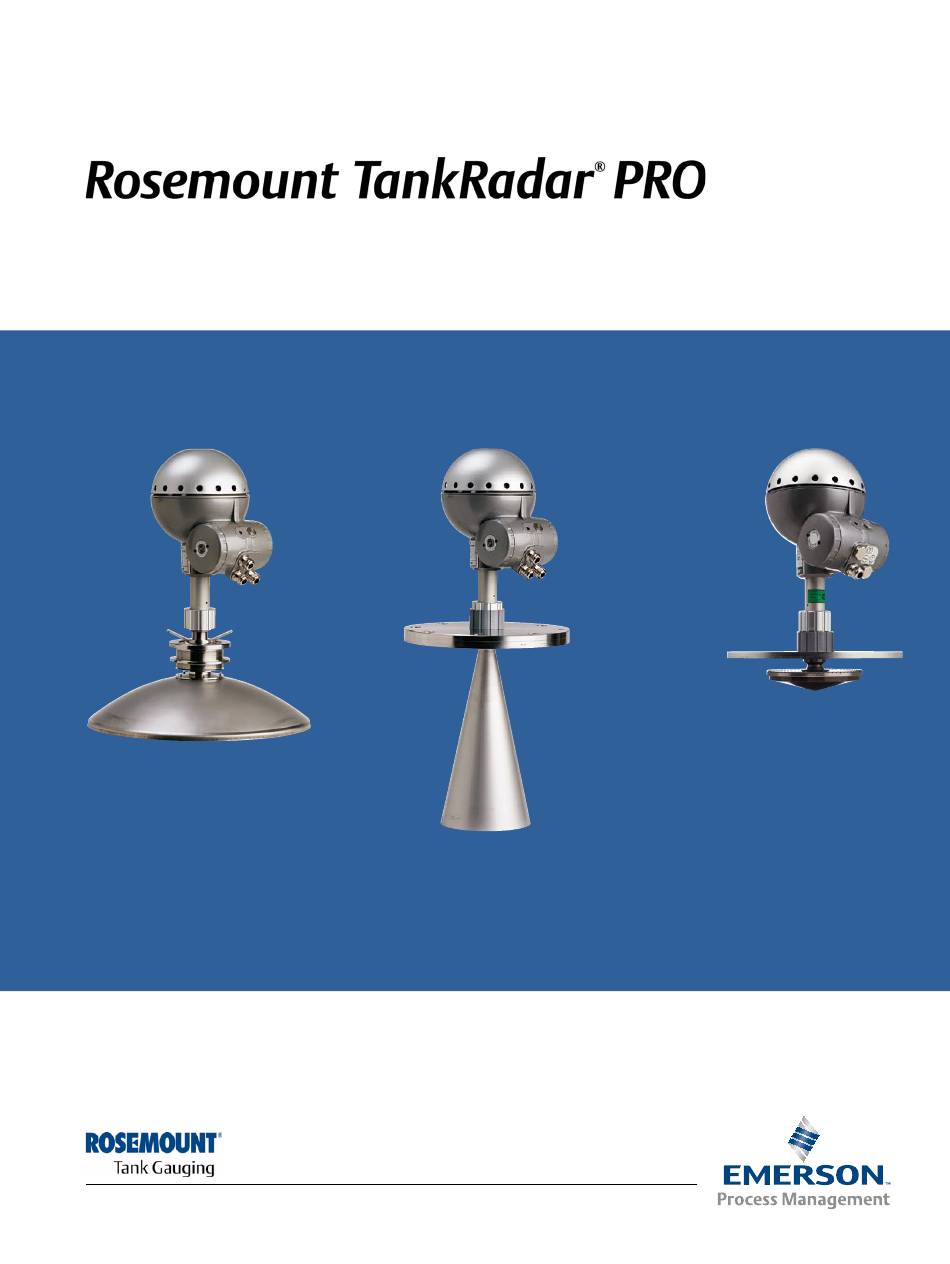

- Page 1 Technical Description 501026En, Ed. 3, Rev E July 2007 Radar Level Gauge www.rosemount-tg.com...
-
Page 3: Table Of Contents
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Contents System overview ________________________________________________ 5 Features _______________________________________________________ 6 Measurement principle ___________________________________________ 6 Applications ____________________________________________________ 7 Select the right Pro gauge ________________________________________ 8 Transmitter Head versions ________________________________________________8 Software modules _______________________________________________________8... - Page 4 Model Code Example ________________________________________________32 Patents _______________________________________________________ 33 Technical documentation for TankRadar Pro ________________________ 33 Technical data is subject to change without prior notice. Rosemount Tank Radar AB accepts no responsibility for any errors that may appear in this description. Viton , and Kalrez are registered trademarks of Du Pont Performance Elastomers.
-
Page 5: System Overview
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 System overview Pro Parabolic Pro Still-pipe Pro Still-pipe RTG 3900 Pro Cone Pro Process Pro Rod Antenna Gauge Array Antenna Gauge TankRadar Rex Antenna Seal Antenna Antenna Antenna Gauge... -
Page 6: Features
This method is called FMCW (Frequency Modulated Continuous Wave) and is used in all high performance radar gauges. TankRadar Pro uses the 10 GHz frequency band to get optimum balance between beamwidth and sensitivity to antenna contamination. The FMCW method is based on a radar sweep with continuous changes in frequency. -
Page 7: Applications
• Storage tanks at refineries and tank terminals • LPG storage • Power plants • Chemical & petrochemical industry TankRadar Pro parabola and cone versions provide free propagation, high accuracy level measurement in storage • Pharmaceutical tanks. • Food and beverage •... -
Page 8: Select The Right Pro Gauge
± 5 mm (± 0.2 in.). For high accuracy tank gauging applications, Platinum • Multiple Echo Tracking (MET™) is the best TankRadar Pro choice. It includes the Improves the resolution and accuracy in echo disturbed FHAST™ software and selected hardware for regions and close to the tank bottom. -
Page 9: Antenna Versions
The thin antenna plate prevents the flange from exposure to the tank environment. TankRadar Pro can be equipped with different antennas to fulfill various requirements. The tank connection, including antenna, is the only part exposed to the tank atmosphere. The cone antenna is most commonly used. -

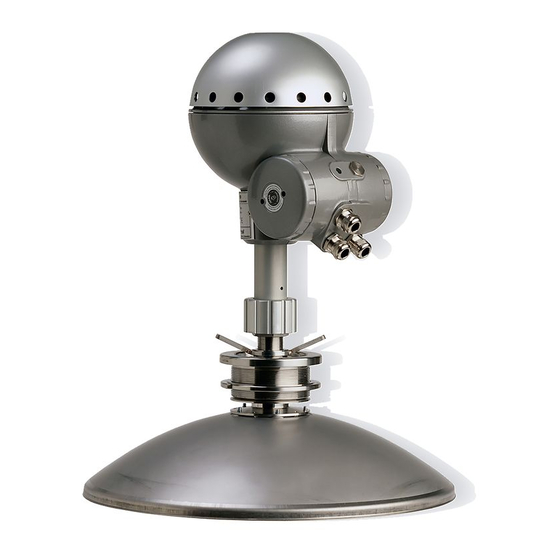

Page 10: Parabolic Antenna
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Parabolic antenna The parabolic antenna is suitable for both liquid and mm (inch) 200 (7.87) solid applications. As it has the largest diameter it has the most narrow radar beam and can be used for extremely long measuring distances. -
Page 11: Still-Pipe Array Antenna
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Still-pipe Array antenna The Still-pipe Array Antenna with its small-sized antenna is designed for mounting on existing still- pipes. Typical applications are crude oil tanks with floating roofs and gasoline/product tanks with or without inner floating roofs. -
Page 12: Process Seal Antenna
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Process seal antenna The dish made of PTFE or ceramics seals off the cone shaped antenna from the tank atmosphere. This combines the benefits of using a cone antenna with the advantage of only exposing material suitable for hygienic or corrosive applications. -
Page 13: Rod Antenna
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Rod antenna The rod antenna is suitable for small nozzles / tanks. mm (inch) 200 (7.87) The upper (inactive) part of the antenna is made of stainless steel and the lower (active) part is PTFE. -
Page 14: Measuring Range
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Measuring range The diagrams below show how the measuring For still-pipe mounted Pro gauges the typical range is influenced by the antenna type, dielectric measuring range is 35-50 m (115-160 ft) also in constant of the liquid (ε... -
Page 15: System Integration
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 System integration TankRadar Pro can be equipped with a number of different output alternatives such as analog 4-20 mA HART ™ fieldbus, ® oundation Profibus DP or the Rosemount Modbus based ®... -
Page 16: Trl/2 Fieldbus Systems
TankRadar Rex TankRadar Pro Device interoperability makes it possible to create intelligent control loops. TankRadar Pro can be connected to the fieldbus together with any other type of instrument. Up to 16 Pro gauges can be connected to each segment. The fieldbus interface can be specified to be intrinsically safe. -
Page 17: Mechanical Mounting
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Mechanical mounting The TankRadar Pro gauge is easily carried to the tank top and mounted on a suitable nozzle or pipe. 10 mm (0.4 in.) Free propagation or more The gauge should be installed as follows: •... -
Page 18: Pipe Installation
Deflection plate fixed and hinged-hatch designs. Consult Emerson Process Management / Rosemount Tank Gauging or an authorized TankRadar Pro measures level in 1- to 12-in. still-pipes distributor for installation advice. Electrical connections The Transmitter Head has two separate junction boxes. One is for a non-intrinsically safe primary signal output and power supply cables. -
Page 19: Specifications
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Specifications General Product designation TankRadar Pro: Lite, Standard, Gold or Platinum Operating principle 10 GHz FMCW radar Beam angle See page 17 Microwave output power Max 1.0 mW Internal calibration Integrated digital reference for automatic compensation of radar sweep. - Page 20 Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Mechanical Weight, excl. flange Approximately 8 kg (18 lbs), depending on antenna selection. Height above flange 400 mm (15 in.) Electrical Power supply Ultra-wide 24–240 V DC or AC 0-60 Hz...
- Page 21 Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Measuring performance Instrument accuracy ± 3 mm (± 0.12 in.), ± 5 mm (± 0.2 in.) or ± 10 mm (± 0.4 in.) depending on model Resolution 1 mm (0.04 in.) Temperature stability ±...
-
Page 22: Product Certificates
2210 Display Unit It lists specific requirements which have to be fulfilled to secure a Certificate Number: Sira 00ATEX 2062 safe installation and use of TankRadar Pro in a hazardous area. ATEX Category Marking II 1/2 G Omission may jeopardize safety, and Rosemount Tank Radar AB... - Page 23 Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Max supply voltage: 55 VDC Max operating temperature +70 °C Passive analog output 4-20 mA, Dust ignition proof for use in Class II/III, Label identification = HART passive. ®...
-
Page 24: Ordering Information
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Ordering information Transmitter Head Item Code Description Note Transmitter Head Platinum Ex approved. Includes FHAST™. ± 3 mm (± 0.12 in.) accuracy Gold Ex approved. Includes Echofixer, FHAST™, MET™. -
Page 25: Antennas
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Requires Pos 11 “Antenna Type” code 2 and Pos 12 “Antenna Size” code 8 or Pos 11 “Antenna Type” code 4 or Pos 11 “Antenna Type” code B. Requires Pos 3 “Ex Certification” code 0. -
Page 26: Cone Antenna, Extended
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Cone antenna, extended Item Code Description Note Antenna Type Extended Cone antenna Antenna Size 3 in. (DN 80) 4 in. (DN 100) 6 in. (DN 150) Antenna Material Stainless steel EN 1.4436 (AISI 316L) -
Page 27: Cone Antenna With Integrated Purging
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Cone antenna with integrated purging Item Code Description Note Antenna Type Cone antenna with integrated purging Antenna Size 4 in. (DN 100) 6 in. (DN 150) 8 in. (DN 200) 10 in. -
Page 28: Parabolic Antenna
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Parabolic antenna Item Code Description Note Antenna Type Parabolic antenna Antenna Size Ø=440 mm. Clamped installation for low pressure applications, -0.2 to 0.2 Bar (-2.9 to 2.9 psig) Ø=440 mm. Welded installation for high pressure applications, -0.2 to 10 Bar (-2.9 to 145 psig) -
Page 29: 1- And 2-In. Still-Pipe Antennas
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 1- and 2-in. Still-pipe antennas Item Code Description Note Antenna Type 2-in. still-pipe antenna 1-in. still-pipe antenna Antenna and 3 m still-pipe integrated Antenna / 2 ½ in. (DN65), plate Nozzle Size 2 in. -
Page 30: Still-Pipe Array Antenna
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Still-pipe Array antenna Item Code Description Note Antenna Type Still-pipe Array antenna Antenna Size 5 in. 6 in. 8 in. 10 in. 12 in. Antenna Material Stainless steel EN 1.4404 (AISI 316L) and PPS... -
Page 31: Process Seal Antenna
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Process Seal antenna Item Code Description Note Antenna Type Process Seal antenna Antenna / 4 in. (DN 100) Nozzle Size 6 in. (DN 150) Antenna Material Not applicable Sealing... -
Page 32: Rod Antenna
Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 Rod antenna Item Code Description Note Antenna Type Rod antenna Antenna / Nozzle 2 in. (DN 50) Size 3 in. (DN 80) 4 in. (DN 100) 1 ½ in. NPT 1 ½... -
Page 33: Patents
158252, 158486 The Application Examples provide information on Norway 166345, 172911, 304667, TankRadar Pro usage. others pending Pro Steel & Hot describes two TankRadar Pro Saudi Arabia 21, others pending models used in high temperature applications. Slovenia Patents pending South Korea... - Page 34 Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007...
- Page 36 Technical Description 501026En, Ed. 3, Rev E TankRadar Pro July 2007 2007 Rosemount Tank Radar AB. All rights reserved.
