Rosemount 1199 Reference Manual

Seal systems
Hide thumbs Also See for 1199:
Table of Contents

Advertisement

Quick Links

Reference Manual
00809-0100-4002 Rev. BB
November 2012

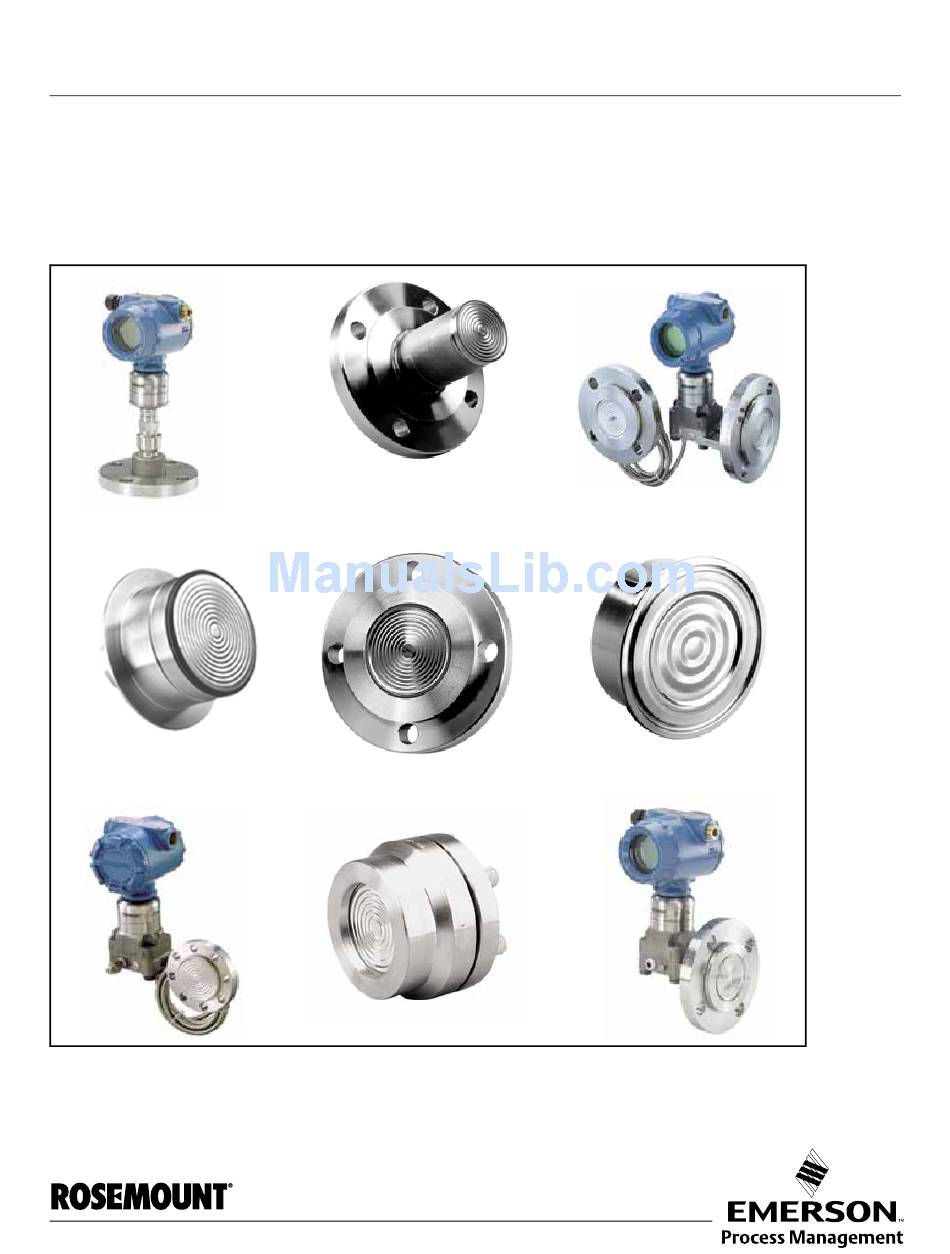

Rosemount 1199 Seal Systems Manual
