Electrical Installation

IMPORTANT!
Only qualified personnel can perform setup.
All incoming power sources must be turned off during installation. During operation of the
Powermeter, hazardous voltages are present on the input terminals. Failure to observe precautions
can result in serious or even fatal injury, or damage to equipment.
Refer to the installation and operation manual for further information.

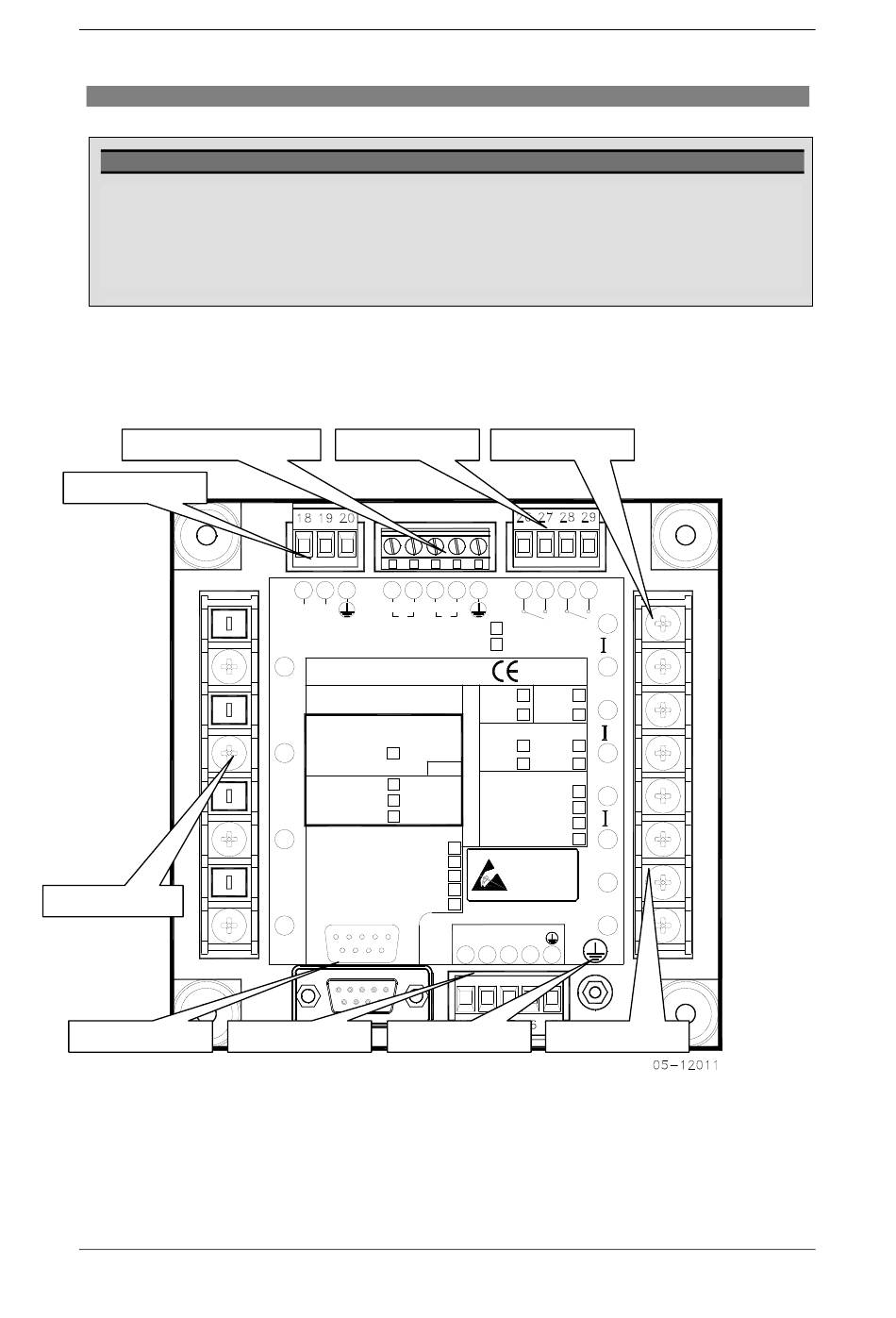

The figure below shows all the connectors and terminals on the rear side of the
PM172.
Analog Inputs/Outputs
Digital Inputs
AC Voltage Inputs
COM1 Port
The diagrams below show typical installations of the PM172.
