PM172 Quick Start Guide
Introduction
The PM172 is a compact, multi-function, three-phase AC powermeter and power
quality analyzer specially designed to meet the requirements of users ranging
from electrical panel builders to substation operators.
If you are familiar with the PM172 Powermeter, use this quick start guide to
prepare the units for operation. If you are not familiar with the PM172, read the
Installation and Operation Manual carefully before installing and using the unit.
This quick start guide does not contain information on all the features of PM172.
See the Installation and Operation Manual for full operating details and features.
Assembly Instructions

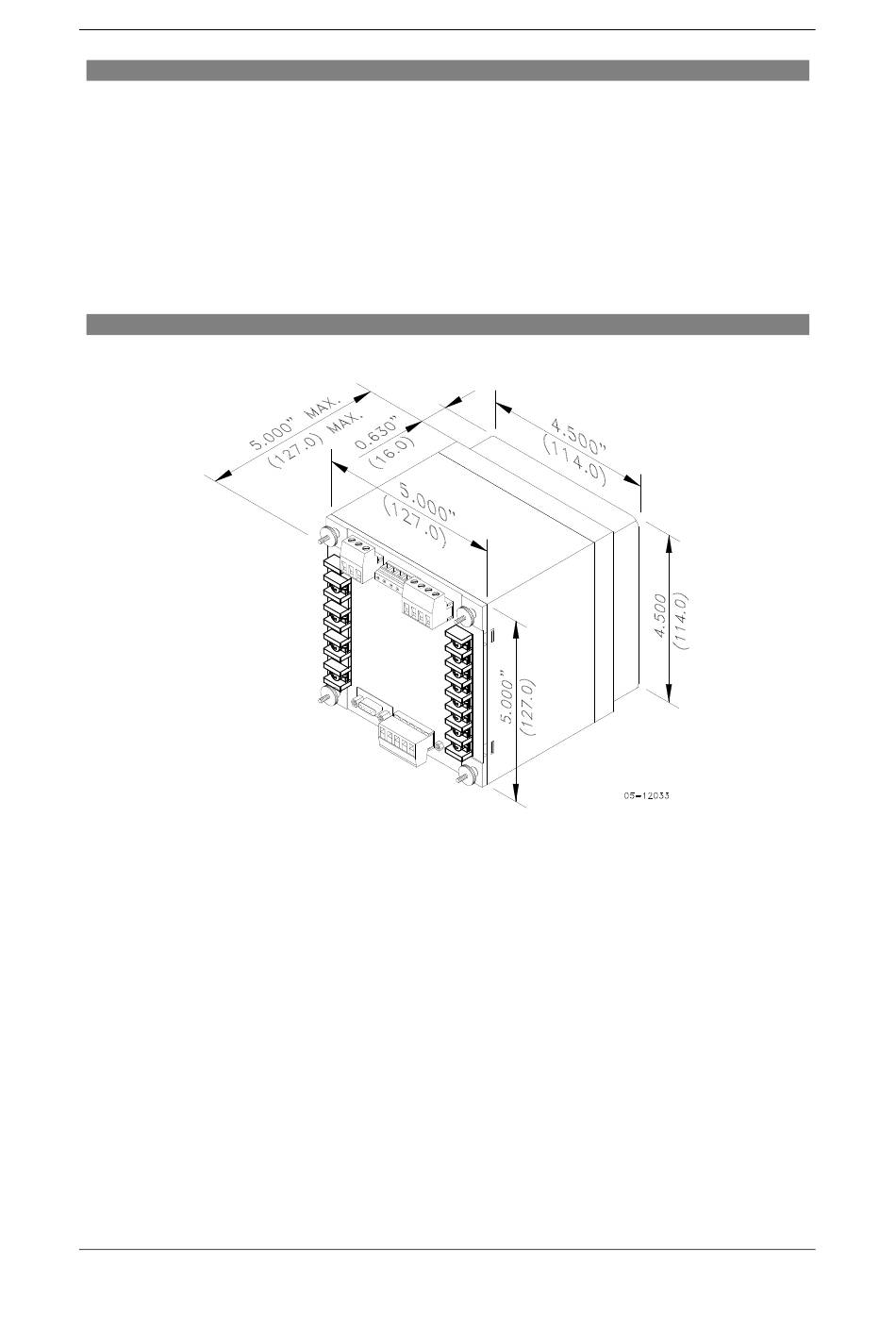

Figure 1: Instrument Dimensions
The PM172 is mounted in a standard 4-inch round or DIN92 square cutout.
