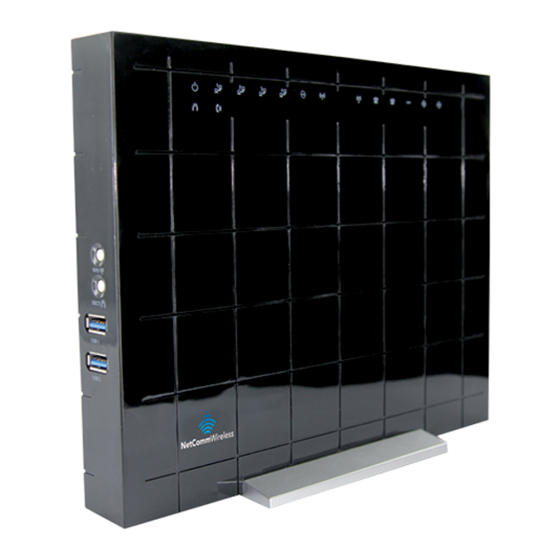

NetComm FIBRE NF1ADV Quick Start Manual

Wifi data and voip gateway
Hide thumbs Also See for FIBRE NF1ADV:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Setup Manual

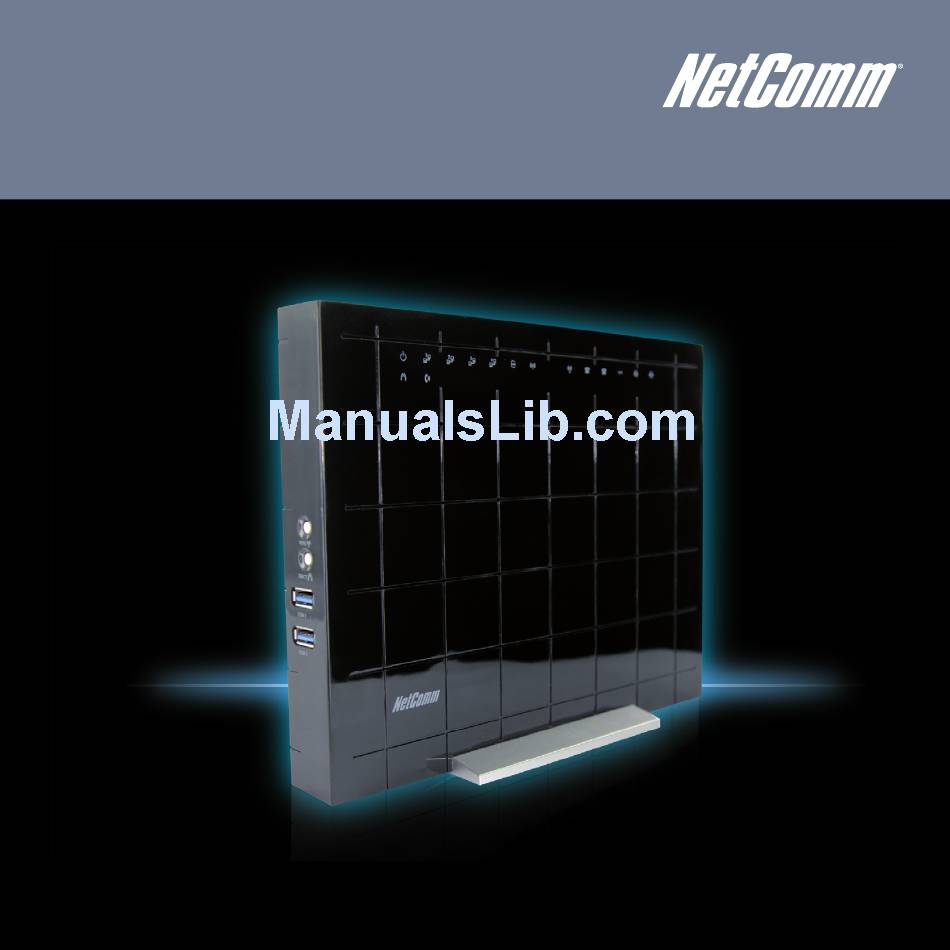

NETCOMM FIBRE™ SERIES
WiFi Data and VoIP Gateway
NF1ADV - Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIBRE NF1ADV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NetComm FIBRE NF1ADV

Summary of Contents for NetComm FIBRE NF1ADV

  • Page 1 NETCOMM FIBRE™ SERIES WiFi Data and VoIP Gateway NF1ADV - Quick Start Guide...

  • Page 2: Connecting The Cables

    Connecting the cables If you are using ADSL, connect the supplied RJ-11 cable to the DSL port on the back of your device and to the phone port that supplies your ADSL service. If you are using Fibre, connect your RJ-45 Ethernet cable from the WAN Ethernet port to your NBN supplied termination device (ONT).

  • Page 3: Login To The Web Interface

    Login to the Web Interface Open a web browser (Interet Explorer, Firefox and safari), type 192.168.1.1 into the address bar and press Enter. At the login screen, type admin (without the quotes) into both the Username and the Password fields and click OK. Click on the Basic menu at the top of the page and then click on Quick Setup.
  • Page 4 If you are connection with ADSL, select PPPoE. If you are connecting with Fibre, select IP over Ethernet. Click Next to continue. Please note: For more information about the other connection types available, please refer to the NF1ADV User Guide available on our website.
  • Page 5 Connecting with ADSL Please note: This step is for ADSL users only who have selected PPoE. For all Fibre uses who selected IP over Ethernet, please skip to the next step. Enter the User ID and Password supplied by your Internet Service Provider. Click on Next.
  • Page 6 Wireless Quick Setup The default settings that appear on the Wireless Quick Setup page are shown above. You can select to enable or disable the Wireless function by clicking the Enable Wireless checkbox. You can change your SSID. Your SSID is the name your Wireless Network will be identified by.
  • Page 7 VoIP Quick Setup Select the appropriate SIP Provider for your VOIP service from the pull down menu or alternatively, select Custom, and enter the VOIP service details as supplied by your VOIP provider. Click Next OPTIONAL If you do not wish to configure your VOIP service settings now, click Skip.
  • Page 8 Select whether you have a single or multiple SIP accounts and click Next. Please note: When using multiple SIP accounts, select the number of telephone and/or DECT devices enabled for use with these accounts. You can then click “Next” and enter the applicable VOIP service details for each specific handset. Enter the VoIP Phone Number, DisplayName, Auth ID and Auth Password as supplied by your VOIP service provider and click Next.
  • Page 9 DECT Handset Registration DECT handsets can be registered to the router to enable them to utilise the configured VoIP service. To do this, click Start Registration and then set your DECT handset to register with a base station. If you are prompted for an Access Code, enter the code shown on this page.

  • Page 10: Usb Storage

    These names can be anything you want. Once you have configured the settings as needed, click Next. To access the storage device, open a web browser and type \\Netbios Name\Directory\ For example (using the defaults) the address to access the storage device would be \\NF1ADV\USB-Storage\...

  • Page 11: Print Server

    The names will be used to identify the printer later. Click Next once you have configured the settings as needed. Please note: For more information about setting up your network printer, please refer to the NF1ADV User Guide available on our website.
  • Page 12 Passwords On this page you can change the passwords for the different levels of users. We recommend that you prevent any unauthorised access to your admin settings by changing the password. Remember to write any new passwords down so you can access them anytime in the future.

  • Page 13: Establishing A Wireless Connection

    Establishing a Wireless Connection Gaming Console Laptop Smart Phone You can connect multiple wireless devices, including laptops, desktops and PDA’s to your router by following these two basic steps. Using your wireless device, scan the wireless networks in your area and select the wireless network name listed on the included Wireless Security Card and then click connect.

  • Page 14: Troubleshooting

    Troubleshooting Cannot establish a wireless connection • Make sure the wireless switch on your laptop is in the on position. • Ensure your device and wireless adapter are using the same wireless security settings. • Make sure you are trying to connect to the correct SSID with the correct security key.
  • Page 15 Cannot access the Web UI • If you have changed your username/password and forgotten them you will need to reset your router to the factory default settings and use the default settings admin/admin How to reset your router to the factory default settings •...
