DECORATIVE GAS LOG
PLACEMENT INSTRUCTIONS
MYSTIQUE L-MY1/FF FIRE FROST &
L-MY1/AW AUTUMN WIND SERIES
If for any reason, you cannot follow these instructions, FOR
ANY REASON WHATSOEVER, just return the product to your
dealer, and the dealer will refund your money. "PLEASE" do
not use this product if you cannot follow these instructions.
GENERAL INFORMATION
BEFORE YOU BEGIN!
READ THE HEARTH KIT INSTRUCTION MANUAL,
FURNISHED WITH THE APPLIANCE.
FOLLOW ALL SAFETY AND SET UP PROCEDURES!
These instructions are intended as a general guide and do not
supersede national or local codes in any way. State or local
codes may only allow operation of this appliance in a vented
configuration. Check your state or local codes. Authorities
having jurisdiction should be consulted before installation.
!!! IMPORTANT !!!
Read these instructions carefully before installing or operating
this gas appliance. These instructions should be left with the
homeowner for future reference.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
!!! WARNING !!!
If the information in this manual is not followed exactly, a
fire or explosion may result causing property damage,
personal injury or loss of life.
ANSI Z21.11.2 – (2007) STANDARD FOR GAS-FIRED
UNVENTED ROOM HEATERS (US ONLY). 15LP
15LP
!!! WARNING !!!
Failure to position the parts in accordance with all included
pictures, diagrams, and drawings, or failure to use only parts
specifically approved with this appliance may result in property
damage or personal injury. DO NOT apply any extra material
or gas logs not furnished with this appliance.
!!! WARNING !!!
The position of the gas logs is critical to the safe and clean
operation of this appliance. Sooting and other problems may
result if the gas logs are not properly, and firmly positioned on
the appliance.
!!! IMPORTANT !!!

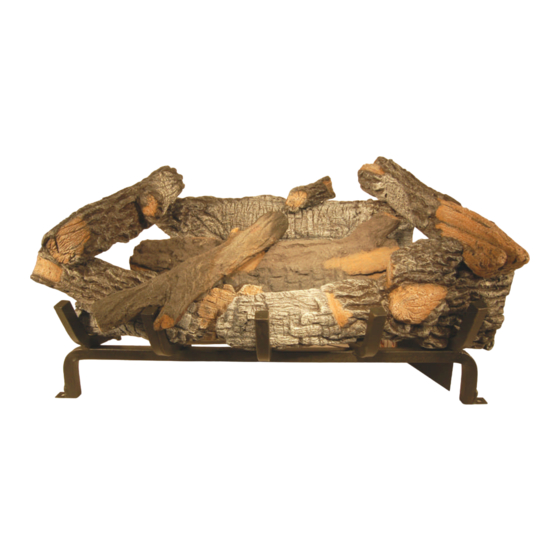

This appliance is supplied with eight ( 8 ) decorative gas logs.
Handle all gas logs with care and, it is our recommendation
that you use gloves during the set up procedures.
