Guiding Rod Shaft Sleeve 2 - Anet A8 PLUS User Manual

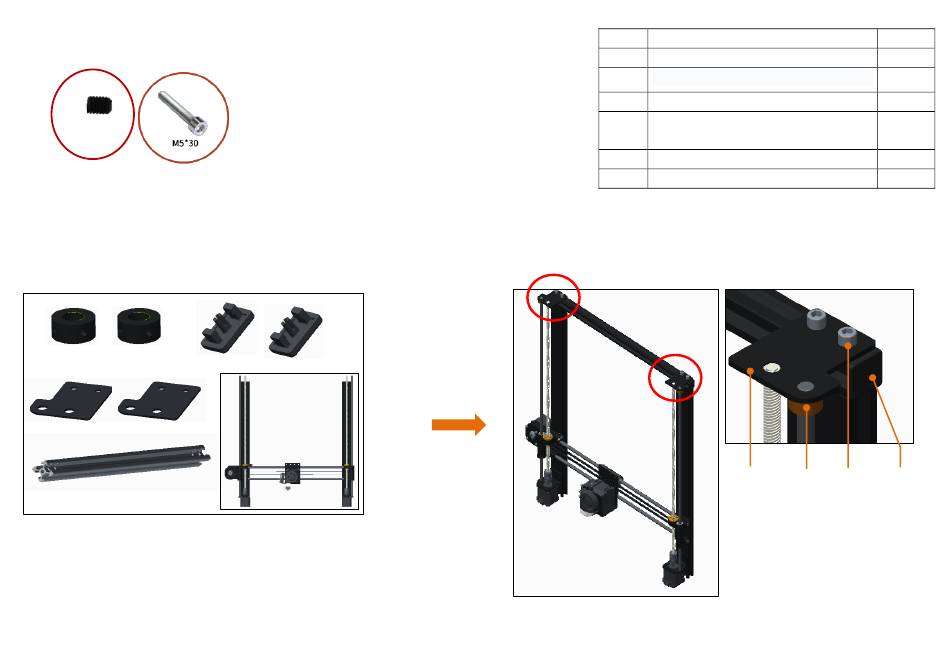

Step 19
M3*4
Before assembly
Note: Fix the guiding
rod shaft sleeve with M3*4 black jackscrew
No. Name
1 Guiding rod shaft sleeve
M3*4 Black jackscrew M3*4
2
3 Z axis guiding rod fixed plate
M5*30 Socket hexagon cylindrical head
4
screw
5 End cap
6 X axis aluminum profile 472mm
After assembly
Z axis
Guidi
guiding
ng rod
rod
shaft
fixed
sleev
plate
Qty.
2
4
2
4
2
1
M5*30
End
cap
e
