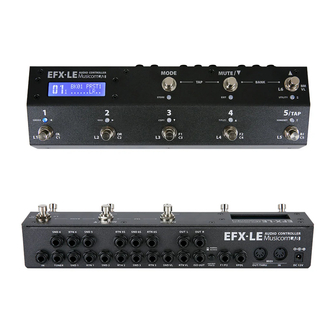

EFX - LE
A u d io C o n t r o lle r
OWNER'S MANUAL
Version 1.4x

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EFX - LE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Musicom Lab EFX - LE

Summary of Contents for Musicom Lab EFX - LE

  • Page 1 EFX - LE A u d io C o n t r o lle r OWNER'S MANUAL Version 1.4x...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1.1 Main Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1.2 Specifications...

  • Page 3: Introduction

    1. Introduction Thank you for purchasing the Musicom Lab EFX-LE Audio Controller. The EFX-LE Audio Controller is the ultimate floor-based switching system. It is a compact, easy to use, has 7 fully programmable loops, 2 function switches and a MIDI foot controller.

  • Page 4: Specifications

    250 mA (DC12V Center Negative) • Dimensions ..........320 mm(W) x 96 mm(D) x 68 mm(H) 12.6 inches(W) x 3.8 inches(D) x 2.7 inches(H) • Weight ............. 1,130 g / 2.5 lbs 1.3 Block Diagram EFX - LE Audio Controller Owner's Manual...

  • Page 5: Front Panel

    Line 2 - g to l indicate which of the 6 audio loops are currently active. Line 2 - m and n indicate which of the two audio outputs are active. Line 2 - o and p indicate which of the 2 function switches are currently active. EFX - LE Audio Controller Owner's Manual...

  • Page 6: Rear Panel

    MIDI IN pass through the EFX-LE without any changes. DC12V Power Connector This is the main power input for the EFX-LE. The EFX-LE requires a DC12V supply. The current draw is approximately 250mA at DC12V (Center Negative). EFX - LE Audio Controller Owner's Manual...

  • Page 7: Basic Operation

    Pressing the switch of a preset that is already on selects the global preset and will cause the LED above the switch to be turned off. To enable/disable the Global Preset, refer to the GLOBAL PRESET on the page 30 of the manual. EFX - LE Audio Controller Owner's Manual...

  • Page 8: Instant Access (Ia) Mode

    Pressing & holding the MODE switch for 1 second will store the edit and return to the Preset mode. For the other side, pressing the MODE switch will move to the IA1 Mode. ▼ Pressing the MUTE/ switch will return to the Preset mode without storing the edit. EFX - LE Audio Controller Owner's Manual...

  • Page 9: Mute

    • Line 1 - e to p indicate a song title. • Line 2 - e indicates a preset number(1 to 5) within the song. • Line 2 - g to p indicate the on/off status of loops, outputs and function switches. EFX - LE Audio Controller Owner's Manual...

  • Page 10: Set Mode

    Pressing the switch of a preset that is already on selects the global preset and will cause the LED above the switch to be turned off. To enable/disable the Global Preset, refer to the GLOBAL PRESET on the page 30 of the manual. EFX - LE Audio Controller Owner's Manual...

  • Page 11: Setup Mode

    • Line 1 – a to f indicate the bank number and preset that you want to edit. • Line 2 - a to p indicate the loop structure of the preset. Mono connection Stereo connection EFX - LE Audio Controller Owner's Manual...

  • Page 12: Changing The Effect Loop Connection Order

    ① Use the 1 or 2 switch to move the cursor to loop 3. ② Press 4 switch to move the loop 3. ③ Press the MODE switch to store this edit. You can change other connection orders in the same way. EFX - LE Audio Controller Owner's Manual...

  • Page 13: Making A Parallel Connection

    ① Use the 1 or 2 switch to move the cursor to loop 6. ② Press the 5/TAP switch to specify the Spill Over. ③ Press the MODE switch to store this edit. You can change other Spill Over in the same way. EFX - LE Audio Controller Owner's Manual...

  • Page 14: Midi Menu

    000 to 127, PDL or OFF ↕ VM (Value Max.) 000 to 127 ↕ Vm (Value Min.) 000 to 127 ↕ SEL (Select) GLB (Global) or PST (Preset) ↕ 40 to 209 or OFF EFX - LE Audio Controller Owner's Manual...
  • Page 15 When the cursor is at the Line 1 - p : Scrolling PC.1 to BPM by 5. When the cursor is at the other positions : Decreasing/increasing a value by 10. STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ Returning to the MIDI menu. EFX - LE Audio Controller Owner's Manual...
  • Page 16 When the cursor is at the Line 1 - p : Scrolling PC.1 to BPM by 5. When the cursor is at the other positions : Decreasing/increasing a value by 10. STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ Returning to the MIDI menu. EFX - LE Audio Controller Owner's Manual...

  • Page 17: Global Midi

    1. If CC #(numbers) of CC.L1 to CC.L6 are not OFF, the assigned audio loops are always bypassed. 2. The CC.MT is the MIDI CC message is sent when the mute function is On/Off. EFX - LE Audio Controller Owner's Manual...
  • Page 18 When the cursor is at the Line 1 - p : Scrolling CC.L1 to IN/OUT by 5. When the cursor is at the other positions : Decreasing/increasing a value by 10. STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ Returning to the MIDI menu. EFX - LE Audio Controller Owner's Manual...

  • Page 19: Copy Menu

    3 & 4 Decreasing/increasing a bank. ▲ 5/TAP & BANK Decreasing/increasing a bank by 10. STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ Returning to the COPY menu. EFX - LE Audio Controller Owner's Manual...

  • Page 20: Song Copy

    3 & 4 Decreasing/increasing a set. ▲ 5/TAP & BANK Decreasing/increasing a set by 10. STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ Returning to the COPY menu. EFX - LE Audio Controller Owner's Manual...

  • Page 21: Titles Menu

    When the cursor is at the other positions : Moving through the available other characters. ▲ 5/TAP & BANK STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ Returning to the TITLES menu. EFX - LE Audio Controller Owner's Manual...

  • Page 22: Song Titles

    When the cursor is at the other positions : Moving through the available other characters. ▲ 5/TAP & BANK STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ Returning to the TITLES menu. EFX - LE Audio Controller Owner's Manual...

  • Page 23: Song/Set Menu

    When the cursor is at the Line 2 - d : Decreasing/increasing a BPM by 10 STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ Returning to the Song/Set menu. EFX - LE Audio Controller Owner's Manual...

  • Page 24: Set Edit

    When the cursor is at the Line 1 - o : Decreasing/increasing a song number by 10 STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ Returning to the Song/Set menu. EFX - LE Audio Controller Owner's Manual...

  • Page 25: Utility Menu

    ---- ↕ BPM DISPLAY OFF or ON ---- ↕ GROUP SELECT NO ASSIGN or C1 TO C2 to C1 TO C5 ---- ↕ MIDI SYSEX DATA ↕ FACTORY RESET OFF to UTILITY ---- EFX - LE Audio Controller Owner's Manual...

  • Page 26: Operation Mode

    When the cursor is at the Line 1 - p : Moving a UTILITY menu by 5. STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ Exiting to the UTILITY menu. EFX - LE Audio Controller Owner's Manual...

  • Page 27: Mute Position

    When the cursor is at the Line 1 - m : Moving a UTILITY menu by 5. STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ exiting to the UTILITY menu. EFX - LE Audio Controller Owner's Manual...

  • Page 28: Tempo Sync With

    When the cursor is at the Line 2 – p : Decreasing/increasing a value by 5. STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ exiting to the UTILITY menu. EFX - LE Audio Controller Owner's Manual...

  • Page 29: Func. Switch

    When the cursor is at the Line 1 - j : Moving a UTILITY menu by 5. STORE (MODE) Storing any changes made while in this menu. ▼ EXIT (MUTE/ exiting to the UTILITY menu. EFX - LE Audio Controller Owner's Manual...

  • Page 30: Lp6 Send.r Split

    This sub-menu allows you to turn on a specific loop when activating the mute function. This function is useful when using the Eventide H9 tuning function in the loop. • Line 2 - h to p indicate the NO ASSIGN or LOOP1 to LOOP6. EFX - LE Audio Controller Owner's Manual...

  • Page 31: Bpm Display

    When the corresponding IA switches are grouped, the ON/OFF combination of these switches is not stored into internal memory and is used only for MIDI transmission through IA3 page. The switches specified in groups only transfer MIDI CC On Value, The MIDI CC Off Value is not sent. EFX - LE Audio Controller Owner's Manual...

  • Page 32: Midi Sysex Data

    5/TAP & BANK When the cursor is at the Line 1 - m : Moving a UTILITY menu by 5. STORE (MODE) Starting the factory default setting. ▼ EXIT (MUTE/ exiting to the UTILITY menu. EFX - LE Audio Controller Owner's Manual...

  • Page 33: Cables

    The cable required is a stereo (TRS) to two mono 1/4" phone plugs. Connect the tip(stereo plug) to the pedal input, ring to the pedal output and sleeve to ground on all 3 plugs. EFX - LE Audio Controller Owner's Manual...

  • Page 34: Midi In Specification

    VALUE RANGE LOOP1 OFF(0-63) ON(64-127) OUT-L OFF(0-63) ON(64-127) LOOP2 OFF(0-63) ON(64-127) OUT-R LOOP3 OFF(0-63) ON(64-127) LOOP4 OFF(0-63) ON(64-127) FUNC.SWITCH1 OFF(0-63) ON(64-127) LOOP5 OFF(0-63) ON(64-127) FUNC.SWITCH2 OFF(0-63) ON(64-127) LOOP6 OFF(0-63) ON(64-127) VOL. LOOP OFF(0-63) ON(64-127) EFX - LE Audio Controller Owner's Manual...

  • Page 35: Connection Examples

    7. CONNECTION EXAMPLES Basic Mono Connection Mono Connection for 2 Amps EFX - LE Audio Controller Owner's Manual...
  • Page 36 Mono Connection for 4CM Basic Stereo Connection EFX - LE Audio Controller Owner's Manual...
  • Page 37 Wet/Dry Connection Wet/Dry/Wet Connection EFX - LE Audio Controller Owner's Manual...
  • Page 38 Musicom Lab warrants this product against any defects that are due to defective parts or faulty workmanship for a period of one year from the date of original retail purchase. During this one year period, Musicom Lab will repair it without charge for parts or labor.
