Musicom Lab MVC User Manual

USER MANUAL
( Ver 1.0 )
Features
Programmable All-analog VCA (Voltage Controlled Amplifier) circuit
◆
128 steps audio volume control
◆
◆ 128 presets respond to MIDI Program Change Messages
Discrete volume change responds to MIDI Continuous Controller
◆
Values
Instrument / Line audio level switch
◆
Three character LCD display for easy viewing of the audio level
◆
◆ 30 clicks rotary encoder(/w switch) for easy changing of the value
Powered by regulated 12V DC (approx. 60mA)
◆
Aluminium enclosure 125 W x 80 D x 60 H (mm)
◆
Weight : 250 g
◆

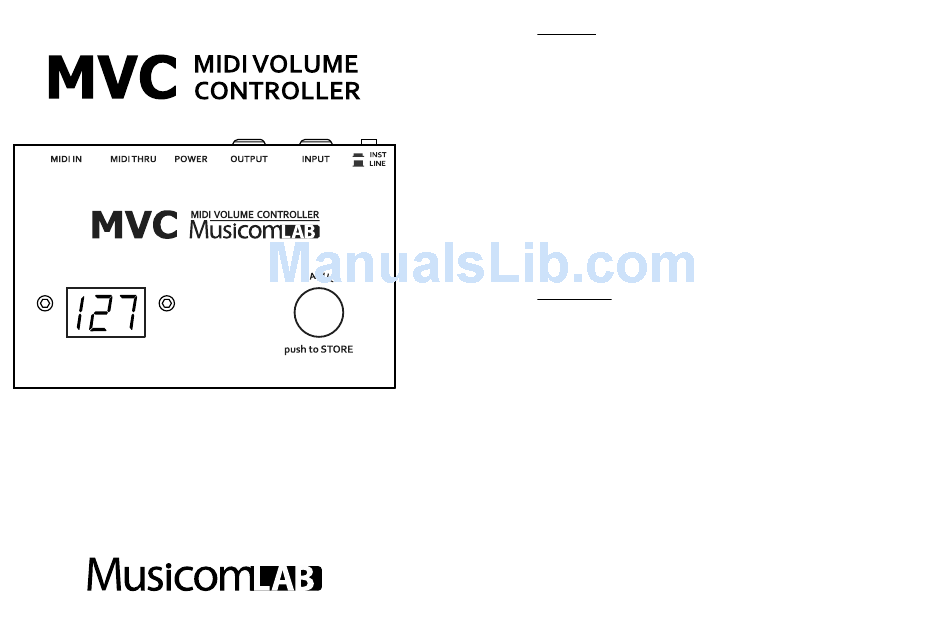

Description
INPUT : This is an input jack for guitar or external audio
signal.
OUTPUT : This is an output jack for an audio signal. Connect
to your amplifier or other external device.
MIDI IN : This is a 5-Pin DIN jack that allows the MVC to
receive MIDI commands from an external MIDI
device.
MIDI THRU : This is a 5-Pin DIN jack that passes MIDI commands
to received by MIDI IN jack to other MIDI devices.
LEVEL SWITCH : This switch is provides selection for the rate input
level (Instrument / Line).
POWER : This is a
Regulated 12VDC, 60mA (can use in Voodoo Lab
Pedal Power ACA mode)
DISPLAY : This LCD displays the volume control (0 - 127) or
MIDI channel (1 - 16).
VALUE : By rotating the knob, you can modify an volume
control or MIDI channel. By pressing th knob, you
can store a volume control or MIDI channel.
standard 5.5mm/2.1mm barrel jack.
