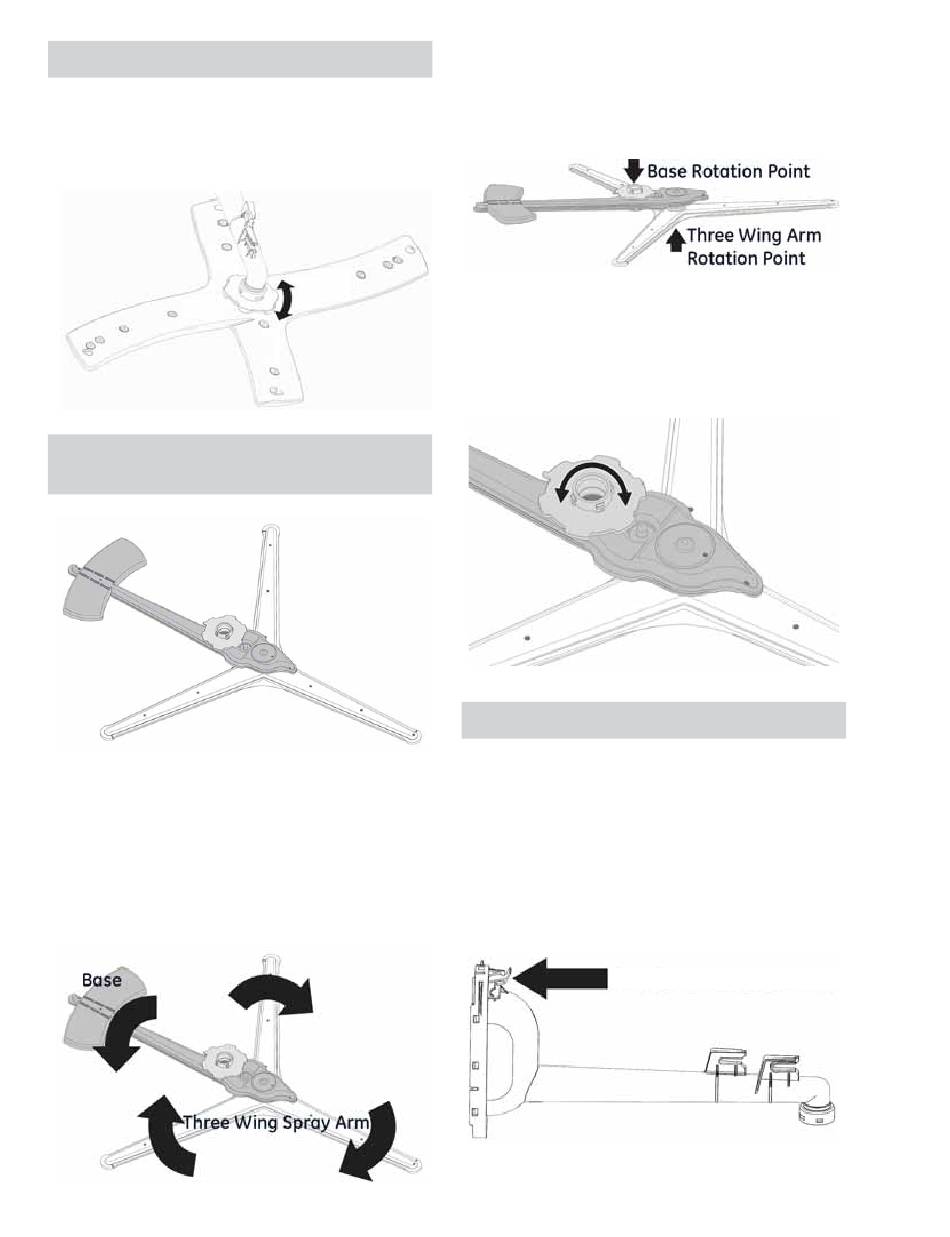

Middle Spray Arm

The Mid Spray Arm provides an upward directed
spray pattern to the upper rack. To remove the mid
spray arm, turn the nut clockwise (looking down
through the upper rack).
Clean Sweep Jets Middle Spray Arm Model
(PDT846SSJ only)
Clean Sweep Jets Middle Spray Arm has 2
counter rotating components available as one
part. The base portion of the assembly has a
counterclockwise rotation (as viewed from above)
and has a paddle appearance (shown as a shaded
part). The three wing appearance portion of the
assembly rotates clockwise (as viewed from above)
the spray arm is internally gear driven.
The three wing part of the assembly is mounted to
the base assembly and not centered to the rack. It
will have an elliptical rotation allowing the spray
pattern to position spray jets to each corner of the
upper rack.
The assembly mounts to the middle conduit with
the same style twist lock nut as other models in this
guide. To remove, turn the mounting nut clockwise
as looking from above and counterclockwise to
install.

Middle Conduit

The Mid-level Conduit supplies water from the main
conduit to the mid spray arm and bottle wash
feature (some models). All models have adjustable
racks. An adjustable conduit is used to allow proper
engagement of the main conduit to the mid conduit
in both rack positions.
To the remove Mid Conduit, push on the tab and
slide the conduit to the back of the rack.
Push tab to release conduit
(Continued next page)
Page 78
