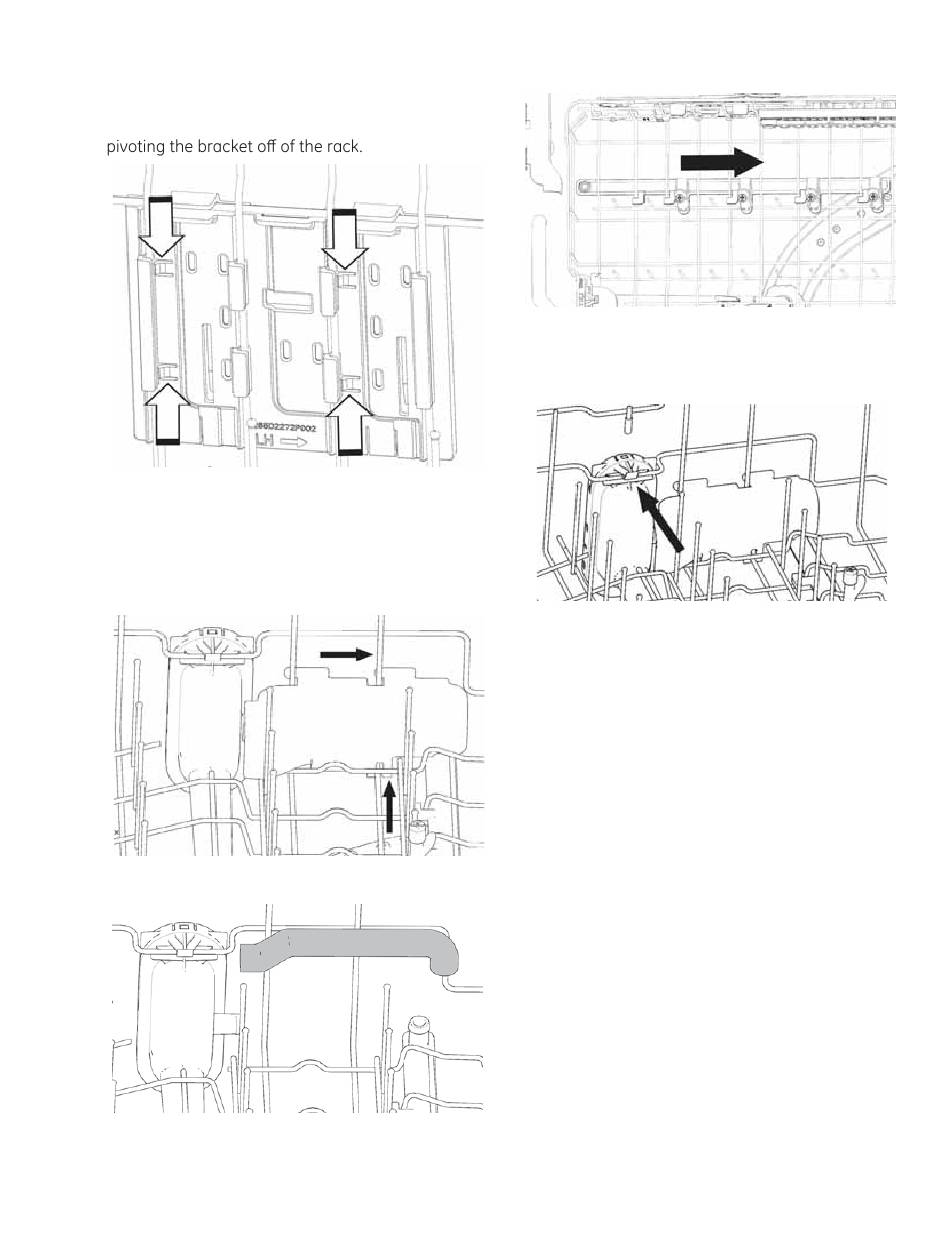

Stationary Bracket
The bracket is snapped onto the rack, and can be
removed by pressing in on 4 tabs to release and
sliding the bracket to the front of the rack, then
Bottle Wash Components
To remove the Bottle Wash Components:
1. Remove the cover by releasing the clip at the
bottom and slide the cover to the right.
2. Disconnect the hose.
3. Slide the bottle wash manifold to the front of the
rack.
4. To the remove Mid Conduit, push on the tab and
slide the conduit to the back of the rack.
