CTEK D250S DUAL Manual page 7

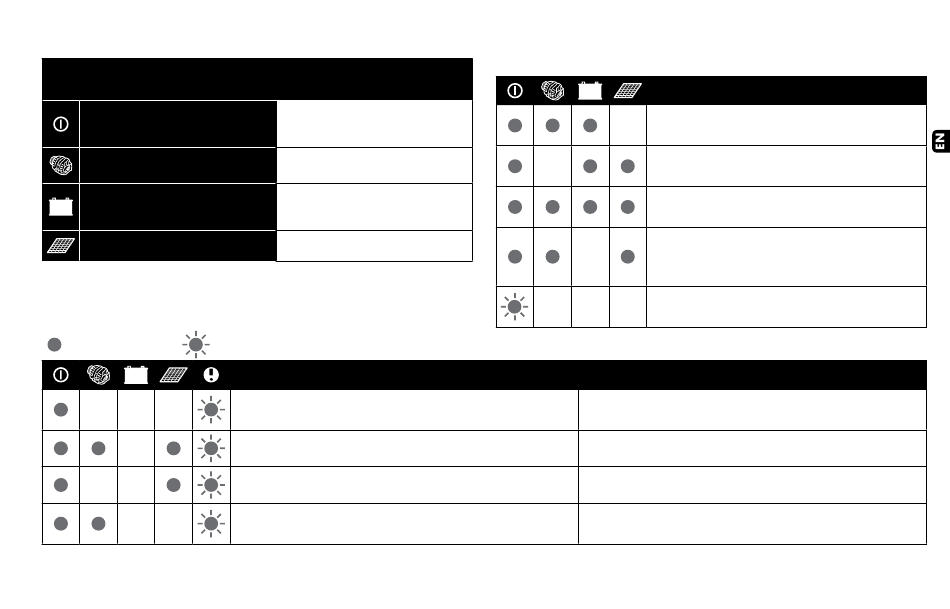

D250S DUAL LAMP FUNCTION
LAMP
Power lamp
Alternator battery lamp
Service battery lamp
Solar panel lamp
D250S DUAL LAMP ERROR INDICATION
Steady lamp
20020400A D250S Dual SMARTPASS manual EU_US, print file, Print file 001.indd 9
FUNCTION
D250S DUAL connected
correctly, ready to use
Alternator running
Charging of Service
battery
Solar panel in operation
Flashing lamp
ExPLANATION
High temperature detected at either unit or ser-
vice battery
Service battery connection problem detected
Service battery connection problem detected
Service battery connection problem detected
D250S DUAL LAMP INDICATION
DURING NORMAL OPERATION
LIT wITh A STEADY GLOw
Service battery charged by the
alternator
Service battery charged by the solar
panel
Service battery charged by both the
alternator and solar panel
Service battery fully charged.
Alternator battery maintained by the
solar panel
When the Power lamp flickers, the unit
is in power saving mode
RECOMMENDATION
Consider relocationg unit and/or service battery
Check Service battery connection and fuse
Check Service battery connection and fuse
Check Service battery connection and fuse
