CONNECTING AC/DC ChARGERS
SITUATION
230/110 V charger for the Service and
Starter battery.
PROBLEM
The 230/110 V charger should charge
both the Service and the Starter bat-
tery, and be synchronized with all other
energy sources.
INSTALLATION ShEET 6
20020400A D250S Dual SMARTPASS manual EU_US, print file, Print file 001.indd 21

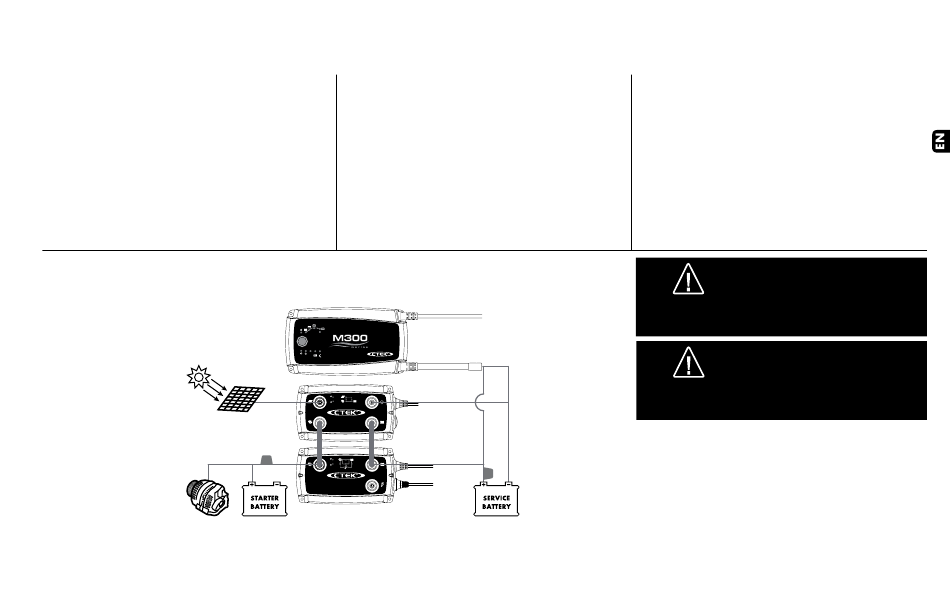

SOLUTION
The single output 230/110V charger is
connected directly to the Service battery.
The Starter battery is pulse charged
through SMARTPASS.
The solar panel will also maintaince
charge the Starter battery through
SMARTPASS.
12V
RECOND
MODE
NORMAL RECOND NIGHT
+IN
12V
D250S DUAL
+IN +OUT
+IN +OUT
12V SMARTPASS
+OUT
TIP 6
See Tip 1, Tip 2, Tip 4 and Tip 5
The battery cables of the 230/110 V
charger are connected directly to the
Service battery.
WARNING!
•Max 23 V input
•Do not connect two solar panels in series
WARNING!
D250S DUAL and SMARTPASS is not
reverse polarity protected
EN • 21
