Page 1: Battery Charger

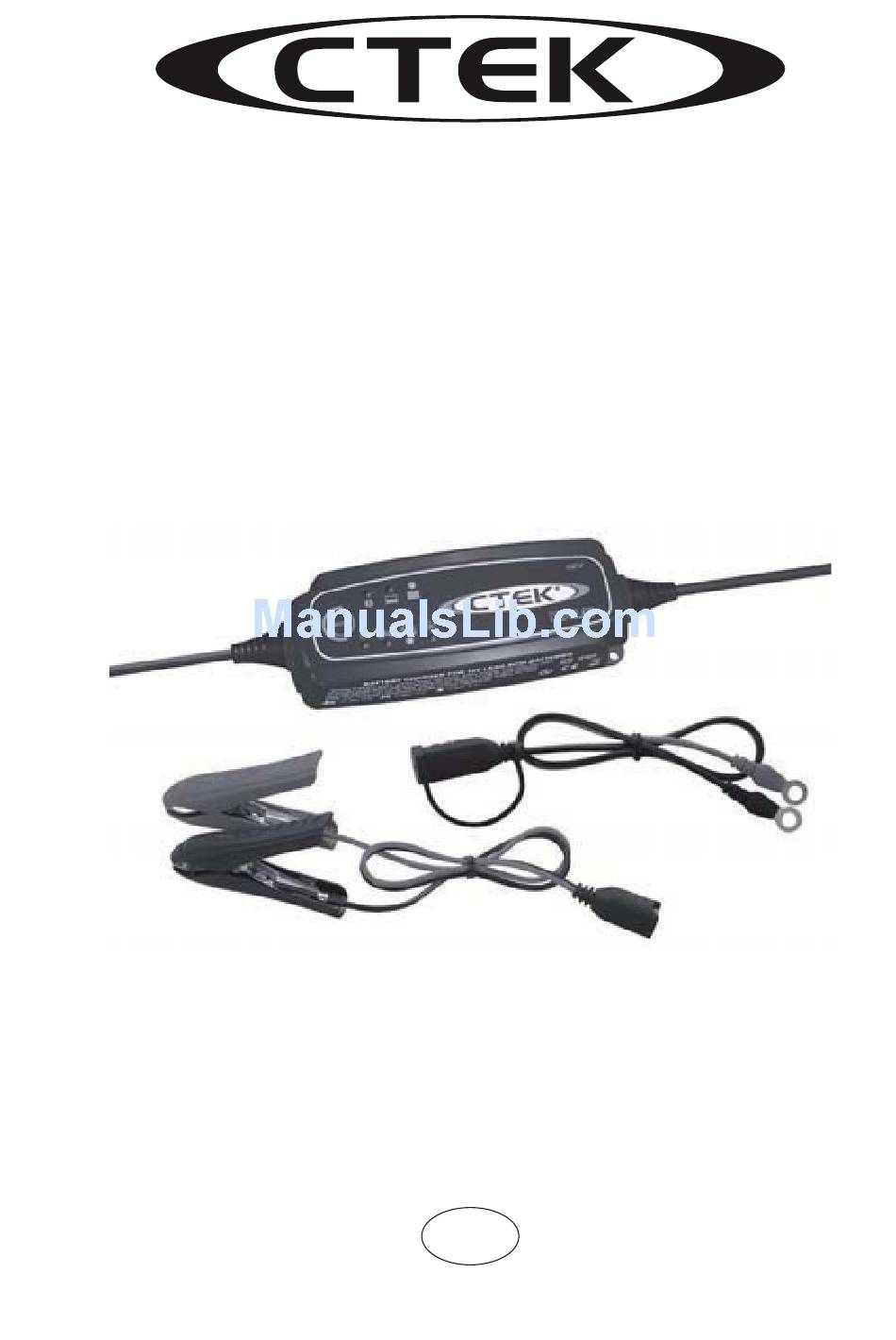

® ZAFIR 45 Battery charger For lead-acid batteries 1,2-90Ah User’s Manual and a guide to professional battery charging For Starter/Deep Cycle batteries... - Page 2 Pulse Maintenance. ZAFIR 45 is a member of a family of professional chargers from CTEK Sweden AB. It represents the state-of-the-art technology for battery charging. A ZAFIR 45 will prolong the lifetime of your battery. Read this user manual and follow the instructions carefully before using the charger.
-
Page 3: Battery Types And Settings
BATTERY TYPES AND SETTINGS ZAFIR 45 can easily be configured to charge many different types of 12V lead-acid batteries; wet batteries, MF, AGM och for most GEL-batteries. The following recommendations should, however, only be seen as guidelines. When in doubt, always consult the battery manufacturer for further instructions. - Page 4 Connecting the provided cables with eyelet terminals: Make sure that the cable is not being pinched or in contact with warm surfaces or sharp edges. When the cable is mounted on the battery, it should not be connected to the charger. Connect the eyelet terminals to the battery's poles - the red cable to the positive pole and the black cable to the negative pole.
-
Page 5: Charging Phases
The case can be cleaned with a soft damp cloth and mild cleanser. The charger should be disconnected from the power while cleaning. EQUIPMENT ZAFIR 45 is delivered with a set of battery leads with battery pole clamps and a set of battery leads with eyelet terminals. -
Page 6: Technical Specification
**) Quality of the current and voltage are very important. High current ripple heats up the battery and makes the positive electrode age prematurely. High voltage ripple could harm other equipment connected to the battery. ZAFIR 45 produces a high quality current and voltage with very low ripple. -
Page 7: Bulk Charging Time
MANUFACTURER’S DECLARATION CTEK SWEDEN AB, Rostugnsvägen 3, 776 70 VIKMANSHYTTAN, SWEDEN. Declares under sole responsibility that the battery charger ZAFIR 45, to which this declaration relates is in conformity with the following LVD standards: EN60335-1, EN60335-2-29 according to the terms of directive 2006/95/EG.
