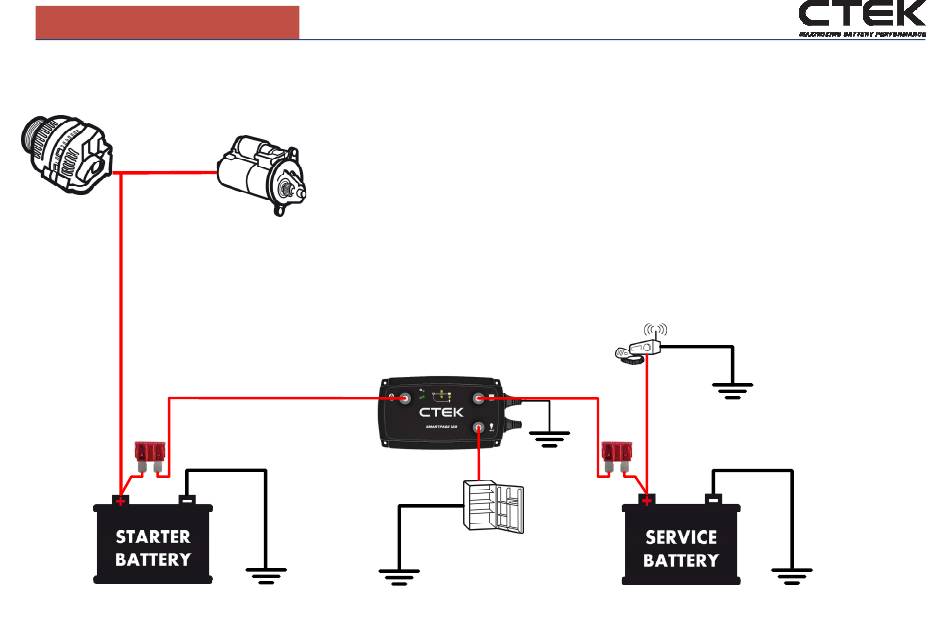

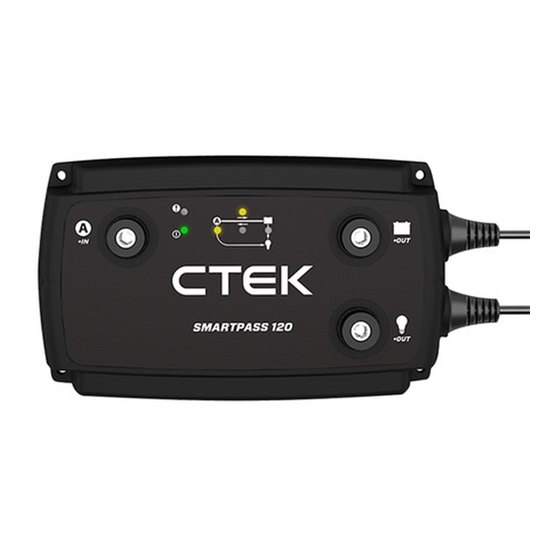

- Page 1 Title: SMARTPASS 120 Date: 2017-12-19 Version: 1.0 Alternator Starter Motor Critical Consumers Fuse* Fuse* Non-Critical Consumers * Fuse recomended. Please verify directive for applicable installation regarding fuses...
- Page 2 Please verify directive for applicable installation assist, if the starter battery on its own is unable to start regarding fuses. the engine. After the start assistance function has been activated, SMARTPASS 120 will display a fault Service battery: Wiring: indication until starting has been Size 28Ah to 800Ah.
- Page 3 Date: 2017-12-19 Title: SMARTPASS 120 with Charger at Service battery Version: 1.0 Alternator Starter Motor Critical Consumers Fuse* Fuse* Non-Critical Consumers * Fuse recomended. Please verify directive for applicable installation regarding fuses...
- Page 4 After the start assistance function If fuses are used, mount the fuses as close to each Attach the temperature sensor onto the service battery. has been activated, SMARTPASS 120 will display a fault battery as possible. indication until starting has been Suitable fuse size: achieved without using the start assistance function.
- Page 5 Date: 2017-12-19 Title: SMARTPASS 120 with Charger at Starter battery Version: 1.0 Alternator Starter Motor Critical Consumers Fuse* Fuse* Non-Critical Consumers * Fuse recomended. Please verify directive for applicable installation regarding fuses...
- Page 6 After the start assistance function Temperature sensor: Battery charger (AC): has been activated, SMARTPASS 120 will display a fault Attach the temperature sensor onto the service battery. When regular discharge on both Service and Starter indication until starting has been battery, a Battery charger required.
- Page 7 Date: 2018-10-17 Title: D250SA trailer application Version: 1.0 Alternator Starter Motor Fuse* Fuse* Fuse* Fuse* * Fuse recomended. Please verify directive for applicable installation regarding fuses...
- Page 8 Wiring: Size 40Ah to 300Ah. If Service battery is bigger than Please see instruction manual for suitable dimensions. 100Ah, a SMARTPASS 120 is recommended together Please verify directive for applicable installation with D250SA to shorten the charging time. SMARTPASS regarding wiring.
- Page 9 Date: 2016-04-18 Title: Liftgate DC/DC charger Version: 1.0 Starter Motor Alternator Solar Panel 7-Way connector Pin 4 = Aux 12V+ Pin 1 = Ground Fuse* Fuse* * Fuse recomended. Please verify directive for applicable installation regarding fuses...
- Page 10 Date: 2016-04-18 Title: Liftgate DC/DC charger Version: 1.0 Wiring: Input: Up to 30th = AWG 8. Up to 60th = AWG 4 Output : AWG 10. Max 6th Negative: Up to 30th = AWG 8. Up to 60th = AWG 4. Or connect to groun/chassis.
- Page 11 Date: 2017-05-08 Title: Bow thruster Version: 1.0 Starter Motor Alternator Fuse* Fuse* Fuse* Fuse* * Fuse recomended. Please verify directive for applicable installation regarding fuses...
- Page 12 Service battery: Please see instruction manual for suitable dimensions. You can choose between 14.4V and 14.7V (AGM) on Size: 40Ah to 800Ah. (D250SA and SmartPass 120) Please verify directive for applicable installation D250SA. Batteries are connected in parallel to increase capacity regarding wiring.
