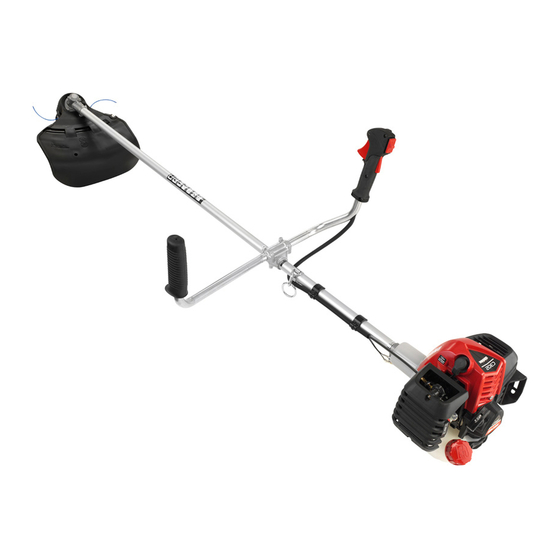

GRASS TRIMMER
/ BRUSH CUTTER
Operator's Manual
Specifications, descriptions and illustrative material in this literature are as
accurate as known at the time of publication, but are subject to change
without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Read and understand all provided literature before
use. Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-2/NMB-2
X7502350400
© 5/2018 ECHO Inc.
C302
