Read this manual and familiarize yourself with its contents.
WARNING!
This machine is designed for cutting grass, weed, and bushes. Do
not use this machine for other purposes.
Minimize the risk of injury to yourself and others.
Do not operate or service this machine unless you clearly
understand this manual.
Keep this manual at a particular place so that you can reread it
whenever you have a question about its use.
SHINDAIWA OWNER'S/OPERATOR'S MANUAL

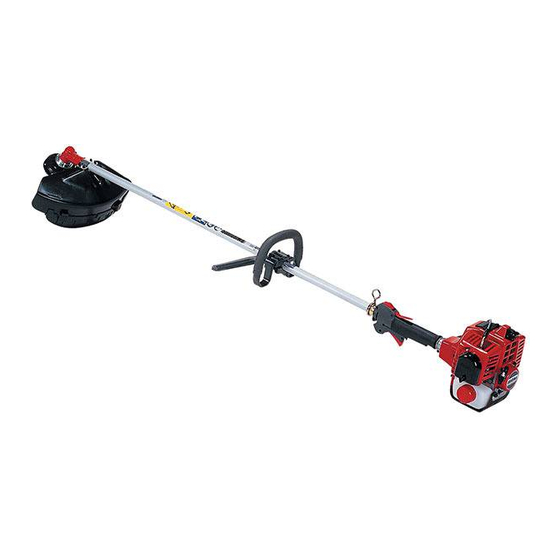

T300 GRASS TRIMMER
C300 BRUSHCUTTER
Part Number 62093-94312 Rev. 10/04
T300
C300
