Introduction

2.1 Control Buttons

There are four "push type" control buttons and one "thumb pad rocker type" multi-directional
button located on the right side of the Diagnostic Tool. All other Diagnostic Tool operations are
controlled through the touch screen.
Item
1
2
3
4
5
Button Description
a
Y/ or Accept - Push
type button
Directional - Thumb
pad rocker type buttons
N/X
or Cancel - Push
type button
S (Shortcut) - Push type
button
Power (On/Off) - Push
type button

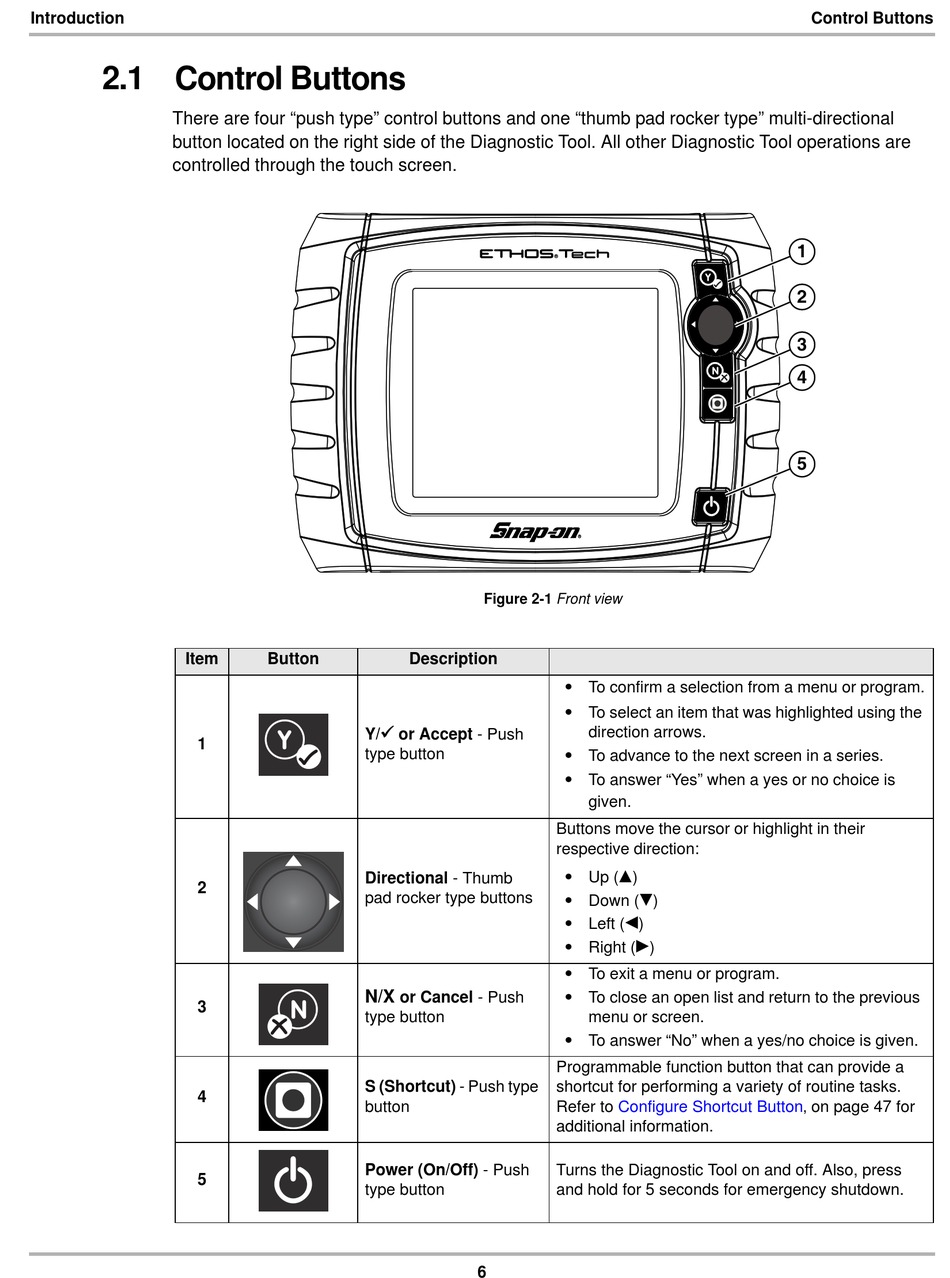

Figure 2-1 Front view
•
To confirm a selection from a menu or program.
•
To select an item that was highlighted using the
direction arrows.
•
To advance to the next screen in a series.
• To answer "Yes" when a yes or no choice is
given.
Buttons move the cursor or highlight in their
respective direction:
b
•
Up ( )
d
•
Down ( )
e
•
Left ( )
c
• Right ( )
•
To exit a menu or program.
•
To close an open list and return to the previous
menu or screen.
•
To answer "No" when a yes/no choice is given.
Programmable function button that can provide a
shortcut for performing a variety of routine tasks.
Refer to Configure Shortcut
additional information.
Turns the Diagnostic Tool on and off. Also, press
and hold for 5 seconds for emergency shutdown.
6
Control Buttons
Button‚ on page 47 for
