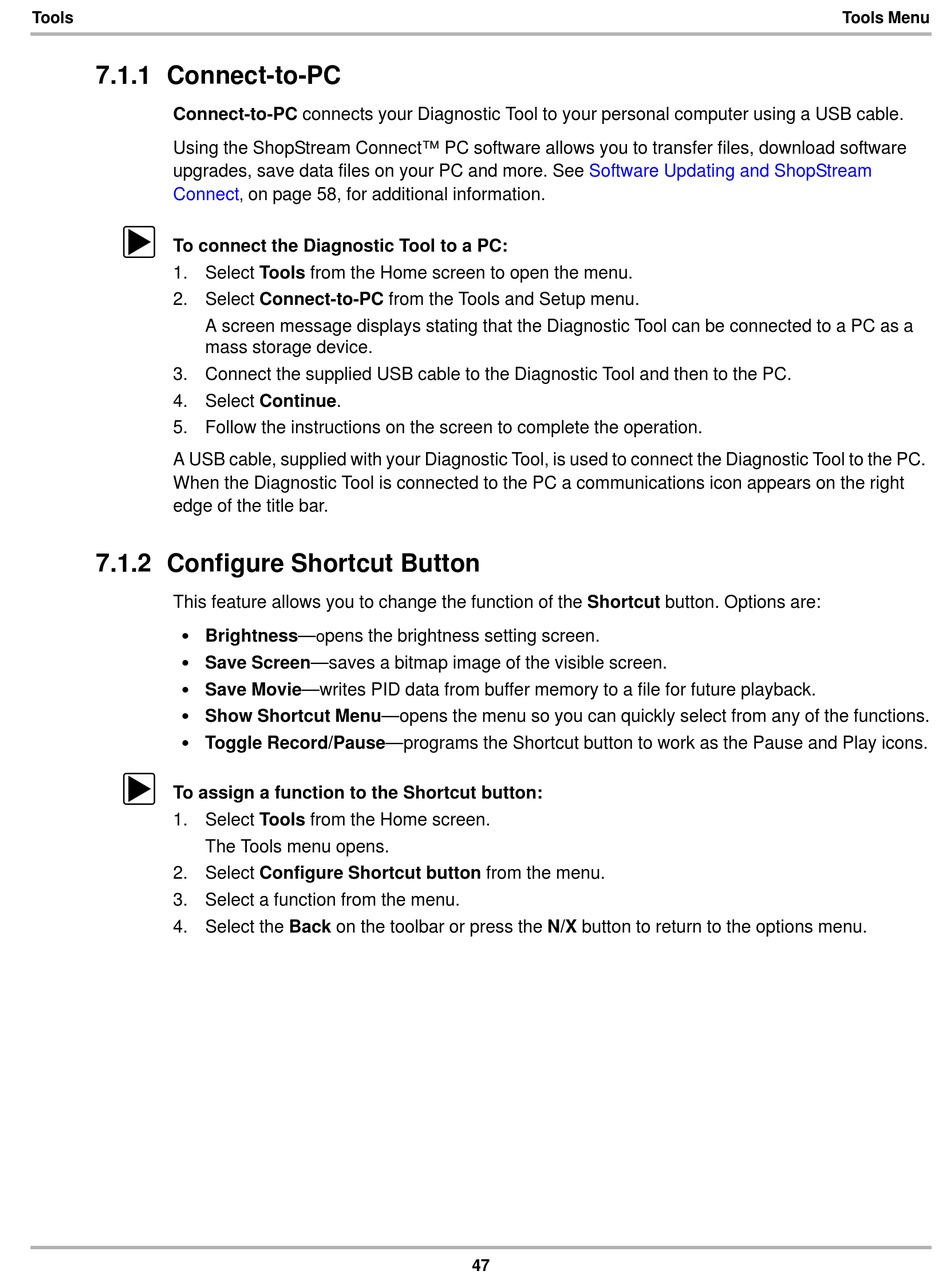

7.1.1 Connect-to-PC

Connect-to-PC connects your Diagnostic Tool to your personal computer using a USB cable.
Using the ShopStream Connect™ PC software allows you to transfer files, download software
upgrades, save data files on your PC and more. See
Connect‚ on page 58, for additional information.
z
To connect the Diagnostic Tool to a PC:
1. Select Tools from the Home screen to open the menu.
2. Select Connect-to-PC from the Tools and Setup menu.
A screen message displays stating that the Diagnostic Tool can be connected to a PC as a
mass storage device.
3. Connect the supplied USB cable to the Diagnostic Tool and then to the PC.
4. Select Continue.
5. Follow the instructions on the screen to complete the operation.
A USB cable, supplied with your Diagnostic Tool, is used to connect the Diagnostic Tool to the PC.
When the Diagnostic Tool is connected to the PC a communications icon appears on the right
edge of the title bar.

7.1.2 Configure Shortcut Button

This feature allows you to change the function of the Shortcut button. Options are:
Brightness—
•
Save Screen—saves a bitmap image of the visible screen.
•
• Save Movie—writes PID data from buffer memory to a file for future playback.
• Show Shortcut Menu—opens the menu so you can quickly select from any of the functions.
• Toggle Record/Pause—programs the Shortcut button to work as the Pause and Play icons.
z
To assign a function to the Shortcut button:
1. Select Tools from the Home screen.
The Tools menu opens.
2. Select Configure Shortcut button from the menu.
3. Select a function from the menu.
4. Select the Back on the toolbar or press the N/X button to return to the options menu.
pens the brightness setting screen.
o
47
