5.8.8
I > 0 Auxiliary process
The signal displays the current burn status of the arc for the auxiliary process (signal can only be used for
the Tetrix / forceTig series).
Signals switched on
X8/12 on X8/10
X8/12 on X8/11
5.8.9

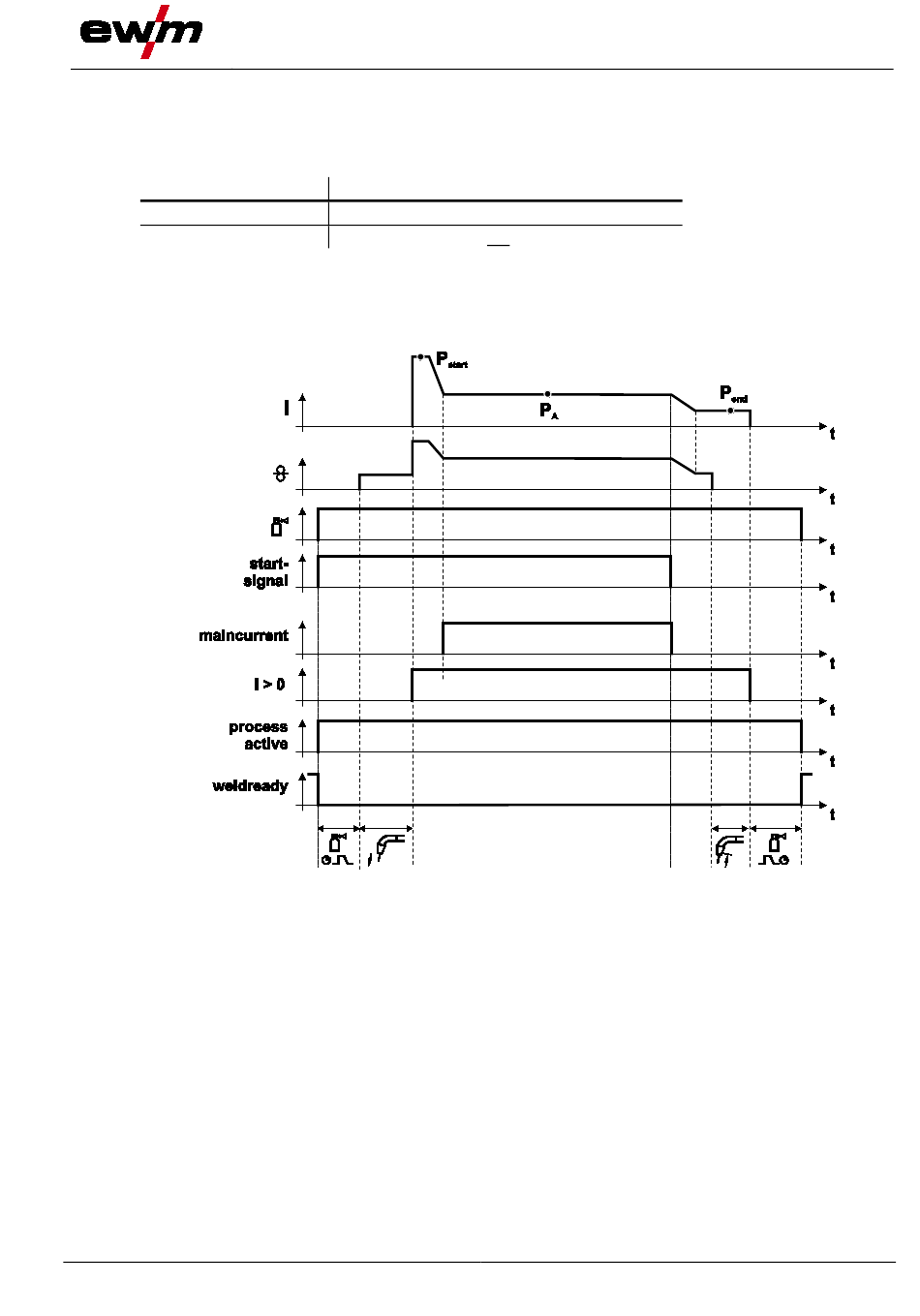

Process signals diagram
To explain the process signals, the non-latched special operating mode is shown below.
For the non-latched operating mode, the start program P
apply.
099-000769-EW501
29.06.2015
Signal
Arc auxiliary process detected
Arc auxiliary process not detected
Figure 5-2
Design and function
and end program P
start
end
Process signals
therefore no longer
27
