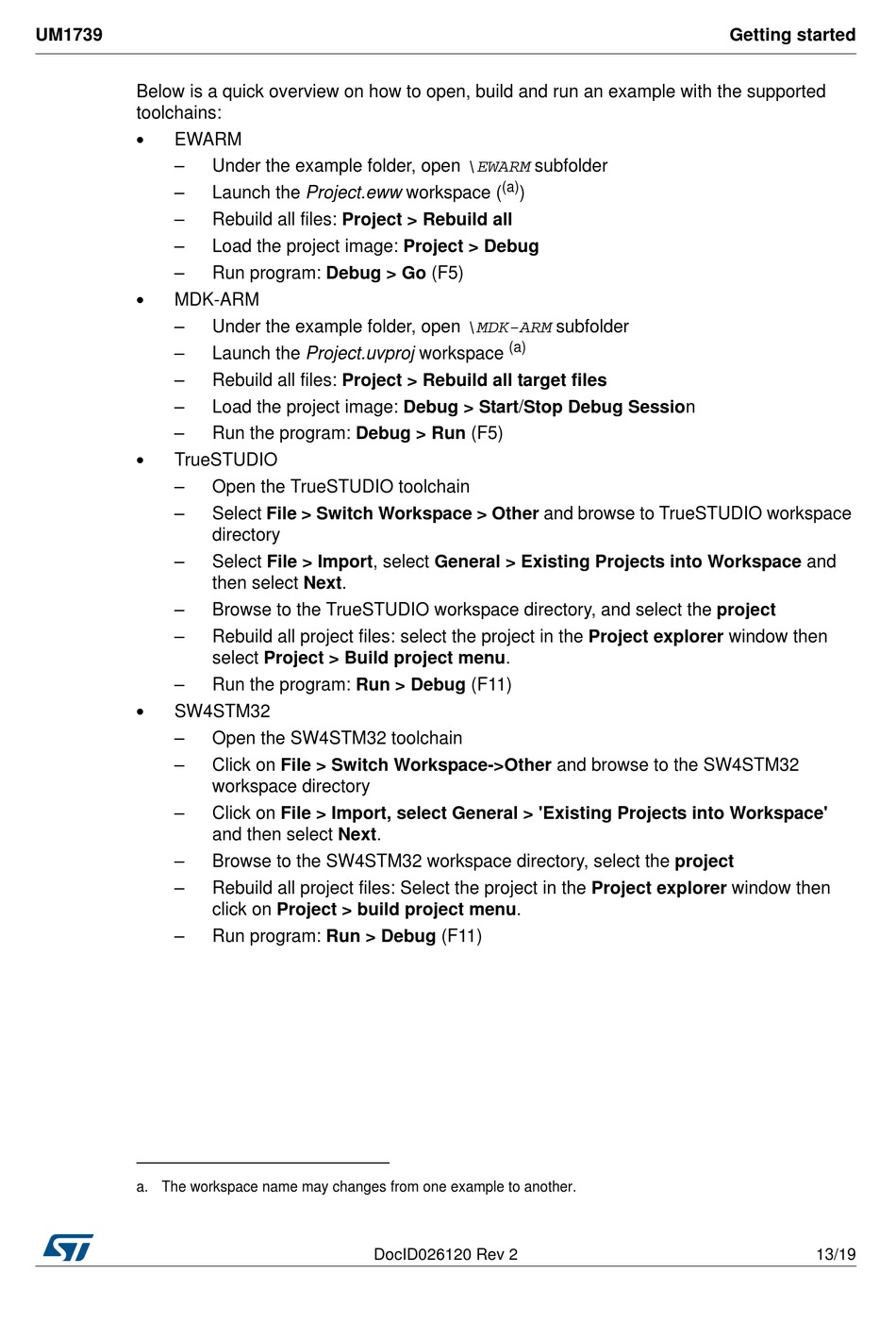

ST STM32F2 Series User Manual page 13

UM1739
Below is a quick overview on how to open, build and run an example with the supported
toolchains:

EWARM
–
–
–
–
–

MDK-ARM
–
–
–
–
–

TrueSTUDIO
–
–
–
–
–
–

SW4STM32
–
–
–
–
–
–
a. The workspace name may changes from one example to another.
Under the example folder, open \EWARM subfolder
Launch the Project.eww workspace (
Rebuild all files: Project > Rebuild all
Load the project image: Project > Debug
Run program: Debug > Go (F5)
Under the example folder, open \MDK-ARM subfolder
Launch the Project.uvproj workspace
Rebuild all files: Project > Rebuild all target files
Load the project image: Debug > Start/Stop Debug Session
Run the program: Debug > Run (F5)
Open the TrueSTUDIO toolchain
Select File > Switch Workspace > Other and browse to TrueSTUDIO workspace
directory
Select File > Import, select General > Existing Projects into Workspace and
then select Next.
Browse to the TrueSTUDIO workspace directory, and select the project
Rebuild all project files: select the project in the Project explorer window then
select Project > Build project menu.
Run the program: Run > Debug (F11)
Open the SW4STM32 toolchain
Click on File > Switch Workspace->Other and browse to the SW4STM32
workspace directory
Click on File > Import, select General > 'Existing Projects into Workspace'
and then select Next.
Browse to the SW4STM32 workspace directory, select the project
Rebuild all project files: Select the project in the Project explorer window then
click on Project > build project menu.
Run program: Run > Debug (F11)
DocID026120 Rev 2
(a)
)
(a)
Getting started
13/19
18
