Edition 0
5/2004

I. PRESENTATION

A. Features

If you are using a « Shear Lock » electromagnetic lock, it is recommended to
use a separate power supply than the one connected to the PROMI/ECO !
Input voltage 12v AC/DC
12-digit keypad
EPROM memory storage
100 Pin codes, 3 to 8-digit Pin code
1 relay output N/O and N/C contact 3A/125V~
3 to 8-digit master code
Audible and visual signal indication
1 request-to-exit input
This device comes with a varistor.
The varistor must be connected to the strike terminal
(electromagnet...) operated by the device.
If this product works with many strikes, each of them
should have a varistor.
The varistor controls the overload produced by the strike
coil – emf.
G0301FR0226V01

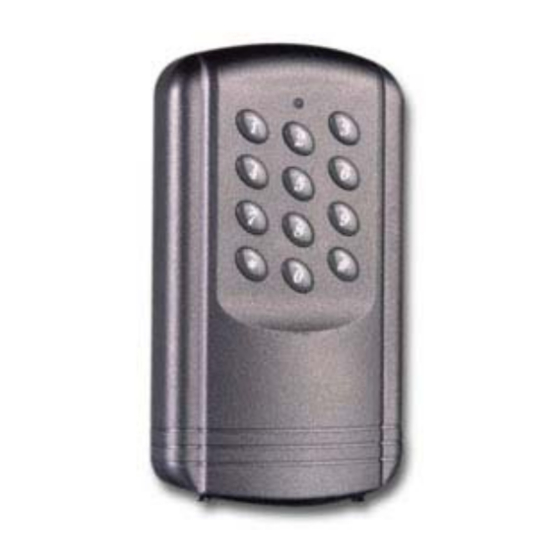

PROMI E
100 Pin codes

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROMI E and is the answer not in the manual?

Questions and answers

Related Manuals for CDVI PROMI E

Summary of Contents for CDVI PROMI E

  • Page 1 Edition 0 5/2004 G0301FR0226V01 PROMI E 100 Pin codes I. PRESENTATION A. Features Input voltage 12v AC/DC 12-digit keypad EPROM memory storage 100 Pin codes, 3 to 8-digit Pin code 1 relay output N/O and N/C contact 3A/125V~ 3 to 8-digit master code...
  • Page 2 B. Factory default values Key-in keypad time: 10 seconds. Door release time: 1 second Programming time: 2 minutes 5-digit Pin code and master code: 12345 C. Audible signals 1 short beep Press a digit keypad 1 long beep Data validated in programming or access granted 2 short beeps Entry or exit from programming 4 short beeps...
  • Page 3 If you omit to reprogram the Master code in the new length format then the default master code value will be modified a follow: Code length changed to 4-digit code then the master code 2345 Code length changed to 6-digit code then the master code 012345 Press # to exit from programming mode 2 beeps confirm that you went back to the reading mode.
  • Page 4 III. KEYPAD RESET A. Reset Place a short over ST1 (use supplied jumper). The green LED flashes during 5 seconds. One beep is emitted. The master code is reset to the factory default value 12345. The LED starts flashing red. Remove the jumper to go back to the stand-by mode.
  • Page 5 Do not forget to put the varistor on the lock. User User number Codes...
  • Page 6 Wiring access Area 30 x 40 20.5 75.5...
