Scan for full manual
Step 1: Check what's in the box
691 HDBT 2.0 Transmitter
692 HDBT 2.0 Receiver

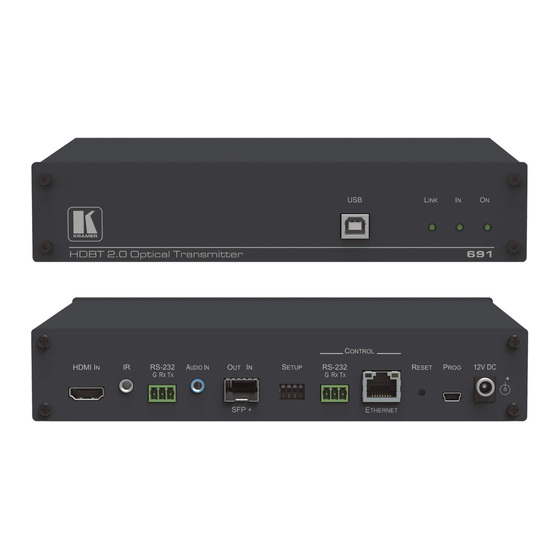

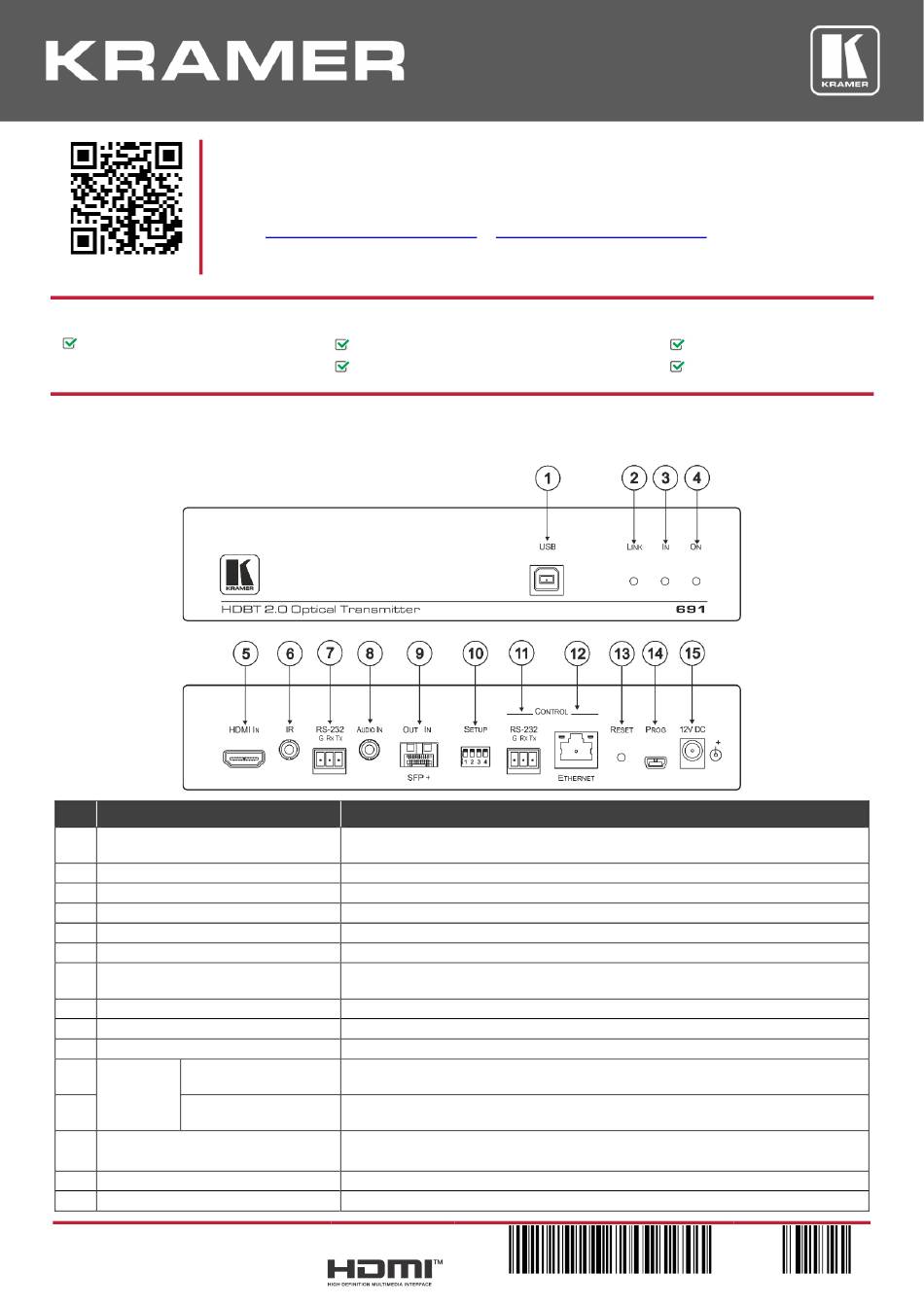

Step 2: Get to know your 691/692
691
#
Feature
1
USB Connector
2
LINK LED
3
IN LED
4
ON LED
5
HDMI IN Connector
6
IR 3.5mm Mini Jack Connector
7
RS-232 3-pin Terminal Block
8
AUDIO IN 3.5mm Mini Jack
9
OUT IN SFP+ Connector
10
SETUP 4-way DIP-switch
11
CONTROL
RS-232 3-pin Terminal
Block
12
ETHERNET RJ-45
Connector
13
RESET Switch
14
PROG Mini USB Connector
15
12V DC Power Connector
691/692 Quick Start
691/692 Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/691
user manual and check if firmware upgrades are available.
or
1
OSP-MM1 Fiber Optic SFP+ Transceiver
1 Power adapter and cord
Function
Connect to the USB host (for example, a laptop) for traffic extension to remote
connected USB devices.
Lights green when the HDBT link is active.
Lights green when an active HDMI source is connected.
Lights green when the device receives power.
Connect to the HDMI source.
Connect to an external infrared transmitter or receiver for traffic extension.
Connect to an RS-232 controller for traffic extension (for example, a PC to control
the projector).
Connect to the stereo, analog audio source.
Connect the fiber optic cable to the OUT IN SFP+ connectors
Sets the device functions.
Connect to the serial controller to control this device.
Connect to the LAN to extend network traffic to the receiver and Ethernet controller
to control this device.
Press and hold for 5 seconds to reset the device to factory default settings.
Press and immediately release to power-cycle the device (Reset).
Connect to a PC to perform firmware upgrades.
Connect to the supplied power adapter.
691/692
for the first time.
or
www.kramerav.com/downloads/692
P/N: 2 9 0 0 - 3 0 1 3 9 2 QS
to download the latest
1 Quick start guide
4 Rubber feet
(OSP-MM1
included).
Rev: 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kramer 691
Summary of Contents for Kramer 691
- Page 1 1 Quick start guide 692 HDBT 2.0 Receiver 1 Power adapter and cord 4 Rubber feet Step 2: Get to know your 691/692 Feature Function USB Connector Connect to the USB host (for example, a laptop) for traffic extension to remote connected USB devices.
- Page 2 Connect to a PC to perform firmware upgrades. 12V DC Power Connector Connect to the supplied power adapter. Step 3: Mount 691/692 Install 691/692 using one of the following methods: • Attach the rubber feet and place the unit on a flat surface. •...
- Page 3 Step 4: Connect inputs and outputs Always switch OFF the power on each device before connecting it to your 691/692. For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to the 691/692. For optimal performance, use the Kramer cables available at www.kramerav.com/product/691.
- Page 4 Warning: • Use only the power cord that is supplied with the unit. • Disconnect the power and unplug the unit from the wall before installing. Step 6: Operate 691/692 Embedded Web pages: RS-232 and Ethernet parameters and defaults: RS-232...
