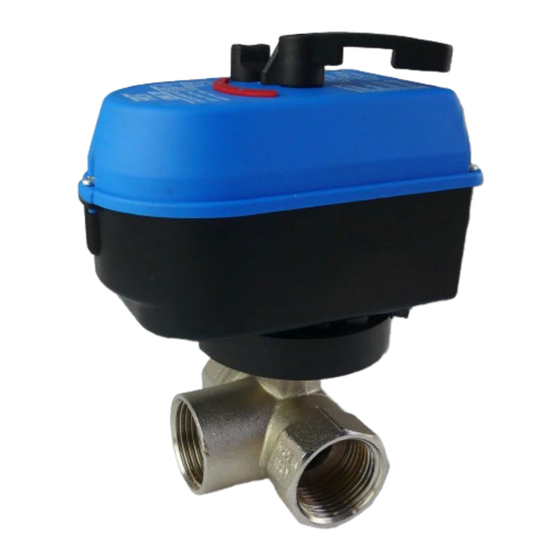

- Page 1 Instruction Manual MOTORIZED 3-WAY BALL VALVE (mixing possible) VZK-S 3xx - 230 - 2P - 001 VZK-S 3xx - 230 -2P - 001...
- Page 2 1 – APPLICATION Valves with actuator of the series VZK-S 3xx - 230 - 2P can be used together with any controller that is equipped with a 230V two-pole output. 2 - FEATURES The actuator installs easily onto the valve. Its stop positions are fitted with end switches that interrupt power supply to the actuator motor.
- Page 3 5 - MANUAL CONTROL 90° 90° 6 - VALVE POSITION AND FLOW OF FLUID When the terminal 1 (brown wire) is energized, the actuator turns clockwise, i.e. the path A-AB opens. When the terminal A AB BAB 3 (black wire) is energized, the actuator turns counter- clockwise, i.e.
- Page 4 COMMISSIONING Commissioned by: ……………………………….. Date: …………………….. Rubber stamp print and signature of the technician: v1.1-04/2019 ©2019 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
