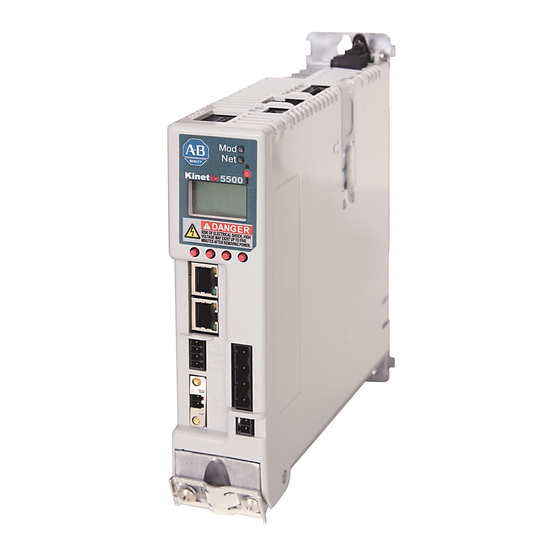

Fuse and Line Filter sizing for the Kinetix 5500 drive
530800 | Date Created: 03/03/2013 | Last Updated: 01/11/2018
Access Level: Everyone
Question
How do I size my fusing and line filter for the Kinetix 5500 drive?
Answer
Refer to documents in this tech note:
The
Kinetix 5500 User Manual
(http://literature.rockwellautomation.com/idc/groups/literature/documents/um/2198-um001_-en-p.pdf)
Publication 2198-UM001 appendix C for tutorial of sizing main and control power for various application
configurations.
The
Kinetix 5500 Design Guide
(http://literature.rockwellautomation.com/idc/groups/literature/documents/rm/gmc-rm009_-en-p.pdf)
Publication GMC-RM009
The
Kinetix Servo Drive Technical Documentation
Use the Motion Analyzer Software to evaluate your machine load inertia, transmission and cycle profile
characteristics.
Refer to other ancillary device documentation such as VPL motor, line filter installation and other as required.
To size your Kinetix 5500 fusing, circuit breaker and line filter, you will be required to know the exact configuration
of converter/inverter power modules based on the application requirement.
The Kinetix 5500 supports multiple configurations:
STAND-ALONE
1.
In this example, AC line power is transferred solely to the 2198-H040-ERS module and converter for use for motor
inverter output.
https://rockwellautomation.custhelp.com/app/answers/detail/a_id/530800
530800 - Fuse and Line Filter sizing for the Kinetix 5500 drive
(http://gmc-td003_-en-p.pdf/), Publication gmc-td003
