- Page 1 1910183E 0635 KEMPACT MIG 2520...
-
Page 2: Table Of Contents
4.1. DaIly maIntenanCe ....................9 4.2. RegUlaR maIntenanCe ..................9 5. ORDERING INFORMATION ..................9 6. TECHNICAL DATA ...................... 10 7. DISPOSAL OF THE MACHINE ................... 10 8. TERMS OF GUARANTEE ....................11 – Kempact mig 50 / 0635 © Kemppi oy... -
Page 3: Preface

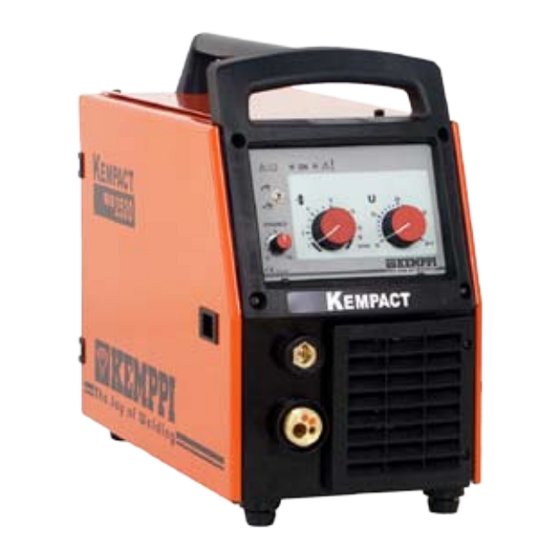

1.2. PRODUCT INTRODUCTION The Kempact MIG 2520 is compact MIG inverter suitable for repair and installation use, and for light and medium industrial use. The power source and the wire feeding mechanism are contained in the device. -
Page 4: Before You Start Using The Unit
Use at least 35 mm² cables. Thinner cross-sectional areas cause overheating of connectors. 2.6. WIRE FEEDING MECHANISM COMPONENTS Wire feed motor Clamp screw Clamping lever Wire guide Feed roll and screw Gun connector (Euro) – Kempact mig 50 / 0635 © Kemppi oy... -
Page 5: Feed Rolls
When using aluminium filler wire, removing rear guide tube may improve wire feed. When using flux cored wire, always study the manufacturer’s operation and safety instructions before use. © Kemppi oy Kempact mig 50 / 0635 – 5... -
Page 6: Shielding Gas
Always use the main switch to turn the machine on and off with the main switch; do not use the power plug for this purpose. 6 – Kempact mig 50 / 0635 © Kemppi oy... -
Page 7: To Select Polarity For Welding
3.2.1. Changing the polarity - pole + pole Only a service shop authorised by Kemppi may change the polarity. 3.3. PANEL Adjusting voltage and wire feed speed The welding voltage can be adjusted from 10 to 30 V, and the wire feed speed from 1 to 18 m/min. -
Page 8: Selecting The Welding Procedure (2T/4T)
3.7. WIRE FEED SWITCH The wire feed switch will start the wire feed motor without opening the gas valve. The power source will start up, but without providing welding power. – Kempact mig 50 / 0635 © Kemppi oy... -
Page 9: Maintenance
Note! Only a competent electrician is allowed to remove or install the mains cable! 4.2. REGULAR MAINTENANCE KEMPPI –service workshops sign special service contracts with customers for regular maintenance. All parts are cleaned, checked and if necessary, repaired. Also the operation of the welding machine is tested. -
Page 10: Technical Data
6. TECHNICAL DATA kempact Mig 2520 Mains connection 3~400V +/-15%, 50/60hz Connected load 40% ED 12 kVa 250a 60% eD 10 kVa 207a 100% eD 7,5 kVa 160a Mains cable/fuse 4x1,5mm²-5m/16a delayed Load capacity 40% eD 250a /26,5V 60% eD... -
Page 11: Terms Of Guarantee
Guarantee repairs must be carried out only by an Authorised Kemppi Service Agent. Packing, freight and insurance costs to be paid by orderer. The guarantee is effected on the date of purchase. Verbal promises which do not comply with the terms of guarantee are not binding on guarantor. - Page 12 Telefax (08) 590 823 94 e-mail: sales.se@kemppi.com Tel (06033) 88 020 Telefax (06033) 72 528 KEMPPI NORGE A/S e-mail:sales.de@kemppi.com Postboks 2151, Postterminalen KEMPPI SP. z o.o. N – 3103 TØNSBERG Ul. Piłsudskiego 2 NORGE 05-091 ZA¸BKI Tel 33 34 60 00 Poland...
