POS Tablet

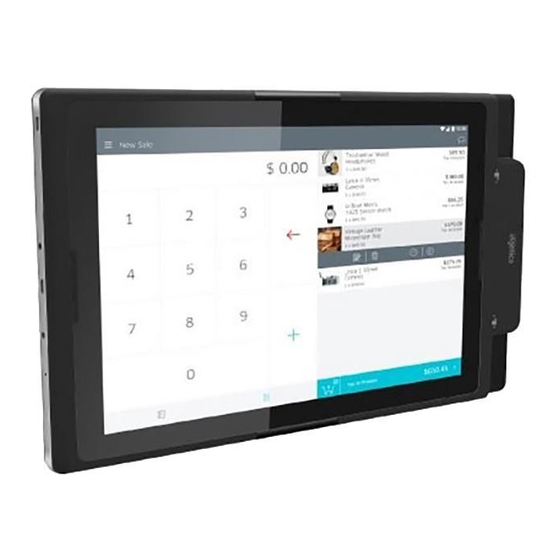

Model: Moby/M100
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Moby/M100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ingenico Moby/M100

Summary of Contents for Ingenico Moby/M100

  • Page 1 POS Tablet Model: Moby/M100...

  • Page 2: Directions

    Directions Meanings of icons: Forbidding: forbid improper operations to avoid damaging the tablet PC. Caution: cautions for operators to avoid potential damages. Please note and remember. Importance: important information, common notes, definitions, general knowledge and references, etc. Other trademarks and trade name may be used in this manual to refer to either the entities claiming the marks and names or their products.

  • Page 3: Table Of Contents

    Contents Directions ................. 2 Safety Precautions ............6 1 Know Your Tablet PC ..........8 2 Connect the Power Adapter ........10 3 Turn on the Tablet PC ..........11 4 Get to Know Your System ......... 12 4-1 Add screen shortcuts ..........14 4-2 Delete screen shortcuts/widgets ......
  • Page 4 5-4 Battery ..............20 5-5 Display ..............20 5-6 Sound ..............20 5-7 Storage ..............20 DuraSpeed ............. 20 5-9 Security & location..........20 5-10Users & accounts ..........21 5-11 Accessibility ............21 5-12 Google ..............21 5-13 System ..............21 6 Chrome ................
  • Page 5 8-1 Troubleshooting ............26 8-2 Specifications ............28 9 FCC Mark ..............29...

  • Page 6: Safety Precautions

    Safety Precautions 1. DO NOT press the LCD Screen. DO NOT place the Tablet PC with small items, they may scratch LCD Screen. 2. DO NOT expose the Tablet PC to dirty or dusty environment. Keep the environment clean and dry. 3.
  • Page 7 11. INPUT RATING: Refer to the rating label on the Tablet PC and be sure that the Power Adapter complies with the rating. Only use attachments or accessories specified by the manufacturer. 12. Checking the connections between the main unit and attachments before turning on the Tablet PC.

  • Page 8: Know Your Tablet Pc

    1 Know Your Tablet PC Front Panel Back Panel...

  • Page 10: Connect The Power Adapter

    2 Connect the Power Adapter The tablet PC comes with a universal AC-DC adapter and the allowable input voltage of adapter is from 100V to 240V. The connection between Tablet and AC adapter is illustrated in below picture: Your tablet PC and the accessories may differ from the pictures shown above.

  • Page 11: Turn On The Tablet Pc

    3 Turn on the Tablet PC Press and hold the power button for seconds to turn on the device: Press the power button once to access standby mode and pre ss again to wake it up; Press and hold the power button, and then tap Power off to power off the tablet.

  • Page 12: Get To Know Your System

    4 Get to Know Your System Press the Power button for seconds to turn on the tablet PC and then it display locked screen as shown below, you need to swipe up the screen to unlock. Press the Power button for seconds to turn on the tablet PC and then it display locked screen as shown below, you need to swipe up the screen to unlock.
  • Page 13 Touch for web Information search and so on Shortcuts: touch to open; touch & hold to move. : tap to enter Home screen. : tap to return to the previous page. : tap to open recent APPs list menu. : tap to enter APPs Menu.

  • Page 14: Add Screen Shortcuts

    4-1 Add screen shortcuts On the home page, touch and hold the blank area to popup menu to change wallpaper; Slide in the same direction as on the home page to access APPS menu; touch and hold an APPS icon to add it to the home screen.

  • Page 15: Delete Screen Shortcuts/Widgets

    4-2 Delete screen shortcuts/widgets On the home screen, touch and hold the shortcut or widget to be deleted until the “× Remove” appears. Drag the shortcuts to the remove icon to delete. 4-3 On-screen Keyboard Caps lock Backspace button Expression Toggle letters &...

  • Page 16: System Settings

    5 Settings Search settings here 5-1 Network & Internet 5-1-1 Wi-Fi Touch the Wi-Fi swtich behind of the Wi-Fi item to turn on the Wi-Fi function and then the system will auto-scan the available networks to display as shown below picture. Select one network and input password if necessary to connect .
  • Page 17 5-1-2 Data usage Touch to see the data usage information, including wifi data usage and network restrictions. 5-1-3 Tethering Touch to turn on the USB tethering or Bluetooth tethering to provide internet to other devices through your mobile data connection. 5-1-4 VPN Add a VPN connection in this menu.
  • Page 18 The Bluetooth function enables you to exchange files between the tablet and other Bluetooth devices. Before this step, please activ ate the Bluetooth function of other device (mobile phone, Bluetooth earphone etc .) and make sure the device is in range. Touch the Bluetooth switch behind of the Bluetooth item to turn on the Bluetooth function and then the system will auto-scan the visible Bluetooth device nearby and display if you touch Pair new device to...

  • Page 19: Apps & Notifications

    Touch the desired Bluetooth device to start pairing. Then according to the indications on both side, users can complete the connection successfully in seconds. After pairing, you can share files between the unit and the Bluetooth device. 5-2-2 Cast Connect to a nearby device in this menu for casting. 5-2-3 Printing Search connected printer to print some files.

  • Page 20: Battery

    Touch to set apps in this menu, including Default apps and Special app access. 5-4 Battery Touch to check the battery information, manage your power by turning off some functions to save power. 5-5 Display Touch to open display settings, including MiraVision, Brightness level, Adaptive brightness, Wallpaper, Sleep, Auto-rotate screen, Front size,Display size and Screen saver.

  • Page 21: 5-10Users & Accounts

    5-10 Users & accounts 5-10-1 Users Touch to set the owner’s information, or add a new user. 5-10-2 Accounts To add email accounts or google account. 5-11 Accessibility Look at what other accessibility in the system or add some. 5-12 Google Enjoy your services and set up your preferences in this section.

  • Page 22: Chrome

    Reset DRM, WI-FI, mobile, Bluetooth, app preferences or factory reset in this menu. 5-13-7 About tablet The detailed information about the unit, including wireless update,Status of the battery,network and other information, Legal information, Model, Android version, Android security patch level,Baseband version, Build number and Custom build version. 6 Chrome Open: After the network connection completed, touch the chrome icon to...
  • Page 23 More Designing wed may slow the speed to browse the web.

  • Page 24: Fun

    7 Function 7-1 Camera Open: Take Pictures: 1. Aim the object. 2. Press to take a picture. Switch for front or rear camera HDR capture Normal mode Face beauty mode Exposure\color effect\white Settings balance\scene mode Panorama mode Notice: 1. Select video mode if you want to record videos. 2.

  • Page 25: Music

    7-2 Music Open: Search Google Play Music Choose any song you like to start playback. During music playback, touch  to pause and touch  to resume playback; touch play the previous/next track. Touch. to find more functions.

  • Page 26: Appendix

    8 Appendix 8-1 Troubleshooting Q1：How to do with the tablet PC when the halted system occurs? A：Press and hold the power button for about 8 seconds to reboot it forcedly. Q2：How to check the tablet PC if the tablet PC cannot be turned on? A：...
  • Page 27 Touch Settings --- Backup & reset --- Factory data reset --- RESET TABLET --- ERASE EVERYTHING to recover the system to the default status on APPS Menu. Q5：How to prolong the usage time of the Battery? Adjust the brightness of the LCD Screen to proper level on Settings --- Display --- Brightness level menu.
  • Page 28 8-2 Specifications Processor MT8167A/A RAM(#) 2 GB Storage capacity(#) 16 GB Screen size 10.1" Resolution 1200x1920 Interfaces Micro USB, 3.5 mm standard headphone jack Front: 2.0M pixel; Descriptions Back: 5.0M pixel 802.11a/b/g/n/ac (MT6630), Communications Bluetooth(BT4.2) Operating temperature 5-35℃ Operating humidity 35%-85% Storage temperature -20-55℃...
  • Page 29 9 FCC Statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfu l interference in a residential installation.
  • Page 30 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that my cause undesired operation. MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device could void the user ’s authority to operate the device.
