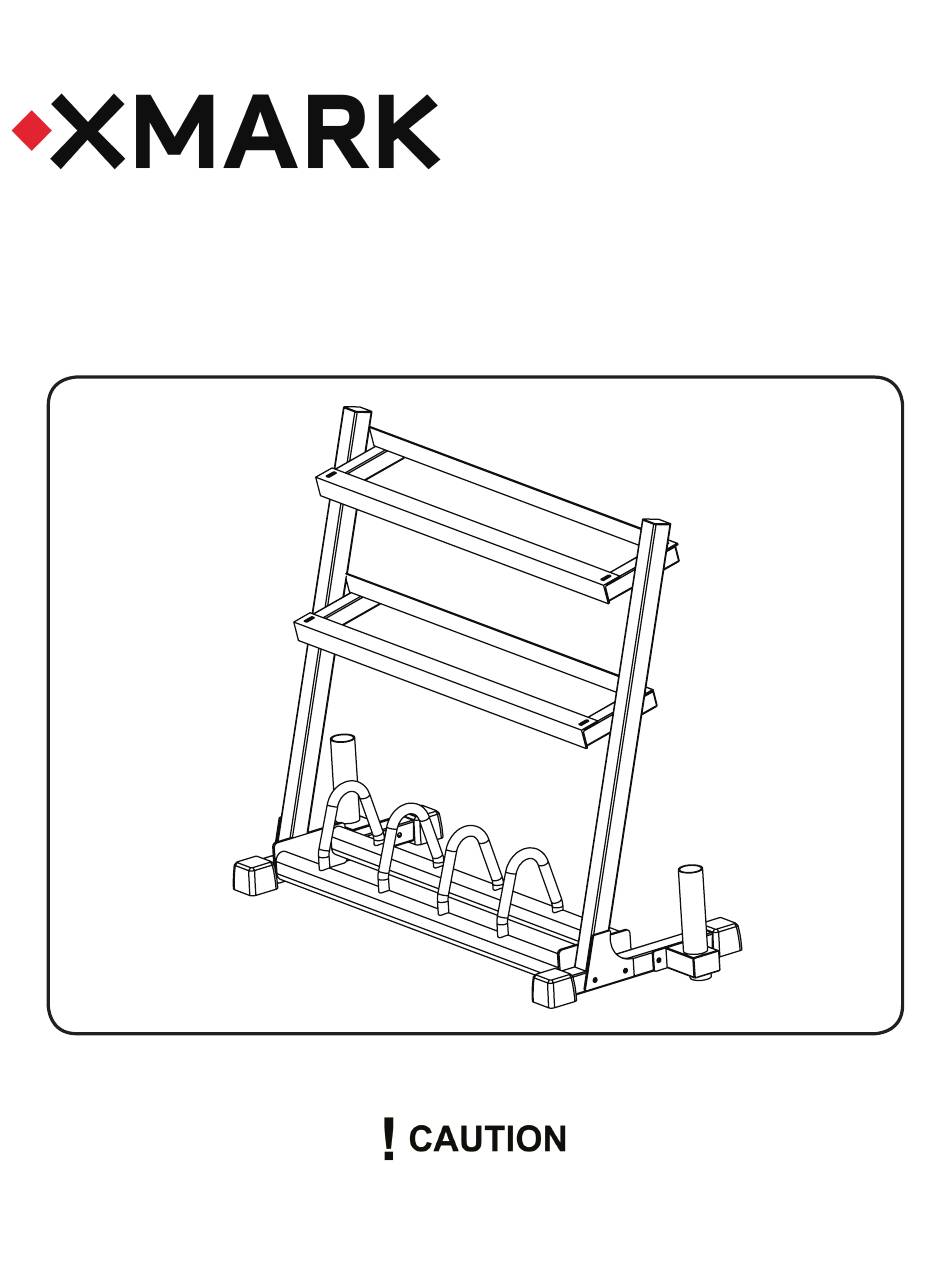

  • Page 1 XM-4467.1 Dumbbell and Plate Rack with Bar Storage Owner’s Manual Read all precautions and instructions in this manual before using this equipment.
  • Page 2 Table of Contents Before You Begin Important Safety Information Assembly Exploded View/ Parts List...

  • Page 3: Before You Start

    Before You Start THANK YOU for making this unit a part of your exercise program. XMARK Fitness assures the very best in value, appearance, durability and biomechanics. This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, please contact our Customer Service department.

  • Page 4: Important Safety Information

    SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.
  • Page 5 Assembly Your rack will accommodate Standard, Olympic, and Bumper Plates. Attach the Plate Dividers (9) to the Crossbar (8) with eight M10 x 30mm Bolts (14), eight M10 Washers (12). Start all eight Bolts, and then tighten them. Lower rail goes in the front. ___________ Attach the Crossbar (8) to the Base (3) and Left Upright (2) with two M10 x 73mm Bolts (10), two M10 Locknuts(11).
  • Page 6 M10 x 68mm Bolts (15), four M10 Washers (12) and four M10 Locknuts (11). Make sure that all parts are properly tightened before you use the Dumbbells and Plates ! Congratulations!! You have completed assembly of your XM-4467.1 !
  • Page 7 Exploded View/Part List Key No. Description Qty. Key No. Description Qty. Right Upright M10 Locknut Left Upright M10 Washer Base M10 x 63mm Bolt Angle Iron Shelf M10 x 30mm Bolt 50mm Inner Cap M10 x 68mm Bolt 44mm Inner Cap Foot Square End Cap Base Inner Cap...
  • Page 8 Customer Service: 1-800-719-4605...
