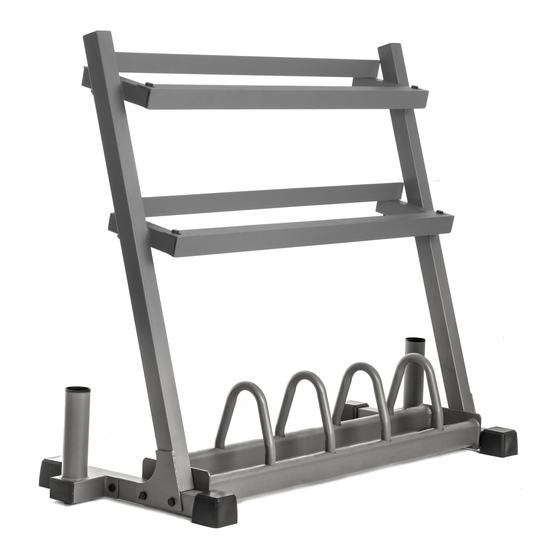

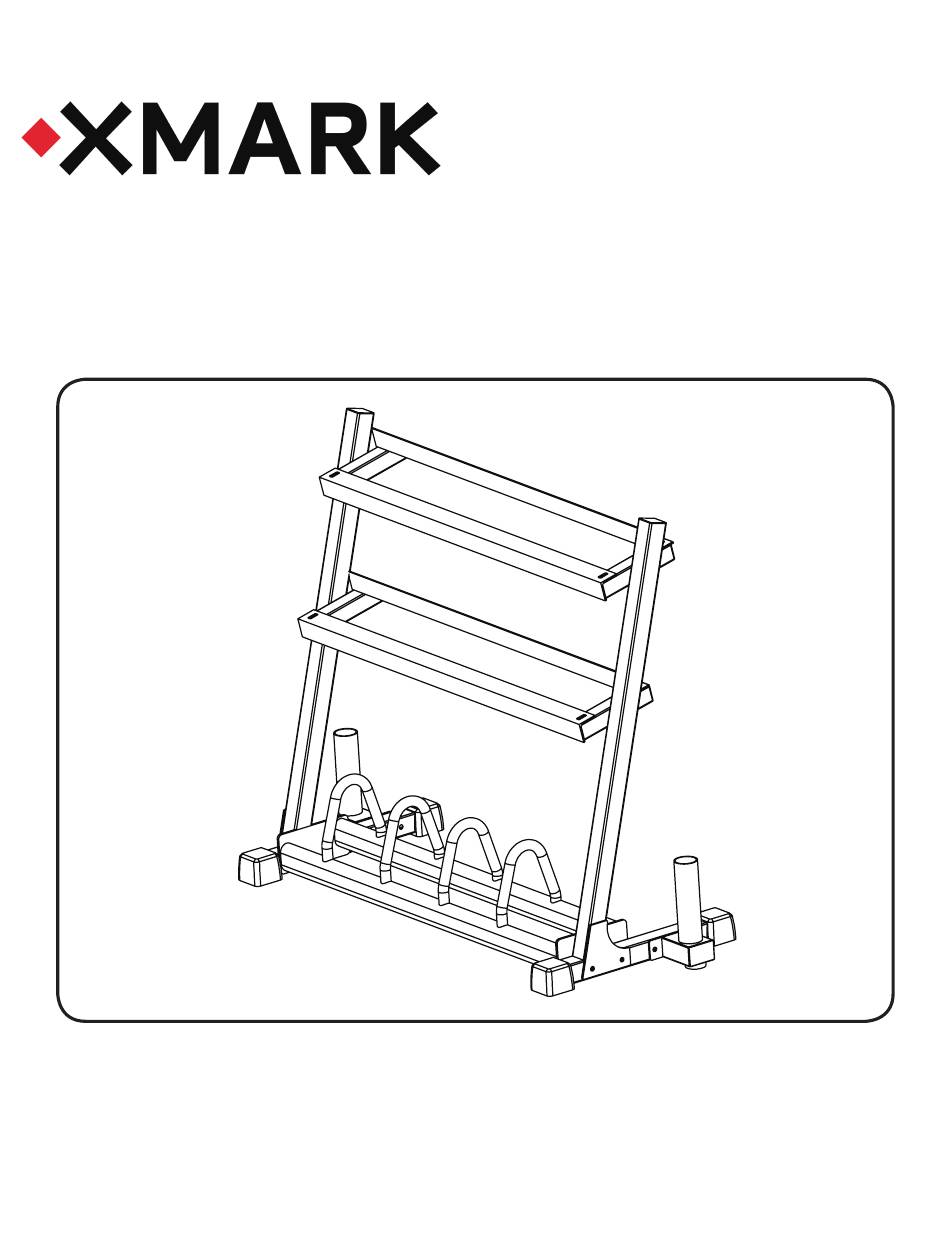

- Page 1 XM-4467.1 Dumbbell and Plate Rack with Bar Storage Owner’s Manual Read all precautions and instructions in this manual before using this equipment. 9/20...
- Page 2 Table of Contents Before You Start Important Safety Information Assembly Exploded View/ Parts List...
-
Page 3: Before You Start
Before You Start THANK YOU for making this unit a part of your exercise program. XMark assures the very best in value, appearance, durability and biomechanics. This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, please contact our Customer Service department. - Page 4 Assembly STEP 1: Attach the Plate Dividers (#9) to the Crossbar (#8) using: • 8 x Bolts (#14) • 8 x Washers (#12) Tighten all bolts firmly. During STEP 2-6 be sure to only hand tighten nuts and bolts until unit is completely assembled.
- Page 5 Assembly Attach the Bar Holders (#18) to the STEP 6: Bases (#3) using: • 4 x Bolts (#15) • 4 x Washers (#12) • 4 x Locknuts (#11) STEP 7: Wrench tighten all nuts and bolts...
-
Page 6: Exploded View & Part List
Exploded View/Part List Key No. Description Qty. Key No. Description Qty. Right Upright M10 Locknut Left Upright M10 Washer Base M10 x 63mm Bolt Angle Iron Shelf M10 x 30mm Bolt 50mm Inner Cap M10 x 68mm Bolt 44mm Inner Cap Foot Square End Cap Base Inner Cap... - Page 7 Customer Service Email: service@xmarkfitness.com...
