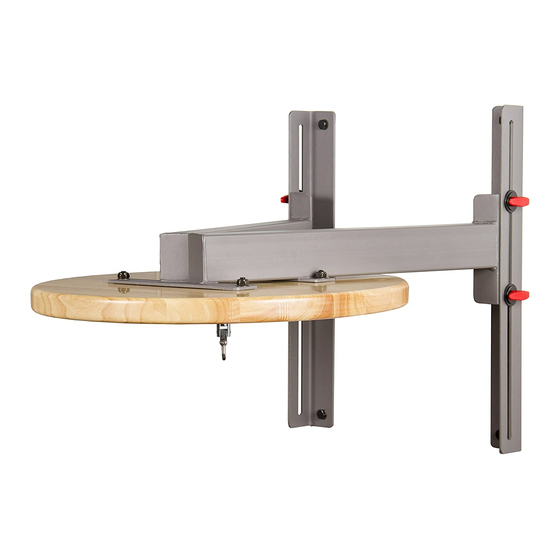

XM-4441 Adjustable Speed Bag Platform Owner’s Manual Read all precautions and instructions in this manual before using this equipment. 9/20...
Page 2
Table of Contents Before You Start Assembly Exploded View Parts List...
Page 3
Before You Start THANK YOU for making this unit a part of your exercise program. XMark assures the very best in value, appearance, durability and biomechanics. This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, please contact our Customer Service department.
Page 4
Assembly NOTE: Hand tighten bolts and locknuts until machine is fully assembled. Lock nuts may require additional force to tighten completely. NOTE: The swivel has been attached using a power tool. If you wish to remove the swivel a power tool is needed. Not doing so could damage the hardware or board.
Page 5
Assembly Make sure that all parts are properly tightened before you use the Adjustable Speed Bag Platform. Congratulations!! You have completed assembly of your XM-4441!
Page 7
Part List XM-4441 Key No. Description Main Frame Mounting Bracket Speed Bag Platform Flange Big M10 Washer Knob Nut ST9.5 x 75mm Hex Screw Plastic Washer M10 Washer M10 Locknut Socket Head Cap Screw M10 x 45mm Carriage Bolt M10 x 30mm...
