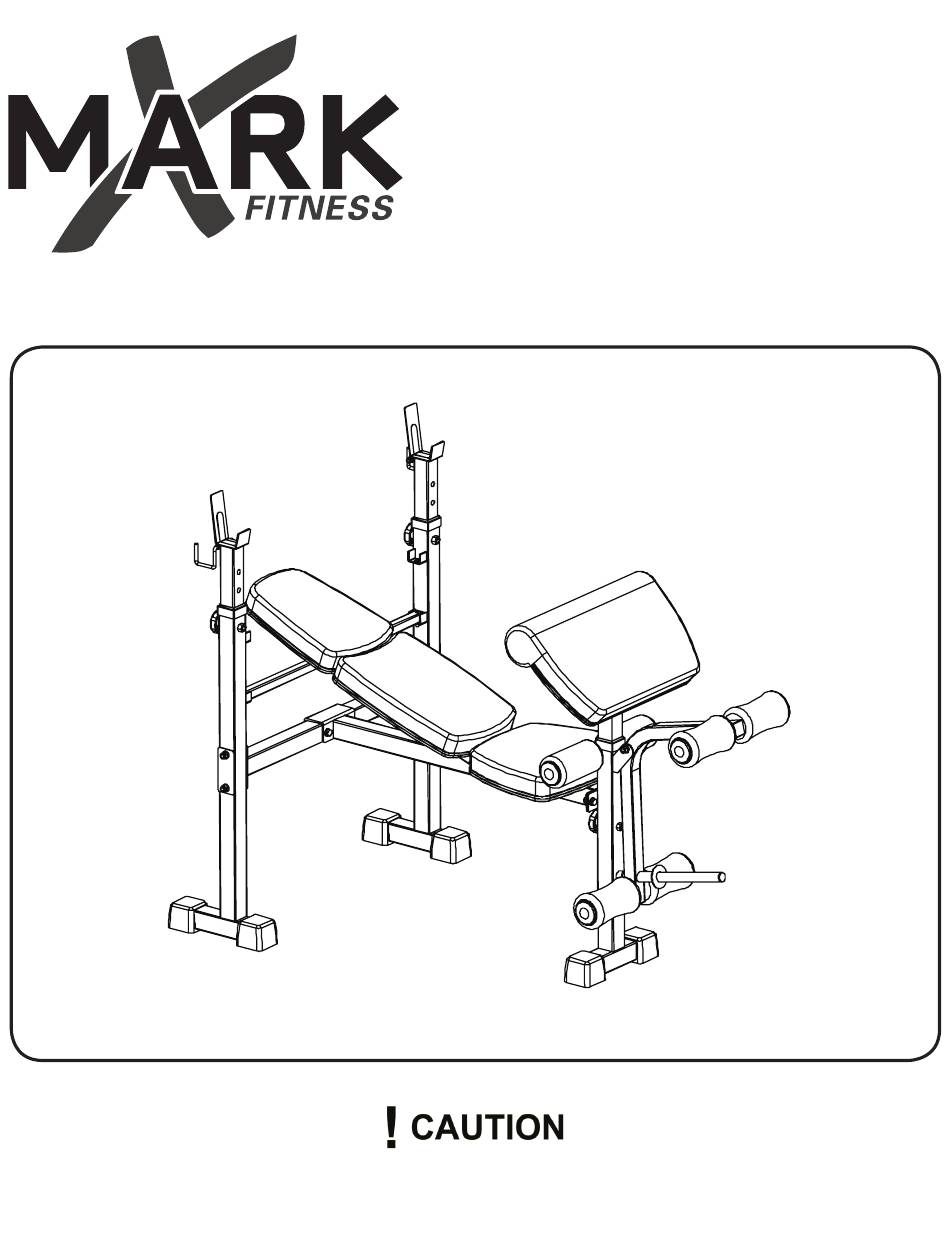

- Page 1 XM-4420 MID WIDTH BENCH Owner’s Manual Read all precautions and instructions in this manual before using this equipment. 8/09...
- Page 2 SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.
- Page 3 This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer.
- Page 4 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 1 Connect the Right Upright (2) and Left Upright (12) to the Cross Bar (1) using four M10X70 bolts (32), two Plates (17) and four M10 Lock Nuts (36). Insert the Weight Rests (3) into the right and left Uprights (2) and (12).
- Page 5 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 2 Connect the rear part of the Main Frame (5) to the Cross Bar (1) with two M10X75mm Bolts (33) and two M10 Lock Nuts (36). Attach the Front Stand Tube (8) to the Main Frame (5) using two M10X20 Bolts (34) and two M10 Lock Nuts (36).
- Page 6 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. 7 27 STEP 3 Insert the Arm Curl Stand (11) into the Front Stand Tube (8) and secure with Knob Bolt (15). Attach the Curl Pad (21) to top of the Arm Curl Stand (11) using two M6X15 Bolts (30).
- Page 7 M6X40 Bolts (29) and eight M6 Washers (31). Adjust the height with the Backrest Adjustment Tube (4). Place the Seat Pad (14) on the Brackets of the Main Frame (5) and secure with four M6X15 Bolts (30). Congratulations!! You have completed assembly of your XM-4420...
- Page 8 Parts List XM-4420 Parts List Key NO. Part No. Description 204042816503 Cross Bar 204038299503 Right Upright 204038209503 Weight Rest 204042811503 Adjustment Tube 204038205503 Main Frame 307040000672 Lower Back Pad 204055601503 Leg Lift Bar 204055801503 Front Stand Tube 204055604503 Backrest Support...
- Page 9 Exploded View...
- Page 10 Should any product submitted for warranty service be found ineligible, an estimate of repair cost will be furnished and the repair will be made if requested by you upon XMARK Fitness’...
- Page 11 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
