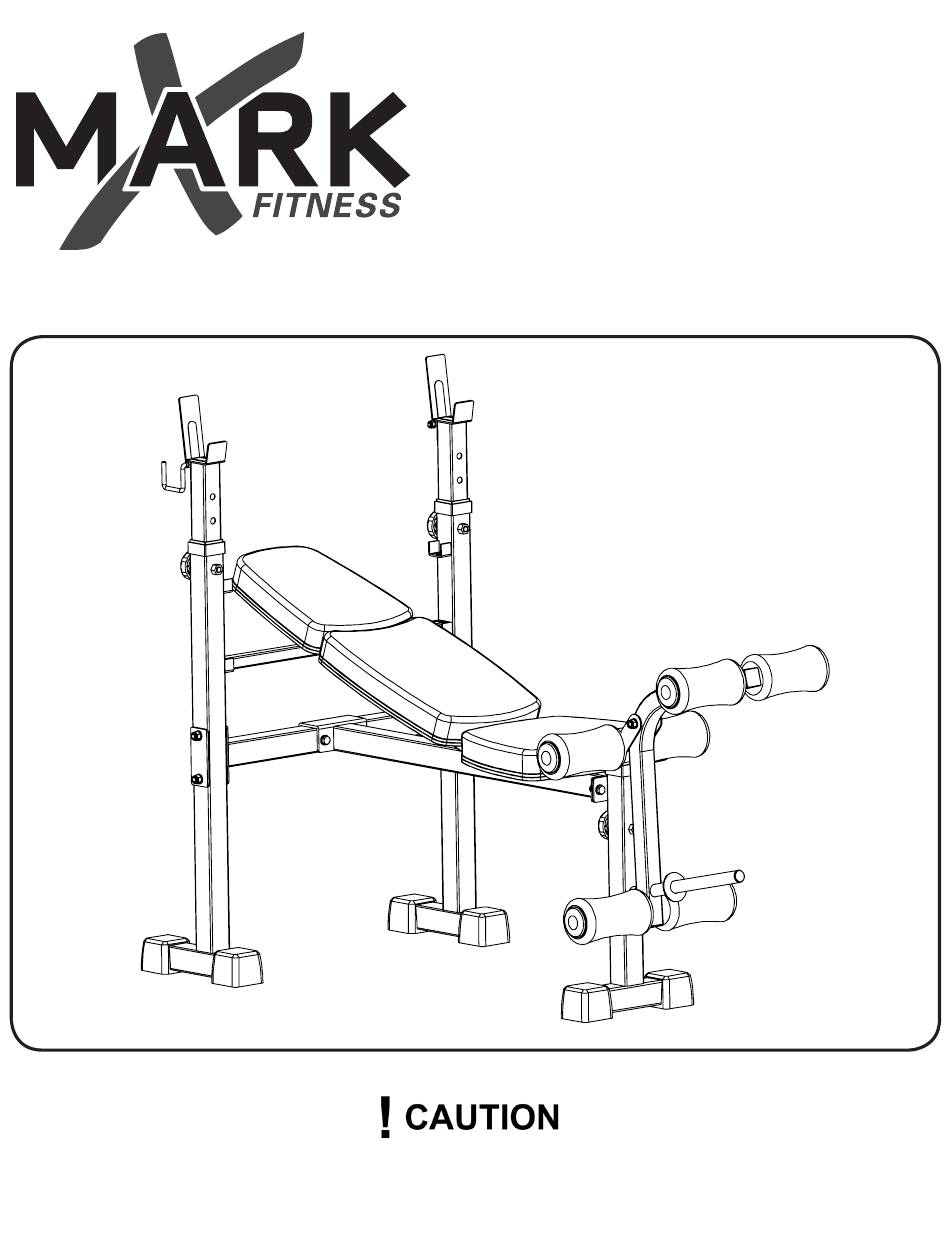

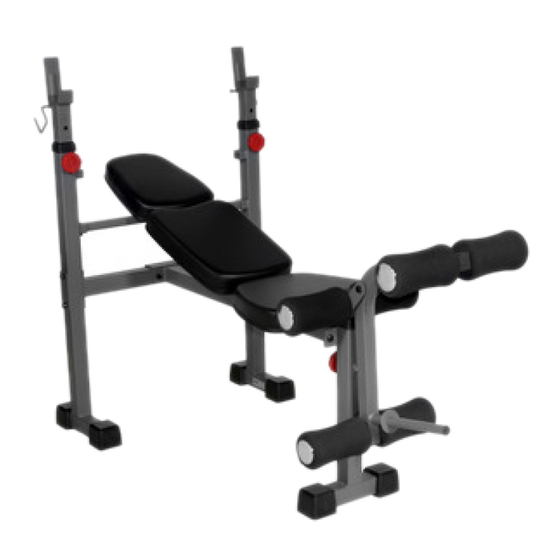

XM-4410
NARROW BENCH
Owner's Manual
Read all precautions and
instructions in this manual before
using this equipment.
8/09

Advertisement

loading
Need help?

Need help?

Do you have a question about the XM-4410 and is the answer not in the manual?

Questions and answers

Related Manuals for XMark Fitness XM-4410

Summary of Contents for XMark Fitness XM-4410

  • Page 1 XM-4410 NARROW BENCH Owner’s Manual Read all precautions and instructions in this manual before using this equipment. 8/09...

  • Page 2: Table Of Contents

    SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.

  • Page 3: Before You Begin

    This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer.

  • Page 4: Parts Identifier

    Parts Identifier LOCKNUT M10 (36) SPACER (27) M6 WASHER (31) BOLT,M6X15mm (30) LOCKNUTM8 (28) BOLT,M6X40mm (29) BOLT,M10 x 70mm (32) BOLT,M10 x 20mm (34) BOLT,M10 x 75mm (33)

  • Page 5: Assembly

    Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 1 Connect the Right Upright (2) and Left Upright (12) to the Cross Bar (1) using four M10X70 Bolts (32), two Plates (17) and four M10 Lock Nuts (36). Insert the Weight Rests (3) into the Right and Left Uprights (2) and (12) through Square Sleeves (16) and secure with Knob Bolts (15).
  • Page 6 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 2 Connect the rear part of the Main Frame (5) to the Cross Bar (1) with two M10X75mm Bolts (33) and two M10 Lock Nuts (36). Attach the Front Stand Tube (8) to the Main Frame (5) using two M10X20 Bolts (34) and two M10 Lock Nuts (36).
  • Page 7 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 3 Insert the Leg Lever Holder (11) into the Front Stand Tube (8) and secure with Knob Bolt (15). Install the Leg Lift Bar (7) to bracket of Leg Lever Holder (11) using one M10X70 Bolt (32), two Spacers (27) and one M10 Lock Nut (36).
  • Page 8 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 4 Attach the Backrest Supports (9) to the pivot on the Main Frame (5). Align Upper Back Pad (13) and Lower Back Pad (6) to the Backrest Supports (9) and secure with eight M6X40 Bolts (29) and eight M6 Washers (31).

  • Page 9: Parts List

    Parts List XM-4410 Parts List Key NO. Part No. Description 204038208503 CROSS BAR 204038299503 RIGHT UPRIGHT 204038209503 WEIGHT REST 204038211503 ADJUSTMENT TUBE 204038205503 MAIN FRAME 307040000672 LOWER BACK PAD 204055601503 LEG LIFT BAR 204038219503 FRONT STAND TUBE 204055604503 BACKREST SUPPORT...

  • Page 10: Exploded View

    Exploded View 29 29...

  • Page 11: Warranty Information

    Should any product submitted for warranty service be found ineligible, an estimate of repair cost will be furnished and the repair will be made if requested by you upon XMARK Fitness’...
  • Page 12 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
