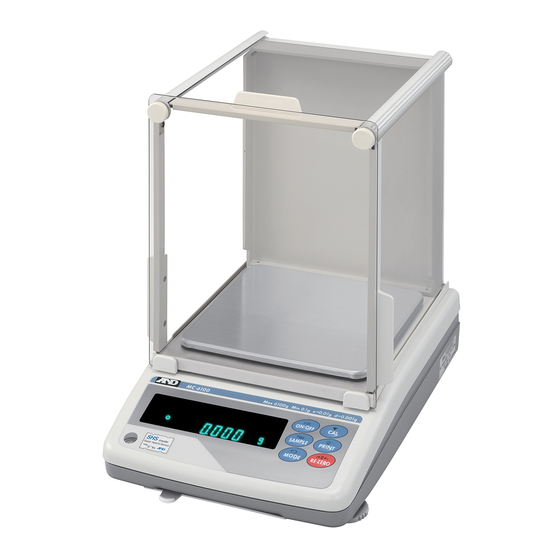

A&D MC Series Instruction Manual

Mass comparator
Hide thumbs Also See for MC Series:
Table of Contents

Advertisement

Quick Links

MC-1000
MC-6100
1WMPD4002204

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC Series and is the answer not in the manual?

Questions and answers

Related Manuals for A&D MC Series

Summary of Contents for A&D MC Series

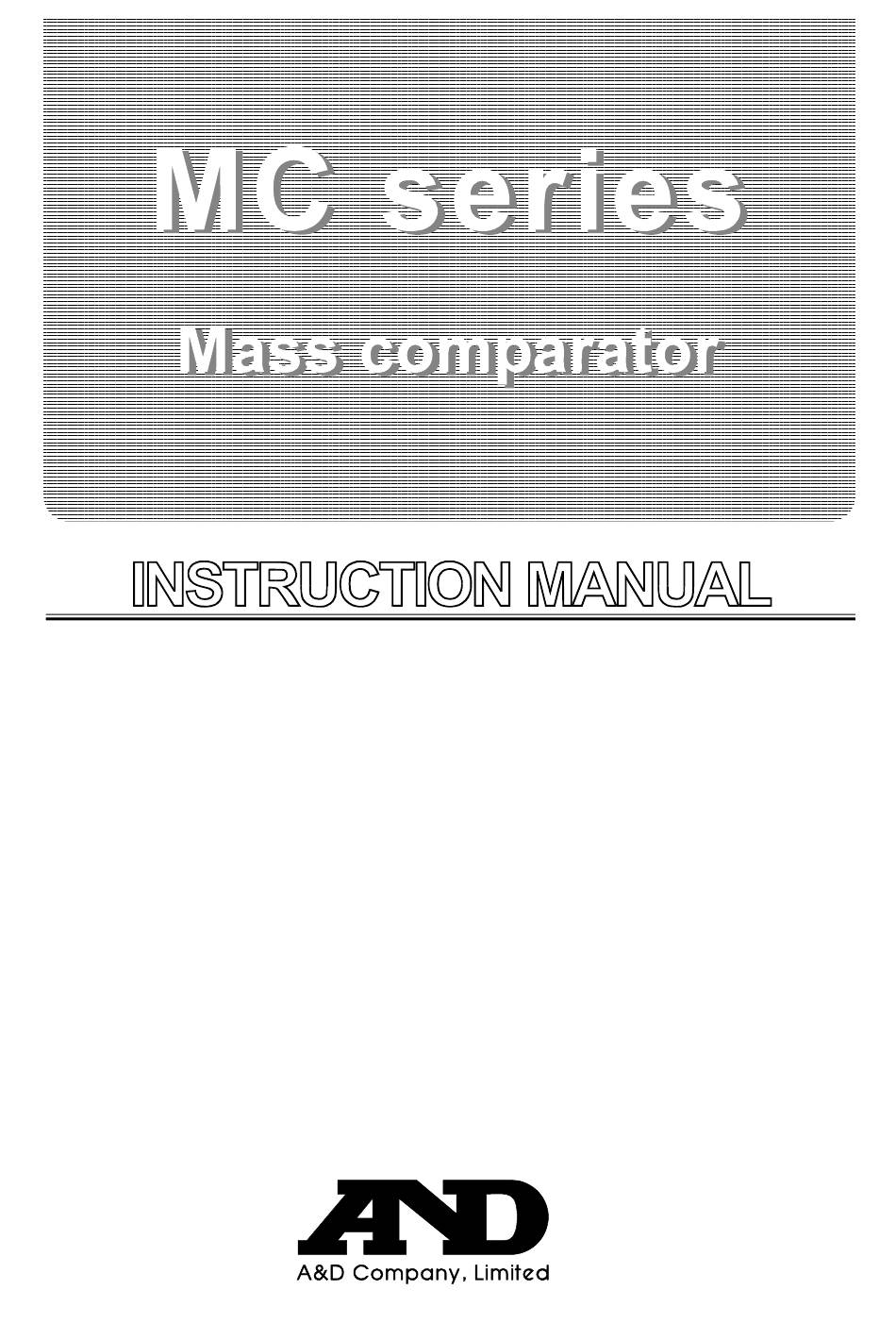

  • Page 1 MC-1000 MC-6100 1WMPD4002204...
  • Page 2 This Manual and Marks All safety messages are identified by the following, “WARNING” or “CAUTION”, of ANSI Z535.4 (American National Standard Institute: Product Safety Signs and Labels). The meanings are as follows: A potentially hazardous situation which, if not avoided, WARNING could result in death or serious injury.

  • Page 3: Table Of Contents

    CONTENTS Basic Operation 1. INTRODUCTION ..........................3 1-1 About This Manual..........................3 1-2 Features ............................. 3 1-3 Compliance............................3 2. UNPACKING THE BALANCE ......................4 2-1 MC-1000............................. 4 2-2 MC-6100............................. 7 2-3 Installing the Balance ........................10 3. PRECAUTIONS ..........................10 3-1 Before Use............................10 3-2 During Use............................11 3-3 After Use ............................
  • Page 4 9-4 Description of the Class “Environment, Display” ................33 9-5 Description of the Item “Data output mode”..................34 9-6 Description of the Item “Data format” ....................35 9-7 Description of the Data Format Added to the Weighing Data............37 9-8 Data Format Examples ........................38 10.

  • Page 5: Basic Operation

    1. INTRODUCTION This manual describes how the MC Series Mass Comparator Balances, MC-1000 and MC-6100, work, and how to get the most out of them in terms of performance. Read this manual thoroughly before using the balance and keep it at hand for future reference.

  • Page 6: Unpacking The Balance

    2. UNPACKING THE BALANCE The balance is a precision instrument. Unpack the balance carefully. Keep the packing material to be used for transporting the balance in the future. The packing contents depend on the balance model. See the illustrations to confirm that everything is contained..
  • Page 7 Glass breeze break installation procedure Caution: During installation, do not apply excessive force to the balance. 1. Remove the weighing pan, pan support 2. Place the breeze break on the main unit receptors, and dust guard from your balance. To remove the dust guard, remove the two Breeze break screws that secure it to the balance.
  • Page 8 Auto-centering pan (AX-MC1000PAN) installation procedure Caution: During installation, do not apply excessive force to the balance. When used as a mass comparator, the balance can achieve even more precise weighing, by using the auto-centering pan (sold separately), which reduces eccentric loading errors. 1.

  • Page 9: Mc-6100

    2-2 MC-6100 Main unit Weighing pan Breeze ring Dust guard Display Bubble spirit level Keys Leveling foot Reference card RS-232C serial interface (External input terminal) Grounding terminal Main unit rear AC adapter jack AC adapter ID label AC adapter Note Please confirm that the AC adapter type is correct for your local voltage and receptacle type...
  • Page 10 Glass breeze break installation procedure Caution: During installation, do not apply excessive force to the balance. 1. Remove the weighing pan, breeze ring, pan support 2. Place the breeze break on the main unit receptors, and dust guard from your balance. To remove the dust guard, remove the two screws that Breeze break secure it to the balance.
  • Page 11 Auto-centering pan (AX-MC6100PAN ) installation procedure Caution: During installation, do not apply excessive force to the balance. When used as a mass comparator, the balance can achieve even more precise weighing, by using the auto-centering pan (sold separately), which reduces eccentric loading errors. 1.

  • Page 12: Installing The Balance

    To get the optimum performance from the balance and acquire accurate weighing data, note the following: 3-1 Before Use The MC series is a high-precision balance with a resolution of 1/10000000. It is prone to changes in temperature and pressure, static electricity, drafts and vibration of the installation site.

  • Page 13: During Use

    Warm up the balance for at least 30 minutes. Plug in the AC adapter as usual. Calibrate the balance periodically for accurate weighing. Before using the balance for the first time or after having moved it to another location, warm up the balance for six hours or more to allow the balance to reach equilibrium with the room temperature, and then calibrate the balance.

  • Page 14: After Use

    3-3 After Use Avoid mechanical shock to the balance. Do not disassemble the balance. Contact the local A&D dealer if the balance needs service or repair. Do not use organic solvents to clean the balance. Clean the balance with a lint free cloth that is moistened with warm water and a mild detergent.

  • Page 15: Display Symbols And Key Operation

    4. DISPLAY SYMBOLS AND KEY OPERATION Display symbols Displays the highest-order digit when placing a load of 1 kg or more on the MC-1000. Displays data stored in memory. Displays the weight data relative to the weighing capacity, in percentage, in the weighing mode (Capacity indicator). Response indicators (Weighing speed) Animal mode indicator Processing indicator...

  • Page 16: Weighing

    The table below lists the weight class and recommended measuring range for each model of the MC series. The measuring range is determined so that the balance repeatability is to be less than one third of the maximum permissible error for each weight class.
  • Page 17 When building into a system When a special weighing pan is to be designed, the weight of the pan and the material to be weighed should not exceed the weighing capacity of the balance. To reduce influences of static electricity and magnetism, use materials other than resin and magnetic material such as iron.

  • Page 18: Response Adjustment / Self Check Function

    6. RESPONSE ADJUSTMENT / SELF CHECK FUNCTION This function detects the influence on weighing that is caused by drafts and/or vibration at the place where the balance is installed and sets the response characteristic automatically. When this function is selected, the balance self-checks the performance at the same time. Two modes of response adjustment are available: automatic and manual.

  • Page 19: Manual Response Adjustment

    Notes If improper performance is found in the self check, the balance displays CH no . Contact the local A&D dealer for repair. If the automatic response adjustment fails, the CH ng . Check the ambient balance displays conditions such as breeze and vibration, also check the weighing pan.

  • Page 20: Calibration

    7. CALIBRATION 7-1 Calibration Group Calibration Automatic self calibration (calibration due to changes in temperature) Calibration using the internal mass (one-touch calibration) Calibration using an external weight Calibration test Calibration test using an external weight (Calibration test does not perform calibration.) Correction of the internal mass value Terms...

  • Page 21: Automatic Self Calibration (Calibration Due To Changes In Temperature)

    7-2 Automatic Self Calibration (Calibration due to changes in temperature) This function automatically calibrates the balance when the balance detects an ambient temperature change. If GLP output is selected in the function table, the balance outputs the calibration report or stores the data in memory.

  • Page 22: Calibration Using An External Weight

    7-4 Calibration Using an External Weight This function calibrates the balance using an external weight. When the MC-1000 is used 1 Connect the AC adapter and warm up the balance for at least 30 minutes with nothing on the pan. Calout 2 Press and hold the CAL key until Press and...
  • Page 23 From previous page 5 Confirm that there is nothing on the pan and press the PRINT key. The balance measures the zero point. Do not allow vibration or drafts to affect the balance. The balance displays the calibration weight value. 6 Place the displayed calibration weight on the pan Calibration and press the PRINT key.

  • Page 24: Calibration Test Using An External Weight

    7-5 Calibration Test Using an External Weight This function tests the balance weighing accuracy using an external mass and outputs the result. This is available only when the “GLP output (info )” parameter is set to “ 1 ” or “ 2 ”. (Calibration test does not perform calibration.) When the MC-1000 is used 1 Connect the AC adapter and warm up the balance...
  • Page 25 From previous page 5 Confirm that there is nothing on the pan and press the PRINT key. The balance measures the zero point and displays the measured value. Do not allow vibration or drafts to affect the balance. The balance displays the target weight value. Target weight 6 Place the displayed target weight on the pan and press the PRINT key.

  • Page 26: Correcting The Internal Mass Value

    7-6 Correcting the Internal Mass Value The MC series balance can correct the internal mass value within the range shown below. This function corrects the internal mass value to conform to an external weight. The corrected mass value is maintained in non-volatile memory even if the AC adapter is removed.
  • Page 27 4 Press the PRINT key. Then the balance displays the function switches. Set the function table switch and internal mass correction switch to “ 1 ” as shown above using the following keys. SAMPLE key To select the switch to change the value. RE-ZERO key To change the parameter of the switch selected.

  • Page 28: Function Switch And Initialization

    8. FUNCTION SWITCH AND INITIALIZATION 8-1 Permit or Inhibit The balance stores parameters that must not be changed carelessly (e.g. Calibration data for accurate weighing, Data for adapting to the operating environment, Control data for the RS-232C interface). There are five switches for the purpose of protecting these parameters. Each switch can select either “permit”...

  • Page 29: Initializing The Balance

    8-2 Initializing the Balance This function returns the following parameters to factory settings. Calibration data Function table The sample unit mass value (counting mode), 100% reference mass value (percent mode) The data that is stored in the balance using the data memory function External calibration weight and target weight value Function switch settings Note...

  • Page 30: Function Table

    9. FUNCTION TABLE The function table reads or rewrites the parameters that are stored in the balance. These parameters are stored in non-volatile memory, and are maintained even if the AC adapter is removed. 9-1 Structure and Sequence of the Function Table The function table menu consists of two layers.

  • Page 31: Details Of The Function Table

    9-3 Details of the Function Table Class Item and Parameter Description Fast response rate, sensitive value FAST Can be changed by response Cond MID. adjustment. With “hold 1”, Condition Slow response rate, stable value SLOW sets the averaging time. The stabilization indicator illuminates Stable range is ±1 digit 5t-b when the display fluctuation is...
  • Page 32 Class Item and Parameter Description Cp Hi Upper limit Displays when Cp in 0 or Cp in 1 is selected. Cp lo Refer to the GX series Lower limit instruction manual, “10-10 Cp ref Comparator Function”. Reference value Displays when Cp in 2 or Cp in 3 is selected.
  • Page 33 Class Item and Parameter Description at-f Not used Selects whether or not automatic Auto feed feed is performed. Used Selects GLP output method. No output For how to set time and date to dout info AD-8121 format be added, refer to the GX series Data output GLP output instruction manual, “10-9 Clock...
  • Page 34 Class Item and Parameter Description Small f1-b Averaging range for the first moving average Large No averaging 0.5 second 1.0 second erfnc 1.5 seconds f1-t Extended Averaging time for the 2.0 seconds function first moving average 2.5 seconds 3.2 seconds 4.8 seconds 6.4 seconds Small...

  • Page 35: Description Of The Class "Environment, Display

    9-4 Description of the Class “Environment, Display” Condition ( Cond ) Cond 0 This parameter is for sensitive response to the fluctuation of a weight value. Used for powder target weighing, weighing a very light sample or when quick response weighing is required. After setting, the balance displays FAST.

  • Page 36: Description Of The Item "Data Output Mode

    9-5 Description of the Item “Data output mode” The parameter setting of the “Data output mode ( prt )” applies to the performance when the “Data memory ( data )” parameter is set to “ 2 ” (to store the weighing data)and when the data is transmitted using the RS-232C interface.

  • Page 37: Description Of The Item "Data Format

    Interval memory mode The weighing data is periodically stored in memory. dout prt 3 Required setting Interval memory mode dout data 2 Data memory function is used. Stores weighing data. dout Interval time dout 5-td1, 2, or 3 Optional setting Adds the time and date.
  • Page 38 KF format 5if type 2 This is the Karl-Fischer moisture meter format and is used when the peripheral equipment can only communicate using this format. This format consists of fourteen characters excluding the terminator. This format has no header characters. The polarity sign is placed before the data, with spaces in place of leading zeros, if the data is not zero or overloaded.

  • Page 39: Description Of The Data Format Added To The Weighing Data

    CSV format 5if type 5 Separates the data of A&D standard format and the unit by a comma (,). Outputs the unit even when the data is overloaded. When the ID number, data number, time and date are added, outputs the ID number, data number, date, time and weighing data in this order and separates each item by a comma and treats all the items as one group of data.

  • Page 40: Data Format Examples

    9-8 Data Format Examples A&D Stable C R L F S T , 0 0 1 C R L F C R L F C R L F + 0 0 (Data example C R L F exceeding 8 characters) A&D C R L F S T ,...

  • Page 41: Id Number And Glp Report

    10. ID NUMBER AND GLP REPORT The ID number is used to identify the balance when Good Laboratory Practice (GLP) is used. The ID number is maintained in non-volatile memory even if the AC adapter is removed. The GLP output format is selected at “GLP output (info )” of the function table and can be output to a personal computer or printer using the RS-232C serial interface.

  • Page 42: Glp Report

    10-2 GLP Report Set the following parameters to output the report. To print the report, set the “GLP output ( info )” parameter to “1 ”, the “Data output pause ( pU5e )” parameter to “1 ”, and use MODE 3 of the AD-8121B. For details on using the printer, refer to “12-1 Connection to the AD-8121B Printer”.
  • Page 43 Calibration report using an external weight When the setting is “info 1 ”: When the setting is “info 2 ”: AD-8121 format General data format Manufacturer & D< T E R M > ~ ~~~ ~~~~ ~~~ A & D Model M OD EL MC- 10 00<...
  • Page 44 Title block and end block When a weight value is recorded as the GLP data, “Title block” and “End block” are inserted at the beginning and at the end of a group of weight values, in the GLP report. Notes To output the report to an AD-8121B , use MODE 3 of the AD-8121B.

  • Page 45: Rs-232C Serial Interface / External Input

    11. RS-232C SERIAL INTERFACE / EXTERNAL INPUT RS-232C The balance is a DCE device. Connect the balance to a personal computer (DTE), using a straight through cable or a modem cable. Transmission system EIA RS-232C Transmission form Asynchronous, bi-directional, half duplex Data format Baud rate 600, 1200, 2400, 4800, 9600 bps...
  • Page 46 RS-232C Terminals Computer side Balance side Inside of balance Terminals sample External contact input By connecting pin 18 (PRINT command) to pin 7, or pin 19 (RE-ZERO command) to pin 7 for 100 ms or more, the same operation as performed by pressing the PRINT key or the RE-ZERO key, will be performed.

  • Page 47: Connection To Peripheral Equipment

    12. CONNECTION TO PERIPHERAL EQUIPMENT 12-1 Connection to the AD-8121B Printer Set the following parameters to use the AD-8121B printer. Factory AD-8121B Class Item setting Mode 1 Mode 2 Mode 3 0, 1, 2, 4, 5 0, 1, 2, 4, 5 Data output mode ap-p Auto print polarity...

  • Page 48: Connection To A Computer

    12-2 Connection to a Computer The MC series balance is of the DCE type (Data Communication Equipment), which can be connected to a personal computer using the RS-232C interface. Before connection, read the personal computer manual thoroughly. Use a standard DCE cable for connection (cable type: straight-through).
  • Page 49 The weighing data can be received at a certain interval and data characteristic with elapsed time can be obtained. 5 Using the MC series balance memory function The weighing data, instead of outputting it immediately to an external device, can be stored in the balance’s memory.

  • Page 50: Commands

    13. COMMANDS 13-1 Command List Commands to query weighing data Cancels the S or SIR command. Requests the weighing data immediately. Requests the weighing data when stabilized. Requests the weighing data immediately. Requests the weighing data continuously. Requests the weighing data when stabilized. Note: The “Q”...

  • Page 51: Acknowledge Code And Error Codes

    13-2 Acknowledge Code and Error Codes When the “Serial interface function ( 5if )” parameter is set to “ erCd 1 ”, the balance outputs <AK> code or error code to each command as follows: <AK> (06h) Acknowledge in ASCII code. When the balance receives a command to request data and can not process it, the balance transmits an error code (EC, Exx).

  • Page 52: Control Using Cts And Rts

    13-3 Control Using CTS and RTS Depending on the “ Ct5 ” parameter of “Serial interface ( 5if )”, the balance performs as follows: Ct5 0 Regardless of whether the balance can receive a command or not, the balance keeps the CTS line HI.

  • Page 53: Extended Function

    14. EXTENDED FUNCTION The MC series balance has several extended functions equipped for special applications or to troubleshoot when using the standard functions. When the "Filter ( f1l)” is set to “ 0 “, extra items are available as shown below.

  • Page 54: Description Of "Averaging Range" And "Averaging Time

    14-1 Description of "Averaging range" and "Averaging time" Averaging range ( ) and averaging time ( f1-b f1-t 1. When the fluctuation of a weight value is beyond the range that is selected in " f1-b ", the averaging operation is disabled and the display reflects the varying value. 2.
  • Page 55 Filter depending on differences in the amount to deliver powdery and liquid material When the weight value is not stable even without load fluctuations Increase the averaging range for the first moving average parameter ( f1-b ). Increase the averaging time for the first moving average parameter ( f1-t ). Strengthen the digital filter.

  • Page 56: Maintenance

    15. MAINTENANCE Do not use organic solvents to clean the balance. Clean the balance with a lint free cloth that is moistened with warm water and a mild detergent. Do not disassemble the balance. Contact the local A&D dealer if the balance needs service or repair. Use the original packing material for transportation.

  • Page 57: Error Codes

    Sample and container Has the sample absorbed or lost moisture due to the ambient conditions such as temperature and humidity? Has the temperature of the container been allowed to equalize to the ambient temperature? Refer to “3-2 During Use”. Is the sample charged with static electricity? Refer to “3-2 During Use”. Static electricity is generated when the relative humidity is low.
  • Page 58 Display Error code Description Overload error A sample beyond the balance weighing capacity has been placed on the pan. Remove the sample from the pan. Weighing pan Error The weight value is too light. Confirm that the weighing pan is properly installed and calibrate the balance.
  • Page 59 Display Error code Description Memory full The amount of weighing data in memory has reached the maximum capacity. (Blinking) Delete the data in memory to store new data. For details, refer to the GX series instruction manual, “12. DATA MEMORY”. Memory full (Illuminated) The amount of calibration or calibration test data in...

  • Page 60: Asking For Repair

    Display Error code Description EC, E06 Format error A command includes incorrect data. e.g. The data is numerically incorrect. Confirm the command. EC, E07 Parameter setting error The received data exceeds the range that the balance can accept. Confirm the parameter range of the command. Other errors If the errors described above can not be released or other errors are displayed, contact the local A&D dealer.

  • Page 61: Specifications

    17. SPECIFICATIONS MC-1000 MC-6100 Weighing capacity 1100 g 6100 g Maximum display 1100.0844 g 6100.844 g Minimum weighing value 0.0001 g 0.001 g Repeatability (Standard deviation) 0.0005 g / 1 kg 0.004 g / 5 kg See Note 1 below. 0.0004 g / 500 g 0.0015 g / 2 kg Sensitivity drift...

  • Page 62: Options

    Used to connect the balance to a personal computer with appropriate OS and applications. AD-8920A Remote display Connected to the MC series using the RS-232C interface to display the weighing data away from the balance. AD-8922 A Remote controller Connected to the MC series balance using the RS-232C interface to display the weighing data and to remotely control the balance.

  • Page 63: External Dimensions

    19. EXTERNAL DIMENSIONS MC-1000 MC-6100 71.5 71.5 Unit: mm...

  • Page 64: Terms/Index

    20. TERMS/INDEX Terms Stable value The weight data when the stabilization indicator appears. Environment Ambient conditions such as vibration, drafts, temperature, static electricity and magnetic fields which affect the weighing operation. Store To save the weighing data, unit mass or calibration data using the data memory function.
  • Page 65 Index - B - Keys and symbols ............45 CAL key ..........13 Breeze ring ..........7, 54 MODE key ........13 Bubble spirit level........4, 7 ON/OFF key ....... 13, 26 Building into a system ........4, 7 PRINT key ........13 RE-ZERO key......11, 13 - C - SAMPLE key ........
  • Page 66 - P - f1-b ..........32, 51 Pan support receptor ......5, 6, 8, 9 ............29 Permit ............26 f1-t ..........32, 51 plastic ............11 f2-b poff ..........32, 51 ..........29, 31 f2-t ..........32, 51 ............30 FAST ............16 p-tr ............29 - G -...
