A&D AD-1611 Instruction Manual

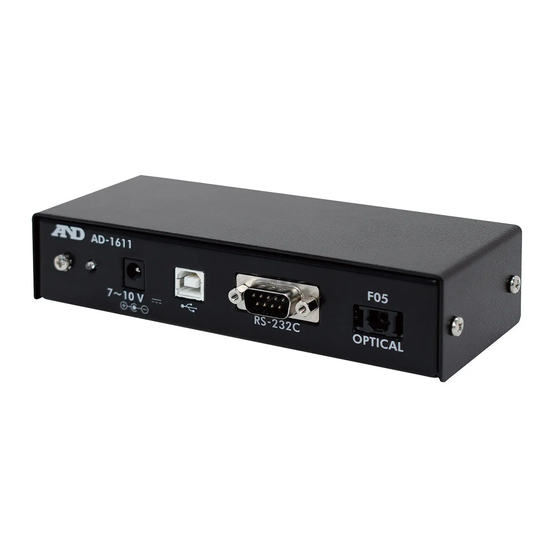

Optical communication adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1WMPD4003539

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-1611 and is the answer not in the manual?

Questions and answers

Related Manuals for A&D AD-1611

Summary of Contents for A&D AD-1611

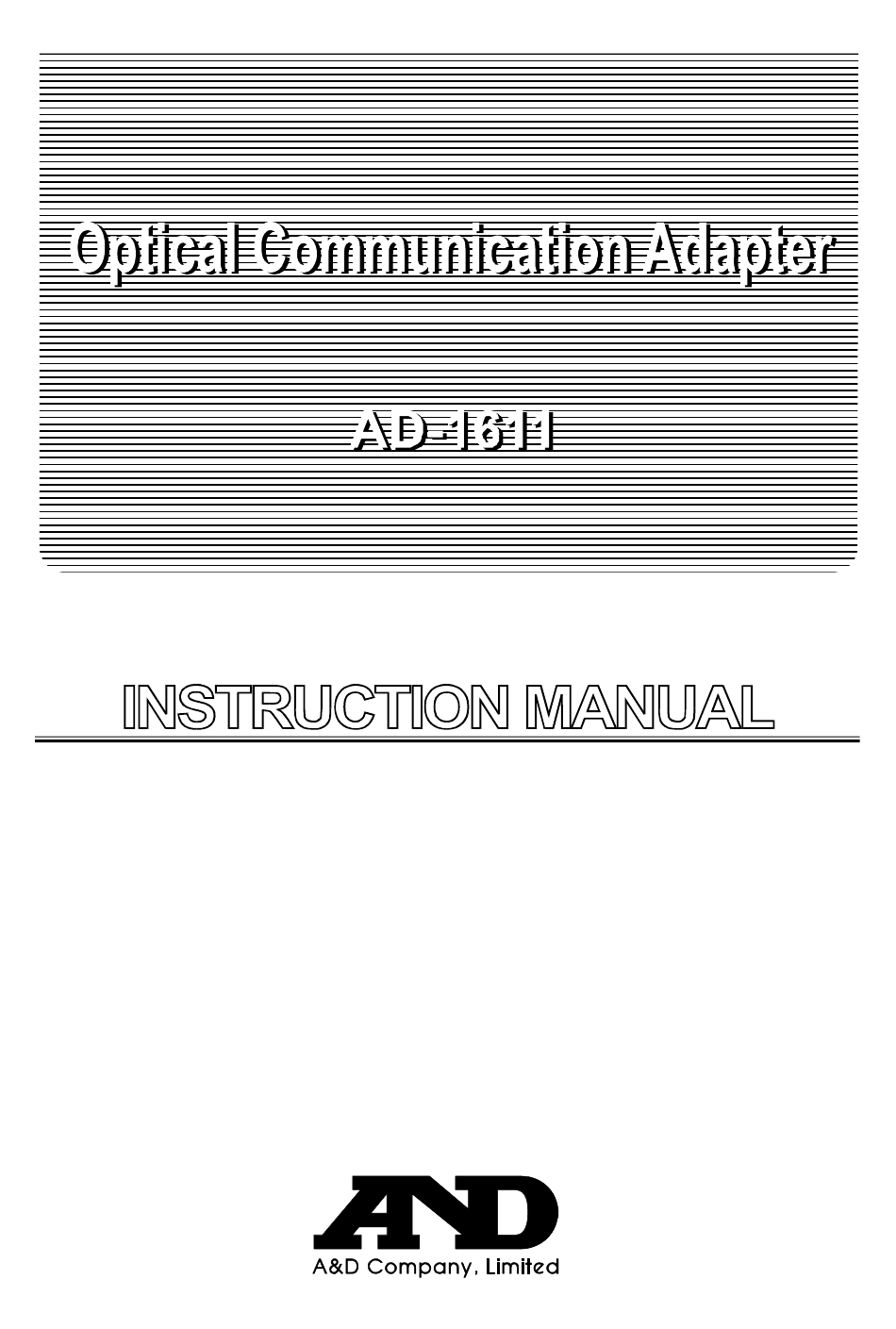

  • Page 1 1WMPD4003539...

  • Page 2: Safety Precautions

    The AD-1611 is not explosion-proof or waterproof. Do not place it where there is a risk of explosion or where it may get wet. When the optical port is not used or the AD-1611 is stored, attach the protective cap provided to the port. Otherwise, dust may enter the connector in the optical port and cause a communication error.
  • Page 3 Communication The AD-1611 is a unidirectional communication unit to receive data (optical signals) output from a balance/scale and transmit electric signals to external devices/PC through RS-232C or USB. It cannot transmit commands from external devices/PC to the balance/scale. To use the USB cable, install a USB driver beforehand. Refer to “3.2.
  • Page 4 Read this manual completely before using the AD-1611. The AD-1611 is a relay device to output signals from a balance/scale to an external device or a PC. When connected to a balance/scale with the optical connector, the AD-1611 converts optical signals to electric signals and output them through RS-232C or USB.
  • Page 5 Install a USB driver on a PC. A USB driver is available for download at our website: http://www.aandd.jp/products/software/software.html 2 When the AD-1611 is connected to a PC: Install the Windows communication tools software (WinCT) on a PC. WinCT is also available for download at our website: http://www.aandd.jp/products/software/software.html...
  • Page 6 Example 2: To output data from a balance through the RS-232C port. No setting is required for the AD-1611. When the AD-1611 is used for the first time, the cables are reconnected or the power is turned on, such as after the balance/scale battery replacement,...

  • Page 7: Led Operation

    4. LED OPERATION The LED blinks when the AD-1611 receives data. Whether the LED blinks or turns off depends on the serial interface data output mode setting of the balance/scale. Refer to the balance/scale instruction manual to set the data output mode on the balance/scale.

  • Page 8: Troubleshooting

    5. TROUBLESHOOTING Phenomenon Probable causes Remedies When power is not supplied to the AD-1611. The specified AC Use the AC adapter provided adapter is not used. with the AD-1611. AC adapter connection Insert the AC adapter firmly error until it stops.

  • Page 9: Specifications

    6. SPECIFICATIONS 6.1. General Model AD-1611 Power supply AC adapter or USB Operating temperature range -10°C to 40°C, no condensation Dimensions (WxDxH) 160 x 58 x 38 mm Mass (Main body only) Approximately 380 g Accessories AC adapter, USB cable, Instruction manual 6.2.
  • Page 10 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-6148 http://www.aandd.jp/ A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131, U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408) 263-0119 http://www.andonline.com/ A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY , United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 http://www.aandd-eu.net/...
