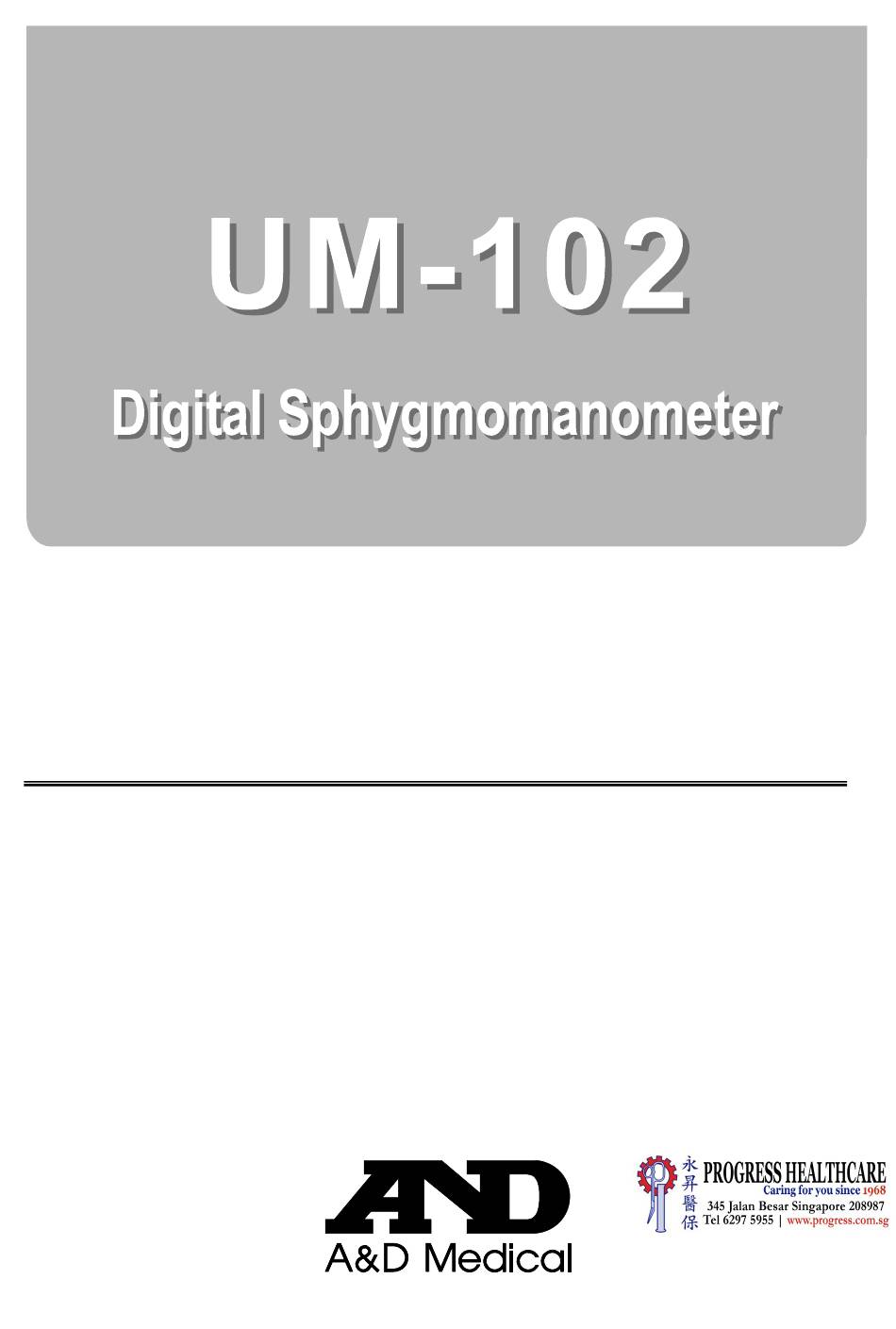

- Page 1 Instruction Manual Original Manuel d’instructions Traduction Manual de instrucciones Traducción Manuale di Istruzioni Traduzione 使用手冊 翻譯 1WMPD4003117...
-
Page 2: Table Of Contents
UM-102 Digital Sphygmomanometer Instruction Manual Contents Dear Customers ................2 Preliminary Remarks .................3 Notes for Proper Use.................4 Parts Identification ................7 Symbols.....................8 Using the Monitor ................9 Measurements.................13 Useful Features ................14 Troubleshooting................15 Maintenance ..................15 Technical Data .................16 English... -
Page 3: Dear Customers
1. Dear Customers Congratulations on purchasing a state-of-the-art A&D sphygmomanometer, one of the most advanced monitors available on the market today. Designed for ease of use and accuracy. We recommend that you read through this manual carefully before using this device for the first time. The device is designed for use on adults only, Applicable Patient: not newborns or infants. -
Page 4: Preliminary Remarks
2. Preliminary Remarks Compliance This device conforms to the European Directive 93/42 EEC for Medical Products. This is made evident by the mark of conformity. (0123: The reference number to the involved notified body) Definitions Systolic Blood Pressure Diastolic Blood Pressure Pulse Exhaust This means “releasing the cuff air as soon as possible”. -
Page 5: Notes For Proper Use
Blood Pressure Measurement Do not use the device on patients using heart-lung support equipment. Do not use the device on patients in a critical condition or on ICU (intensive care unit) patients. The healthcare provider should stop using the device if there is an abnormality, such as a patient feeling excessive arm pain, and remove the cuff to protect the patient. - Page 6 Before Use Make sure that the device works correctly and that measurement values are accurate. Make sure that the cuff and air hoses are properly connected. Check and maintain the cleanliness of the parts in direct contact with the patient. Avoid placing the device near a strong magnetic field or static electricity.
- Page 7 Periodic Maintenance This device is a precision instrument and contains electronic circuitry. Please check all functions periodically. Contact your nearest A&D authorized dealer for official calibration/check-up, according to your local regulations. Used equipment, parts and batteries are not treated as ordinary household waste, and must be disposed of according to the applicable local regulations.
-
Page 8: Parts Identification
4. Parts Identification Main Body and Accessories Cuff connector Pressure bar display Numerical display MARK button Cuff button Air hose Exhaust valve Rubber bulb 1.5V Batteries x 2 Instruction manual (LR6 or AA) Function button Turns on or off the device. During measurement ... -
Page 9: Symbols
5. Symbols Symbols Function / Meaning Recommended Action Standby and Turn the device on Pressure value holding and MARK lifetime counter Battery installation guide Serial number Date of manufacture Type BF: Device, cuff and tubing are designed to provide special protection against electrical shocks. -
Page 10: Using The Monitor
6. Using the Monitor Installing / Changing the Batteries 1. Remove the battery cover. 2. Insert a new set of batteries into the battery compartment as shown. Make sure the polarities (+) and (-) are correct. Use only LR6, AA or equivalent batteries. - Page 11 Connecting the Connector and Plug for the Cuff (Sold separately) 1. Insert the air hose socket into the cuff connector . 2. Insert the air hose plug to the air hose of the cuff. Air hose plug Air hose (cuff) 3.
- Page 12 Selecting the Proper Cuff Using the correct cuff size is important for accurate readings. If the cuff is not the proper size, the reading may yield an incorrect blood pressure value. The INDEX and RANGE markings on the cuff will indicate that you are using the proper cuff or not.
- Page 13 Symbols that are printed on the cuff Symbols Function / Meaning ▲ INDEX Proper fit range Artery position mark ARTERY ▼ No natural rubber LATEX FREE Instructions to the patient THIS SIDE TO PATIENT Catalog number Lot number Cuff size 22 cm to 32 cm ADULT Cuff size 41 cm to 50 cm Cuff size 31 cm to 45 cm...
-
Page 14: Measurements
7. Measurements 1 . Place the cuff on the arm (preferably the left arm). Keep the patient still during measurement. At heart level 2. Press the button. When the button is pressed, all of the display symbols will appear for about one second. When starts flashing, the device is ready for measurement. -
Page 15: Useful Features
7. Press the button again to turn off the power. Note: Model UM-102 has an automatic power-off function. Allow at least three minutes between measurements on the same person. 8. Useful Features Measurement with MARK Button... -
Page 16: Troubleshooting
9. Troubleshooting Problem Possible Reason Recommended Action Nothing appears Batteries are empty. Replace all batteries with new ones. in the display, Reinstall the batteries with the Battery polarities even when the negative and positive ends matching are not in the correct power is turned those indicated in the battery position. -
Page 17: Technical Data
Use the following medicine to disinfect the main body and cuff. Ethanol (70%) Isopropanol (70%) Chlorhexidine Gluconate Solution (0.5%) Benzalkonium Chloride Solution (0.05%) Sodium Hypochlorite (0.05%) 11. Technical Data Model UM-102 Measurement method Stethoscopy with stethoscope Measurement range Numerical display Pressure: 0 - 300 mmHg Pulse:... - Page 18 CUF-KW-SA Small adult cuff 16 cm to 24 cm CUF-KW-SS SS cuff 12 cm to 17 cm Rubber bulb unit Catalog Number UM-102-10 Connector and Plugs for cuff replacement Catalog Number UM-102-11 Mobile stand Catalog Number UM-ST001 Note: Specifications are subject to change without prior notice.
- Page 19 Medical Electrical Equipment needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the following. Portable and mobile RF communication equipment (e.g. cell phones) can affect Medical Electrical Equipment. The use of accessories and cables other than those specified may result in increased emissions or decreased immunity of the unit.
- Page 20 Guidance and manufacturer’s declaration – electromagnetic immunity The A&D unit is intended for use in the electromagnetic environment specified below. The customer or the user of the A&D unit should assure that it is used in such an environment. Immunity IEC 60601 Compliance Electromagnetic environment –...
- Page 21 Guidance and manufacturer’s declaration – electromagnetic immunity The A&D unit is intended for use in the electromagnetic environment specified below. The customer or the user of the A&D unit should assure that it is used in such an environment. Immunity IEC 60601 Compliance level Electromagnetic test...
- Page 22 1-243 Asahi, Kitamoto-shi, Saitama 364-8585 JAPAN Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131 U.S.A.
