AD-4412-CW
Weighing Indicator
CONNECTION SETTING EXAMPLE
1WMPD4004155

Advertisement

Table of Contents
loading

Related Manuals for A&D AD-4412-CW

Summary of Contents for A&D AD-4412-CW

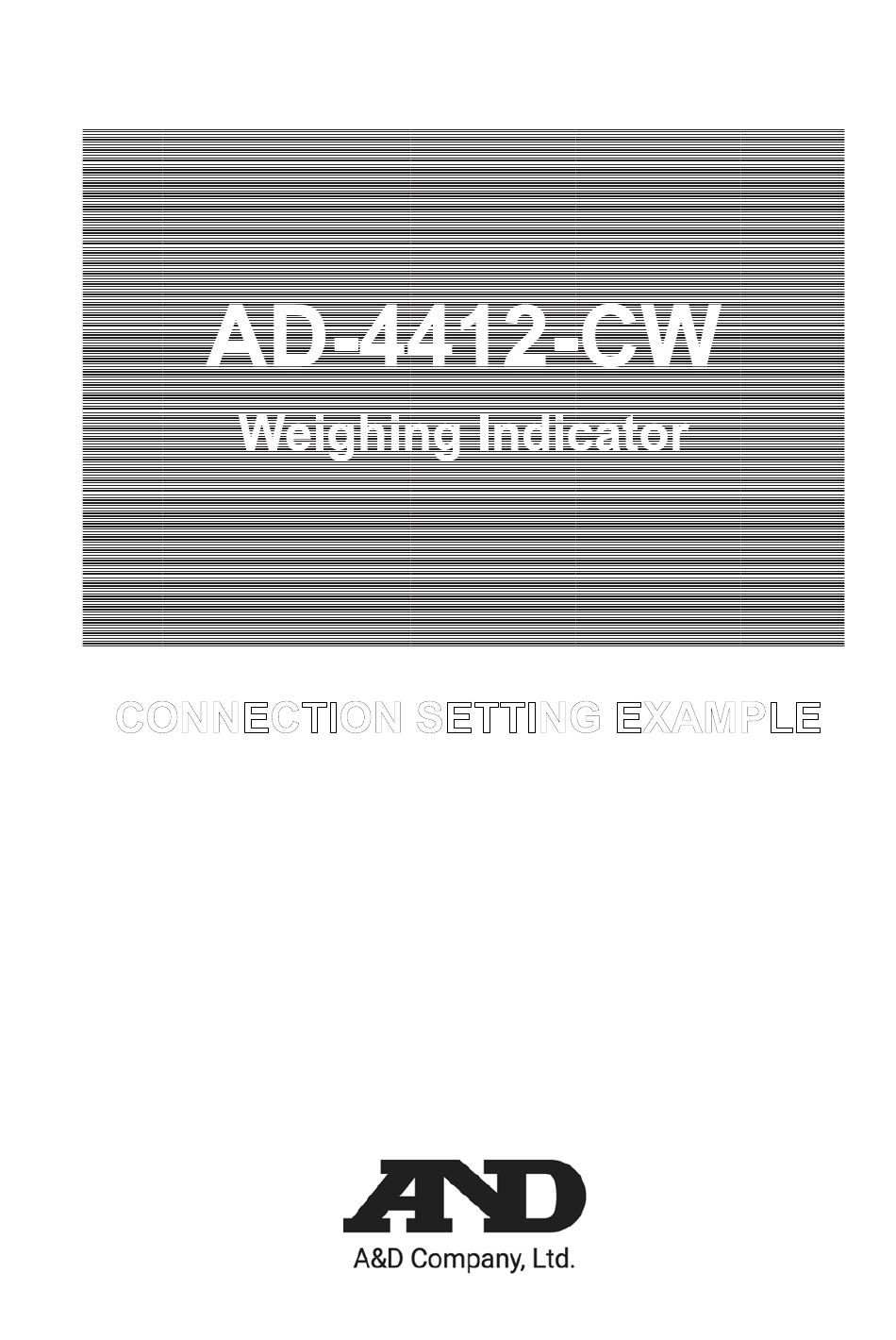

  • Page 1 AD-4412-CW Weighing Indicator CONNECTION SETTING EXAMPLE 1WMPD4004155...
  • Page 2 © 2020 A&D Company, Limited. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company, Limited. The contents of this manual and the specifications of the instrument covered by this manual are subject to change for improvement without notice.

  • Page 3: Setting Flow

    This section shows descriptions from connection to basic settings for using the AD-4412-CW as a weight checker. Setting flow Instruction manual “ ” shows the instruction manual section referenced.. Refer to "3. Installing the Connecting to the indicator Weighing Indicator" for details of connection.

  • Page 4: Connecting To The Indicator

    “Connection of Photo eye Sensor” of “11. Interface” in the instruction manual.) I/F terminal Load cell terminal Power terminal Control I/O Fig. 1 Rear panel AD-4412-CW 6-wire shielded load cell cable Load cell • EXC+ Positive power supply to load cell...
  • Page 5 Warning Ground the indicator to avoid an electric shock or operation error. If the indicator is not grounded, it may cause an electric shock or malfunction due to discharge of static electricity. Live terminal Neutral terminal 100-240 V~, 50Hz or 60Hz Noiseless stable single phase power source PE terminal Ground...

  • Page 6: Connecting The External Equipment

    1.2. Connecting the external equipment This section describes the specifications and connection examples for control I/O. Control I/O specifications Control I/O has DO11 points, DI11 points, and the following specifications. Table 1 Control I/O Interface specifications Input circuit (DI) method Non-voltage input/open collector drive Input terminal open valtage 7 to 11 V...
  • Page 7 Fig. 5 Terminal numbers of control I/O connector Table 2 Correspondence table of control I/O and DI/DO Input terminal DI number Output terminal DO number DI 1 DO 1 DI 2 DO 2 DI 3 DO 3 DI 4 DO 4 DI 5 DO 5 DI 6...
  • Page 8 Installing the OP-05 Parallel I/O to optional slot 1 allows use of DI12 to DI27 and DO12 to DO27. Installing the OP-05 Parallel I/O to optional slot 2 allows use of DI28 to DI43 and DO28 to DO43. (Refer to “11.6. OP - 05 Parallel Input/Output” in the instruction manual for details.) OP-05 Screw hole When installing the OP-05 to the...

  • Page 9: Connection Example

    The following shows a general connection example for the indicator. The following settings are described based on this example. Tower light Conveyer Photo eye sensor Load cell AD-4412-CW Relay Fig. 8 Connection example Othrer specifications - Scale weighing capacity: 1000 g - Conveyer length...
  • Page 10 2. Setting the indicator By changing the factory settings for the indicator, it can be changed to have the appropriate settings for your scale. The parameters set are maintained in the memory even after shutting down the power of the indicator until the indicator is initialized or those settings are changed.

  • Page 11: Weighing Capacity

    2.2. Weighing capacity 1. Touch the Setting key on the weighing screen to display the setting screen. Fig. 11 Setting screen 2. Touch the Weighing button on the “Balance” tab and enter an appropriate capacity (rated capacity) for your load cell into the field “Capacity”...

  • Page 12: Adjusting The Weight

    2.3. Adjusting the weight 1. Touch the Setting key on the weighing screen to display the setting screen. Fig. 13 Setting screen 2. Touch the Cal button on the “Balance” tab to display the weight adjustment screen. Fig. 14 Weight adjustment screen AD4412-CW...
  • Page 13 3. Touch the Adjust Cal button to calibrate the zero point. Touch the OK button after confirming that nothing is placed on the load cell. To proceed to span calibration in the next step without calibrating the zero point, touch the Cancel button Fig.
  • Page 14 2.4. Conveyer length By changing the factory settings for the indicator connected to the weight checker, settings can be changed to those appropriate for your weight checker. The parameters set are maintained in the memory even after shutting down the power of the indicator until the indicator is initialized or those settings are changed.
  • Page 15 3. Set the length for your conveyer in the field “Conveyer Length” on the“Main Unit 1” tab. (The indicator must be restarted to enable those settings.) Fig. 20 Setting the conveyer length AD4412-CW...
  • Page 16 2.5. Photo eye sensor Setting the photo eye sensor 1. After connecting the photo eye sensor to the I/F terminal, touch the Setting key on weighing screen to display the setting screen. Touch the Main Unit button on “System 1” tab to display main unit setting screen. Fig.
  • Page 17 3. Settings for products When using the indicator as weight checker, it requires settings according to the type of products to be conveyed in order to detect and reject properly. The parameters set are maintained in the memory even after shutting down the power of the indicator until the indicator is initialized or those settings are changed.
  • Page 18 3. Touch the Detect Parameter button on the “Detect Function” tab to display the weighing parameter setting screen. Fig. 25 Detect parameter setting screen 4. Enter an appropriate speed for your belt conveyor in the field “Speed” on the “Weighing Parameter Setting 1” tab. (The speed for the belt conveyor must be calibrated beforehand.) Fig.

  • Page 19: Product Length

    3.2. Product length Display the product edit screen in the same way as “3.1. Speed” described previously, and then touch the Detect Parameter button on the “Detect Function” tab to display the weighing parameter setting screen. Fig. 27 Detect parameter setting screen Set an appropriate length for products to be conveyed in the field “Product Length”...
  • Page 20 3.3. Detect basis Display the product edit screen in the same way as “3.1. Speed” described previously, and then touch the Detect Basis button on “Detect Function” tab to display the detect basis setting screen. Fig. 29 Detect basis setting screen By setting “Target”, “Hi Limit”...
  • Page 21 (DO number is a number set by yourself at connection.) Tower light Conveyer Photo eye sensor Load cell AD-4412-CW Relay Fig. 31 Connection example Setting the DO 1. Touch the Product key on the weighing screen to display the product screen. Then, touch the Edit key on the product screen to display the product edit screen.
  • Page 22 2. Touch the DO button on the “Detect Function” tab to display the DO setting screen. Fig. 33 DO selection screen 3. Touch the DO Map button to display the DO map screen. Fig. 34 DO seting screen 4. The example is when “○” is placed in the field “Belt Running” for “DO1” to operate the belt conveyer while weighing. “○”is placed in the field “HiHi”...
  • Page 23 5. Return to the DO setting screen and touch the AD-4412-CW button to display the DO operation setting screen. Fig. 36 DO setting screen 6. In this example, DO does not need to be set for the belt conveyor and tower light. However, when using a flipper, etc, set the delay time as “the time until the weighing product reaches the rejecter after detecting it at the end of the...
  • Page 24 3.5. For additional usage This application note shows descriptions from connecting the indicator to basic setting. Since those descriptions are only for basic connection methods and functions, the indicator can also be practially used by adding functions or options not described in this document, such as providing feedback to the packing machine or charging machine (“9.10.
