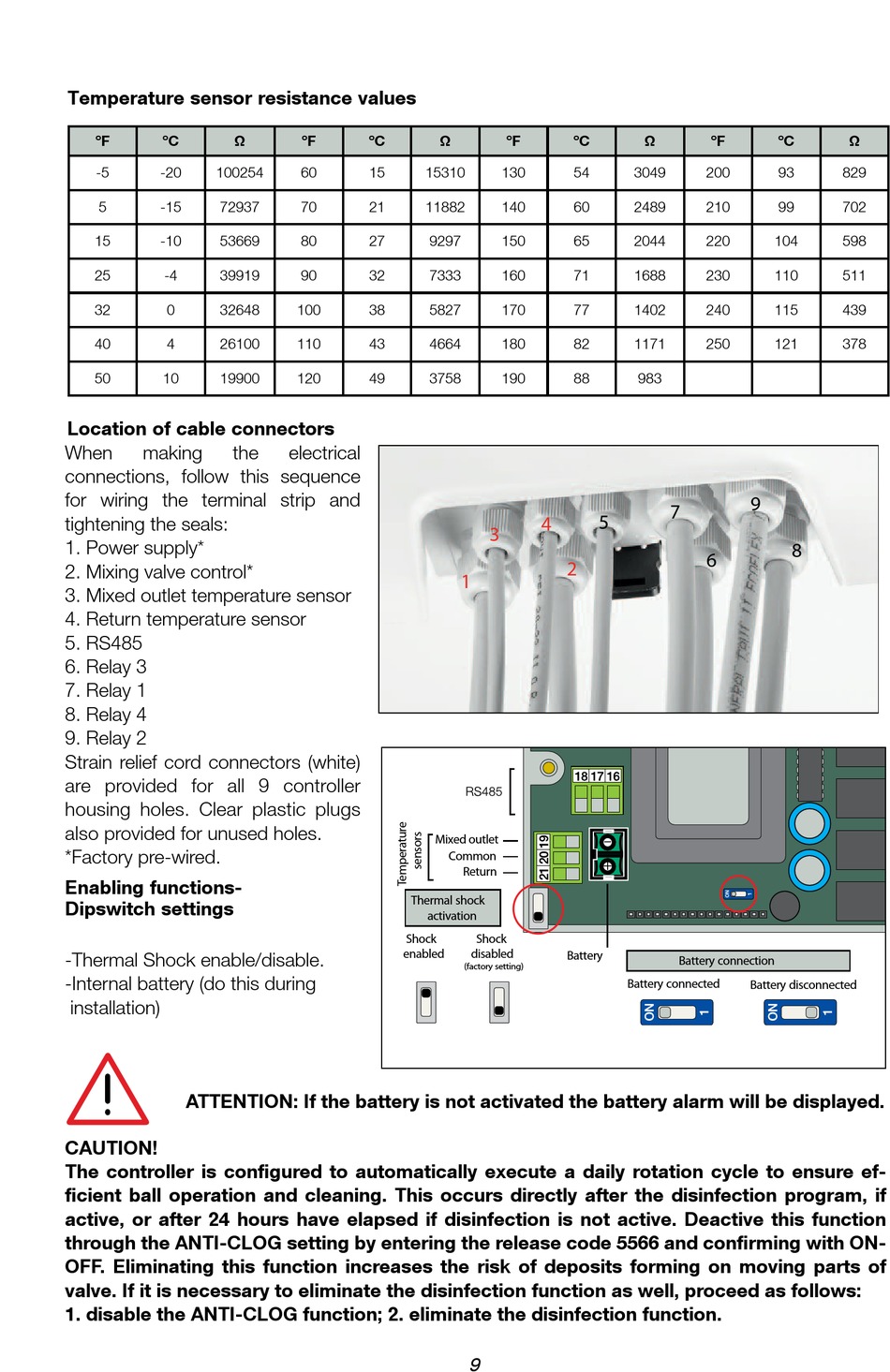

Temperature sensor resistance values

ºF ºC Ω
-5 -20 100254
5 -15 72937
15 -10 53669
25 -4 39919
32 0 32648
40 4 26100
50 10 19900
Location of cable connectors
When making the
connections, follow this sequence
for wiring the terminal strip and
tightening the seals:
1. Power supply*
2. Mixing valve control*
3. Mixed outlet temperature sensor
4. Return temperature sensor
5. RS485
6. Relay 3
7. Relay 1
8. Relay 4
9. Relay 2
Strain relief cord connectors (white)
are provided for all 9 controller
housing holes. Clear plastic plugs
also provided for unused holes.
*Factory pre-wired.
Enabling functions-
Dipswitch settings
-Thermal Shock enable/disable.
-Internal battery (do this during
installation)
ATTENTION: If the battery is not activated the battery alarm will be displayed.
CAUTION!
The controller is configured to automatically execute a daily rotation cycle to ensure ef-
ficient ball operation and cleaning. This occurs directly after the disinfection program, if
active, or after 24 hours have elapsed if disinfection is not active. Deactive this function
through the ANTI-CLOG setting by entering the release code 5566 and confirming with ON-
OFF. Eliminating this function increases the risk of deposits forming on moving parts of
valve. If it is necessary to eliminate the disinfection function as well, proceed as follows:
1. disable the ANTI-CLOG function; 2. eliminate the disinfection function.
ºF ºC Ω
60 15 15310
70 21 11882
80 27 9297
90 32 7333
100 38 5827
110 43 4664
120 49 3758
electrical
1
hoc k
Mixed outlet
on
Common
ock disabled
Return
factory setting)
Thermal shock
activation
Shock
enabled
(factory setting)
9
ºF ºC Ω
130 54 3049
140 60 2489
150 65 2044
160 71 1688
170 77 1402
180 82 1171
190 88 983
To remove the electrical wiring base, turn it round
5
4
3
2
–
+
B attery
B attery connected
Shock
disabled
Battery
Battery connected
ºF ºC Ω
200 93 829
210 99 702
220 104 598
230 110 511
240 115 439
250 121 378
9
7
8
6
Mixing valve fuse
1 A - 250 V delayed
B attery c onnec tion
B attery disconnec
Battery connection
Battery disconnected
Appliance fuse
80 mA - 250 V d
